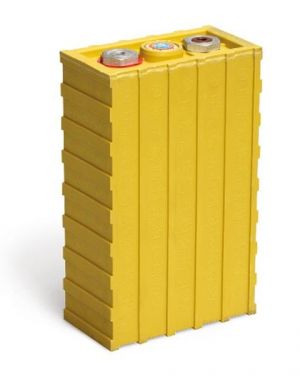

Specifactions of 100ah Winston Batteries
Model | FB-LYP100AHA-B | |
Nominal Capacity | 100Ah | |
Dimensions(L*W*H) | 179×62×218mm | |
Operating Voltage | Charge | 4.0V |
Discharge | 2.8V | |
Internal Resistance | ≤0.45mΩ | |
Max. Discharge Current | Constant Current | ≤3CA |
Impulse Current | ≤10CA | |
Standard Charge/Discharge Current | 50A(0.5CA) | |
Cycle Life | (80%DOD) | ≥5000times |
(70%DOD) | ≥7000times | |
Temperature Durability Of Case | ≤200℃ | |
Operating Temperature | Charge | -45℃~85℃ |
Discharge | ||
Storage Humidity | ≤75%RH | |
Self-discharge Rate | ≤1% monthly | |
Weight | 3.6kg±100g | |
