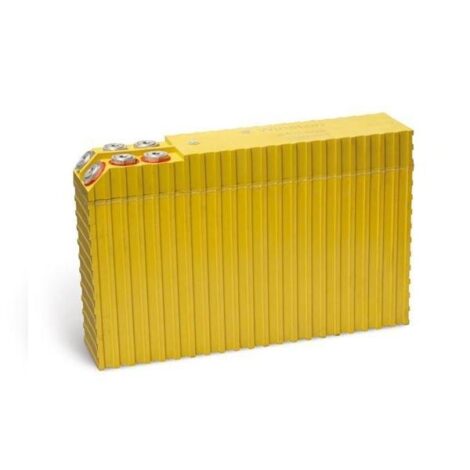

Specifactions of 1000ah Winston Batteries
Model | FB-LYP1000AHC | |
Nominal Capacity | 1000Ah | |

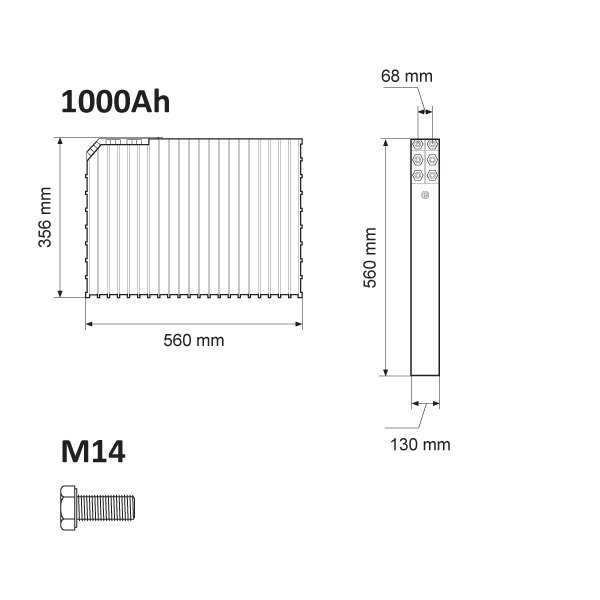

Dimensions(L*W*H) | 560*130*356mm | |
Operating Voltage | Charge | 3.8V |
Discharge | 2.8V | |
Internal Resistance | ≤0.3mΩ | |
Max. Discharge Current | Constant Current | ≤1CA |
Impulse Current | ≤10CA | |
Max. Charge Current | 1000A(1CA) | |
Standard Charge/Discharge Current | 500A(0.5CA) | |
Cycle Life | (80%DOD) | ≥5000times |
(70%DOD) | ≥7000times | |
Temperature Durability Of Case | ≤200℃ | |
Operating Temperature | Charge | -45℃~85℃ |
Discharge | ||
Storage Humidity | ≤75%RH | |
Self-discharge Rate | ≤1% monthly | |
Weight | 38kg±50g | |
