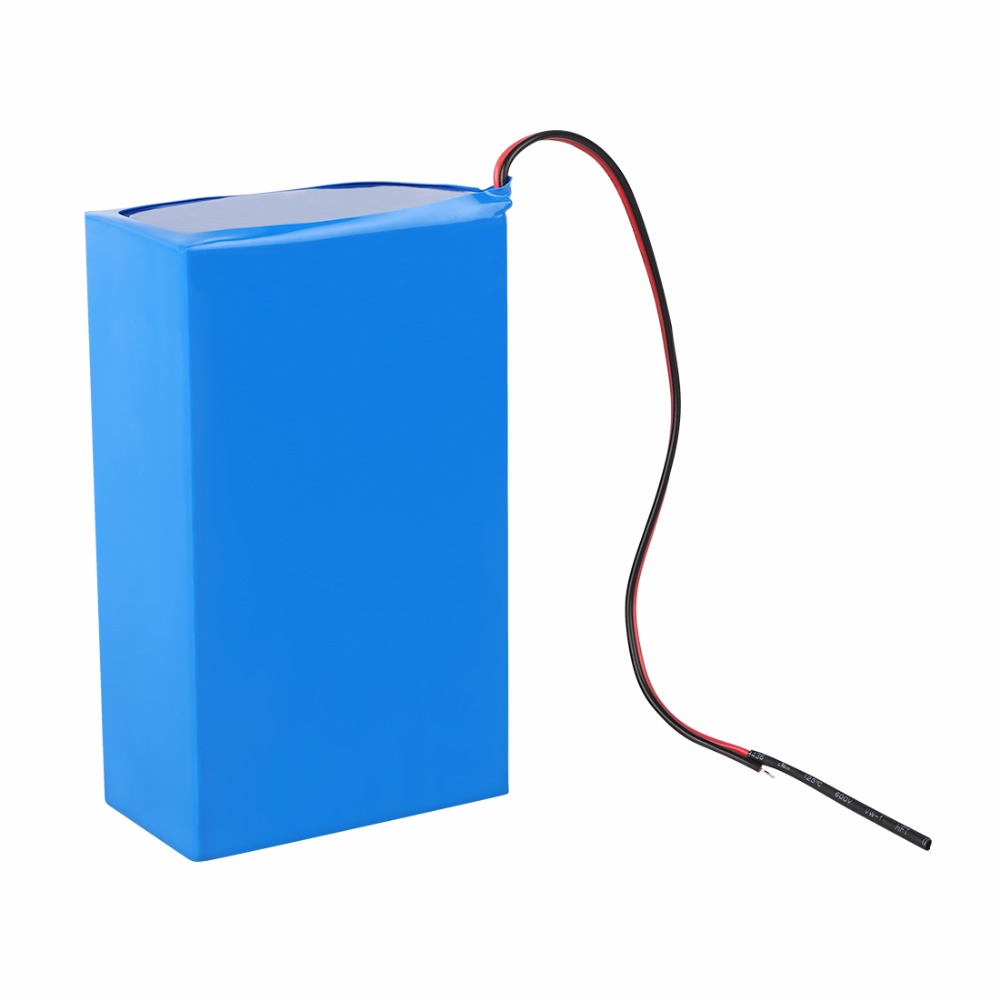

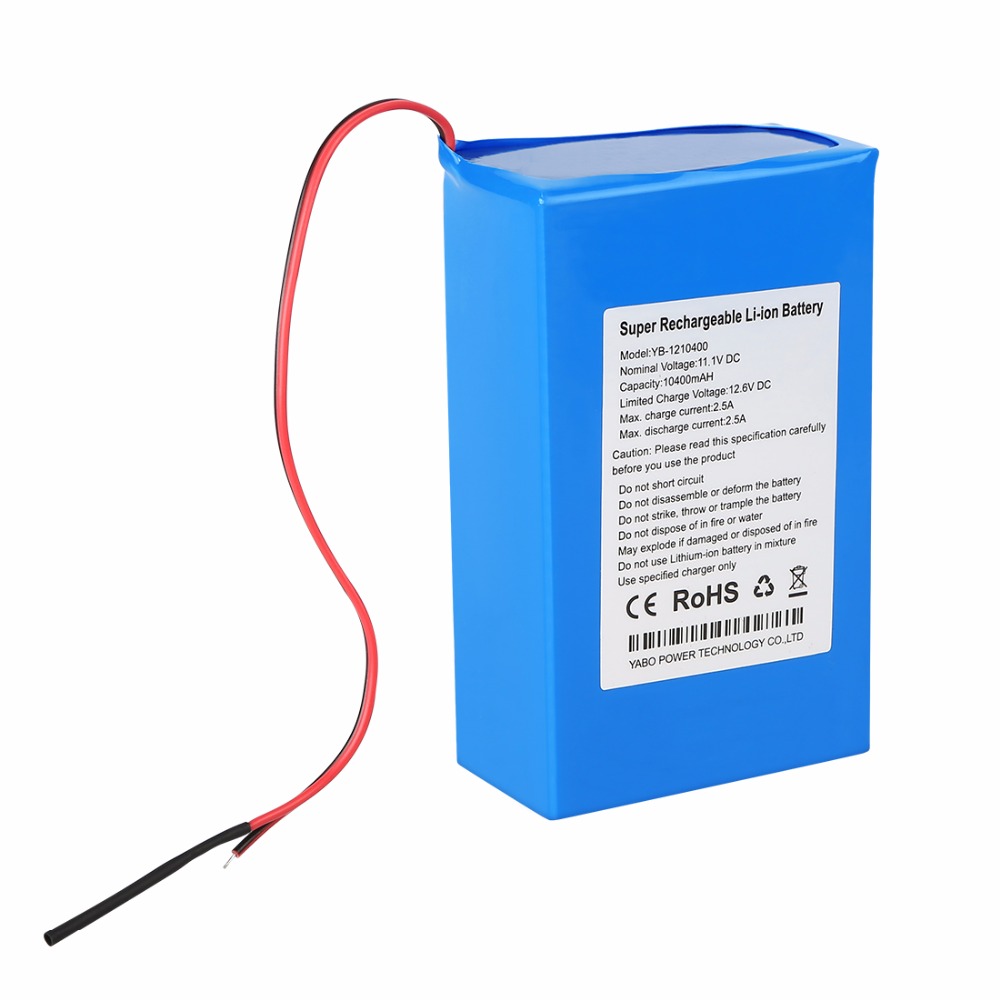

Li Ion Battery Pack With PCM For Led Light

Quick Details
Place of Origin:Guangdong, China
Brand Name:OEM
Model Number:YB12011000
Nominal Capacity:11000mah
Application:LED panel, LED light, Solar system, IP camera, CCTV Camera, Amplifier
Weight:675g
Type:Li-Ion, Li-ion battery with PCM
Model:YB12011000
Nominal voltage:12 Volt
Typical capacity:11000mah
Input:12.6v
Output:12.6v-9v
Max continuous charge/discharge current:3A
Protection:12VPCM,over-charge/discharge protection, over-heat protection
Operating temperature:-20 °C to 60 °C
Charge temperature:-0 °C to 45 °C
Composed Type:Series and parallel
Components:18650 battery
Voltage:11.1v
Size:55*70*101mm
Share:
Description
Specifications
Reviews
Description
Product Description
model YB12011000
Type Li-ion battery with PCM
Nominal voltage 11.1 volt
Typical capacity 11000mah
Input 12.6 v
Out-put 12.6-9V
Max continuous charge/discharge current 3A(adjustable)
Charger Included 2A charger:US plug/EU plug/UK plug
Connectors 5.5*2.1mm DC jack+5.5*2.1mm DC plug
Protection 12VPCM,over-charge/discharge protection, over-heat protection
Recharge cycle More than 500 times
LED  Indicator Available
ON/OFF Switch Available
Key word Battery for CCTV camera and LED strip
Standard Charge Time Around 6H
Dimension  55*70*101mm
Weight(approximate) 675g
Operating temperature -20 °C to 60 °C
Charge temperature -0 °C to 45 °C
Storage temperature -20 °C to 45 °C
Operating humidity 5% to 90%,non-condensing





18650 li ion battery pack 3s6p with PCM for led light
