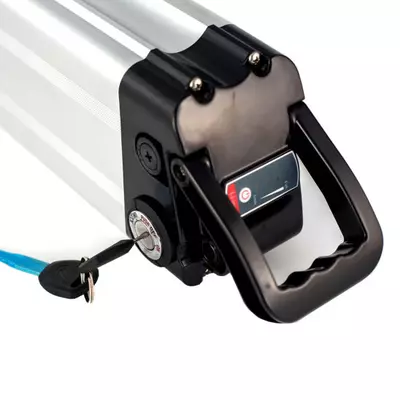

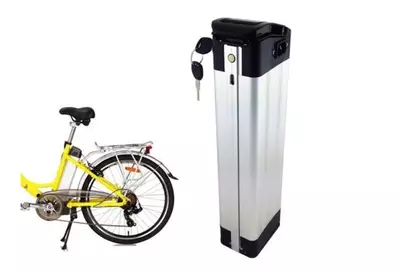

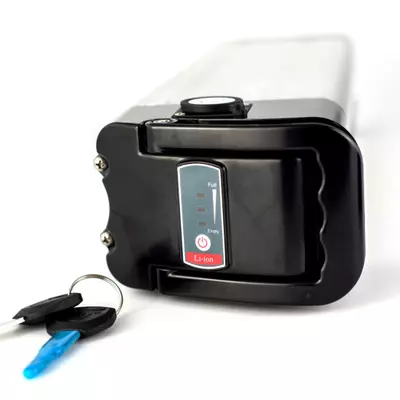

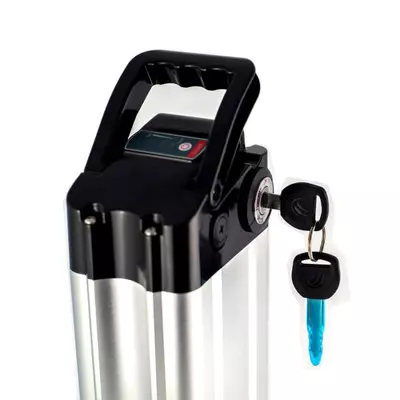

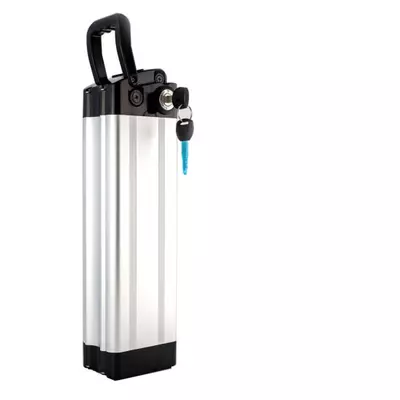

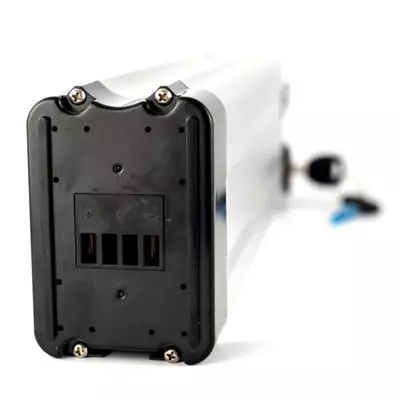

24V 36V 48V 10ah electric bike lithium battery silver fish type with rechargeable battery
Specifications
Specifications
| Battery Type | Battey pack for E-bike | ||||
| Battery Pack Model | 36V12Ah | 48V10Ah | 36V15Ah | 48V12Ah | 48V20Ah |
| Outer Packing Material | PVC, Plastic shell, Plastic and Aluminum Shell, Steel Sheel | ||||
| Nominal Voltage | 36V | 48V | 36V | 48V | 48V |
| Rated Capacity | 12Ah | 10Ah | 15Ah | 12Ah | 20AH |
| Max. Charge Voltage | 42V | 54.6V | 42V | 54.6V | 54.6V |
| Normal Charge Current | 2A | 2A | 2-3A | 2A | 2A |
| Cut-Off Discharge Voltage | 30V | 30V | 30V | 39V | 39V |
| Max.ConstantDischarge Current | 20-25A | 20-25A | 20-25A | 20-25A | 20-25A |
| Max.Discharge Current (pulse) | 65A | 65A | 65A | 65A | 65A |
| Charging Model | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV |
| Cycle Life(80%DOD) | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500Cycles |
| Charge Temperature | 0-45°C | 0-45°C | 0-45°C | 0-45°C | 0-45°C |
| Discharge Temperature | -20-55°C | -20-55°C | -20-55°C | -20-55°C | -20-55°C |
| Motor Range | 36V350-500W | 48V350-1000W | 36V350-500W | 48V350-1000W | 48V750-1000W |
Advantages:
1. Green product with high quality
2. Long standby time
3. One year warranty
4. Excellent safety performance
5. Excellent storage performace and low self-discharge rate
6. Short circuit testing passed
7. Overcharge testing passed
8. Over discharge testing passed
9.OEM & ODM service
