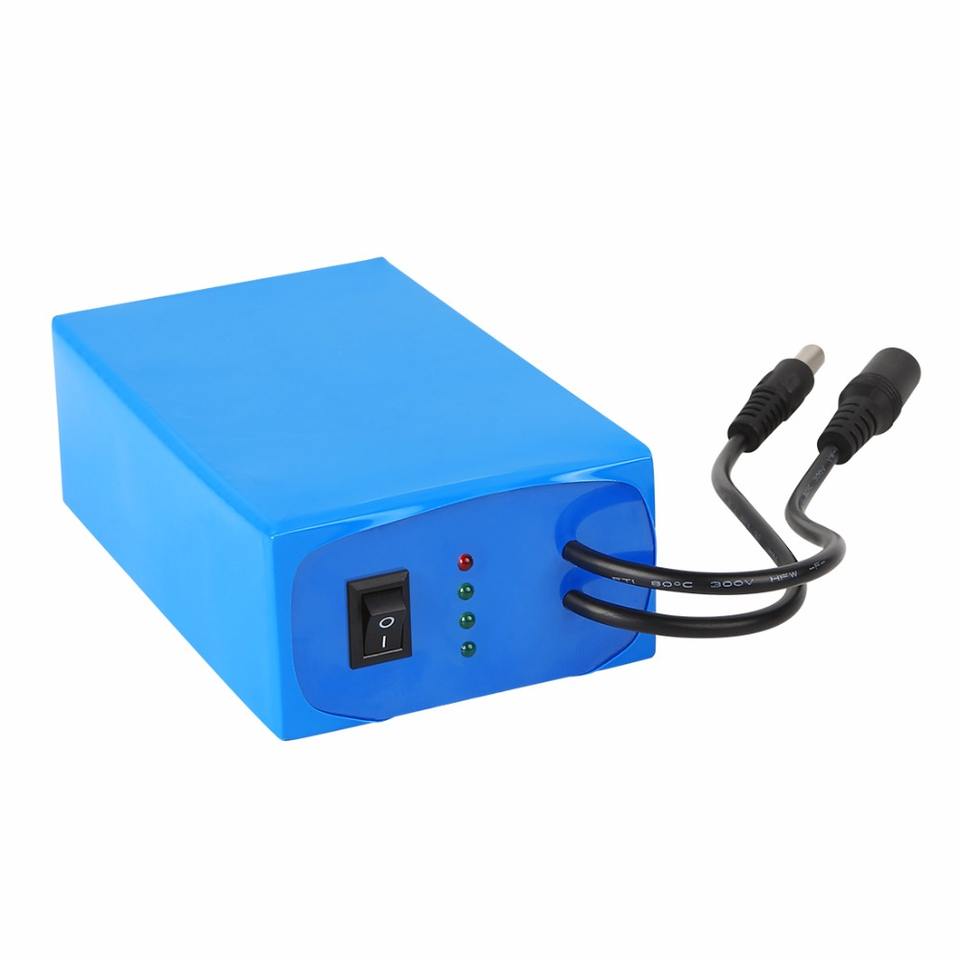

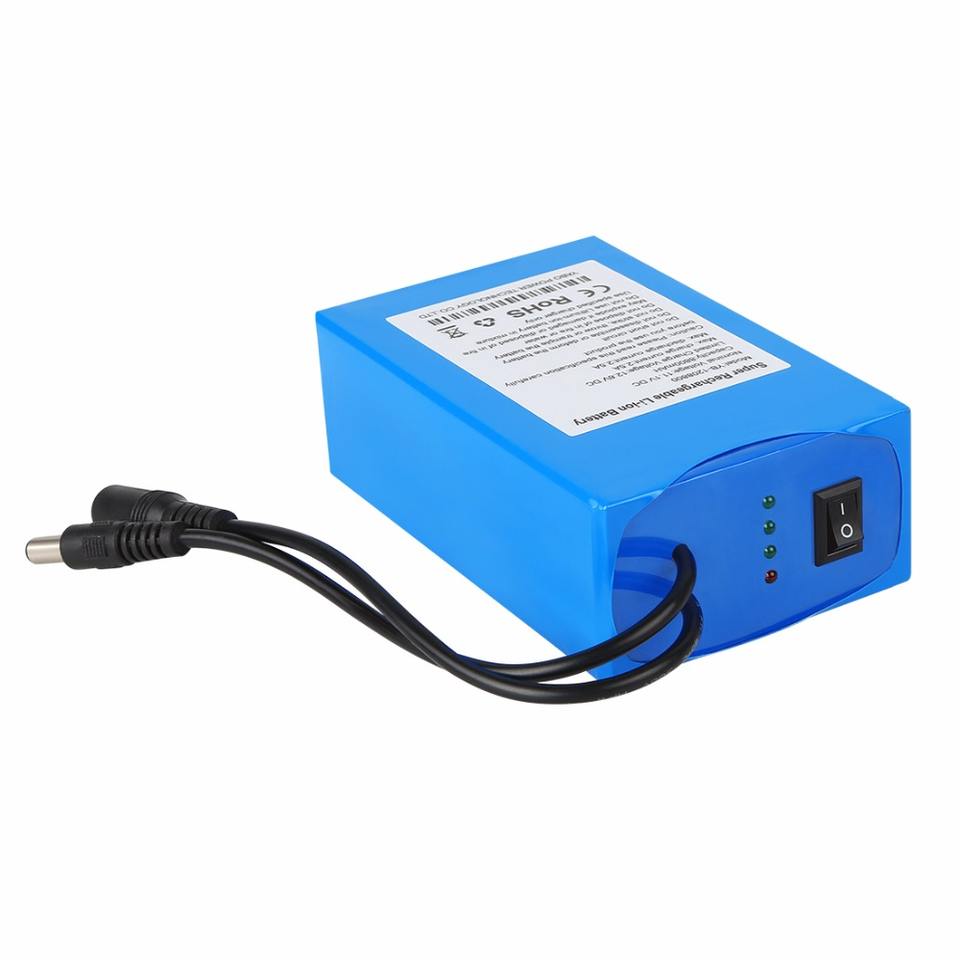

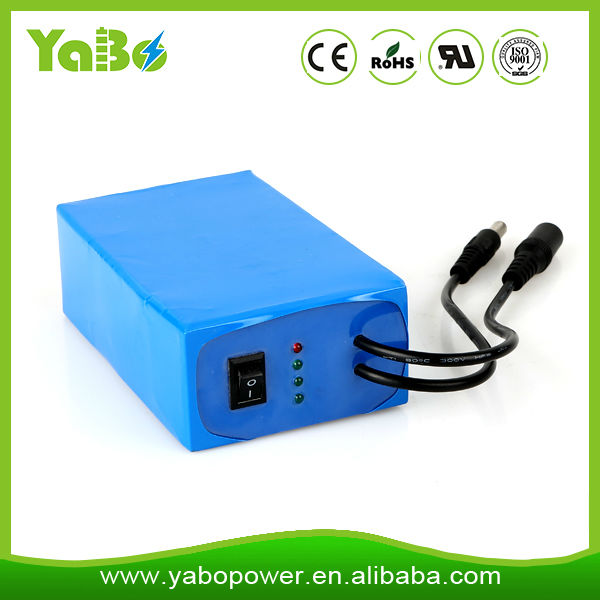

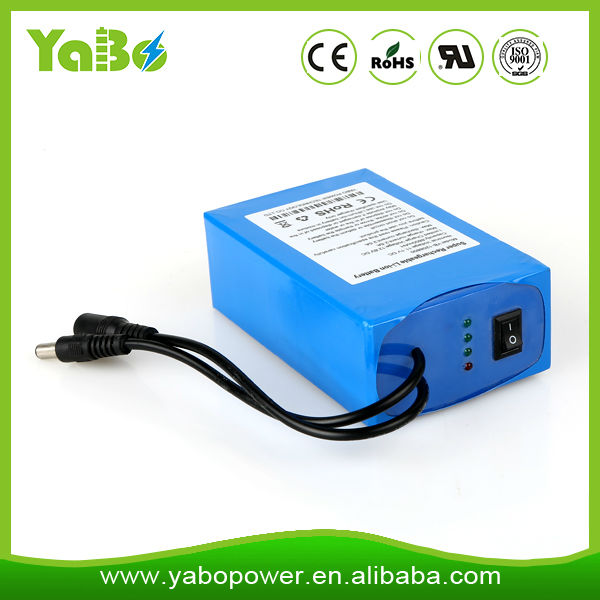

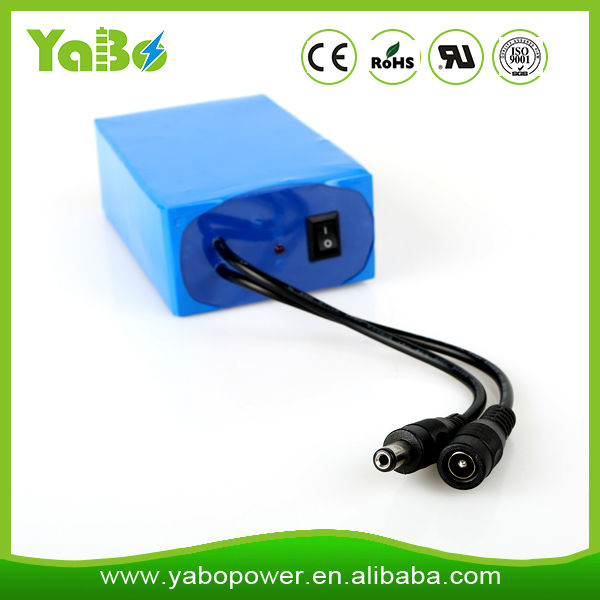

12v Li-ion Battery Pack With BMS Protection

Quick Details
Application:LED pane1
Brand Name:YABO
Model Number:YB12030000BP
Nominal Capacity:30ah
Place of Origin:Guangdong, China
Weight:1940g
Type:Li-Ion
Composed Type:Series and parallel
Components:18650 battery
Size:59*70*280mm
Voltage:11.1v
Colour:blue
Recharge cycle:more than 500 times
Max charge/discharge:3A or 6A or other
Warranty:1 year
Input voltage:12.6v
Output voltage:12v
Certification:CE, FCC,ROHS
Product Description
model YB12030000BP
type Li-ion battery with PCM
Nominal voltage 11.1 volt
Typical capacity 30000mah
Input 12.6 v
Out-put 12.6-9V
Max continuous charge/discharge current 6A(adjustable)
Charger Included 4A charger:US plug/EU plug/UK plug
Connectors 5.5*2.1mm DC jack+5.5*2.1mm DC plug
Protection 12VPCM,over-charge/discharge protection, over-heat protection
Recharge cycle More than 500 times
LED Indicator Available
ON/OFF Switch Available
Key word 12v battery with charger
Standard Charge Time Around 7H
Dimension 59*70*280mm
Weight(approximate) 1940g
Operating temperature -20 °C to 60 °C
Charge temperature -0 °C to 45 °C
Storage temperature -20 °C to 45 °C
Operating humidity 5% to 90%,non-condensing
