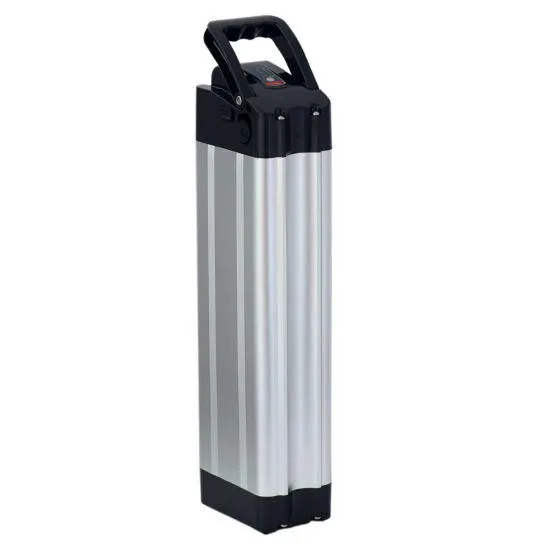

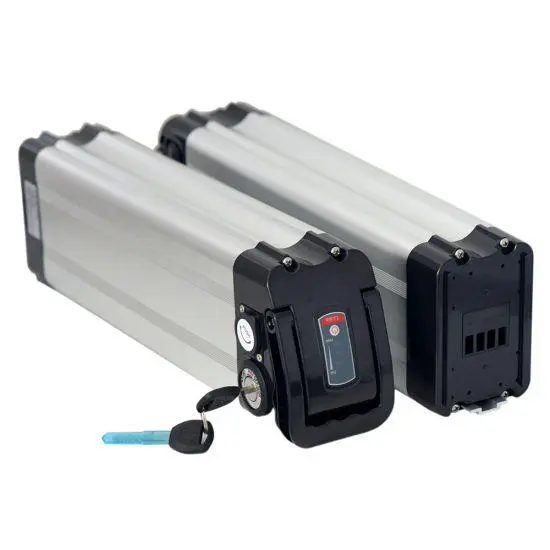

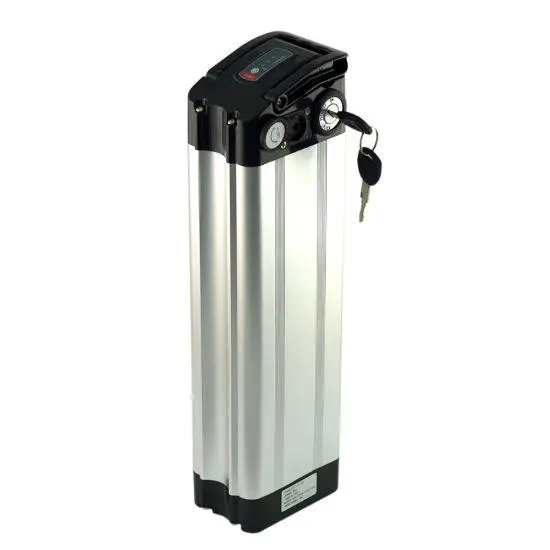

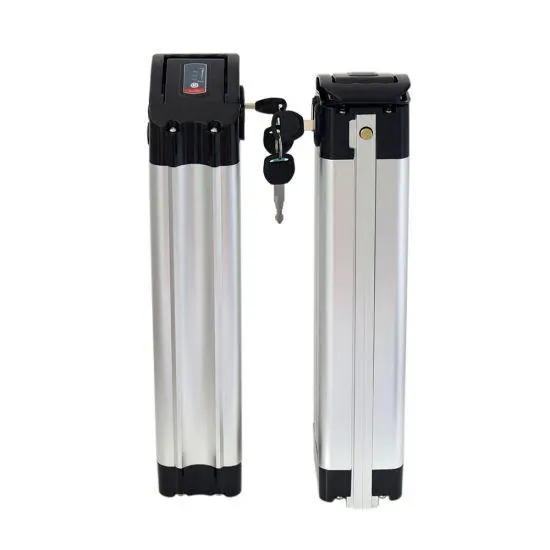

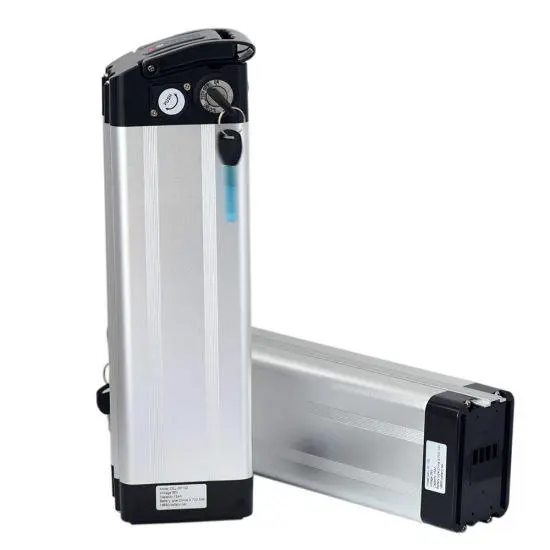

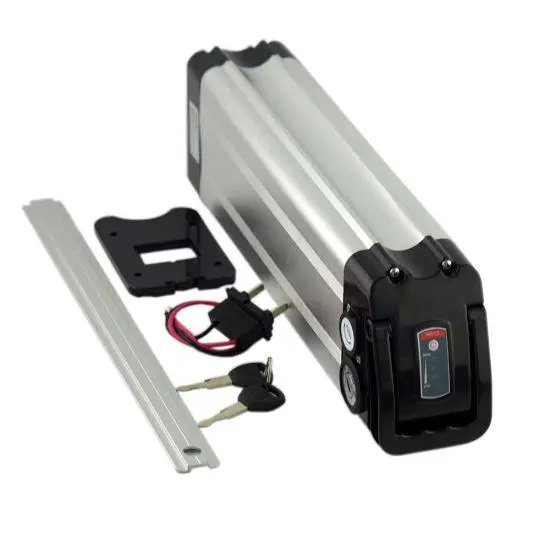

Silver Fish 36V 15ah Electric Vehicle Pack Battery for 1000W Ebike

Min. Order:5 Pieces

Port:Shenzhen, China

Production Capacity:5000pieces Per Week

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash

Model NO.:FB-3615 electric bicycle battery

Trademark:Delongtop

Specification:size: 107.31*75.38*285mm, weight 3.5kg

Origin:China

HS Code:8506500000

Type:Battery

Color:Silver or Black

Warranty:One Year

Case Material:Aluminium

Usage:Battery for Electric Bike

Transport Package:EPE Pearl Cotton and Thick Cardboard Cartons

Customized Electric Vehicle Battery Pack for 1000W Ebike

Battery Model	DL-3615
Nominal Capacity (AH)	15AH
Nominal Voltage (V)	36v
Source Resistance (mΩ)	< 40
Cell Specification	3.7V 2500mAh
Cell Combination	10-series 6-parallel
Cell type	18650
Cell Quantity (parallel*series)	104
Discharge Cutoff Voltage (V)	41+/-1V
Charge Cutoff Voltage (V)	28V
Rated Discharge Current (A)	20A
Instantaneous Maximum Discharge Current (A)	40A
Maximum Continuous Discharge Current (A)	30A
Maximum Continuous Charge Current (A)	5A
Charge Mode	CC/CV
Standard Charge Current (A)	2A
Charge Time under Standard Charge Current	10
Fast Charge Current (A)	5A
Charge Time under Fast Charge Current	4
Charge Temperature Range	-20 – 60 °C
Discharge Temperature Range	-20 – 60 °C
Battery Size	95.1972.78285mm 107.3175.38285mm(Handle unfold)
Battery Net Weight	3.5kgs
Battery Gross Weight	4.5kgs
