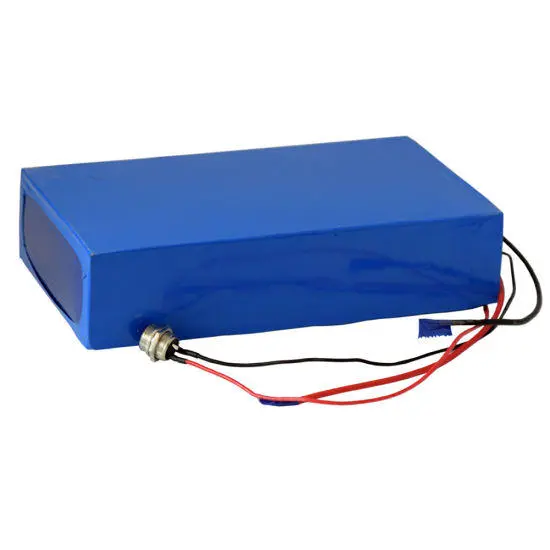

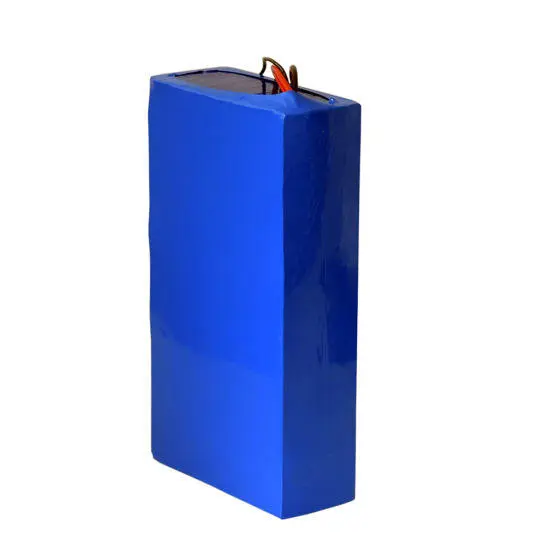

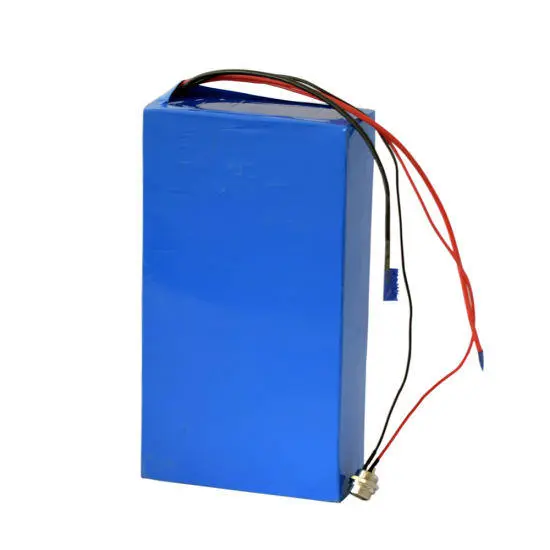

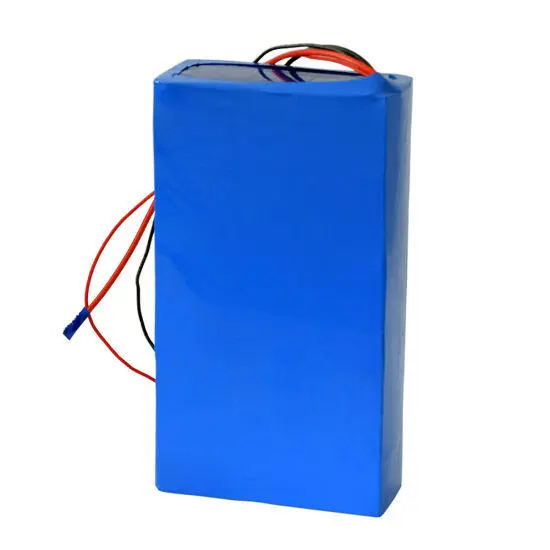

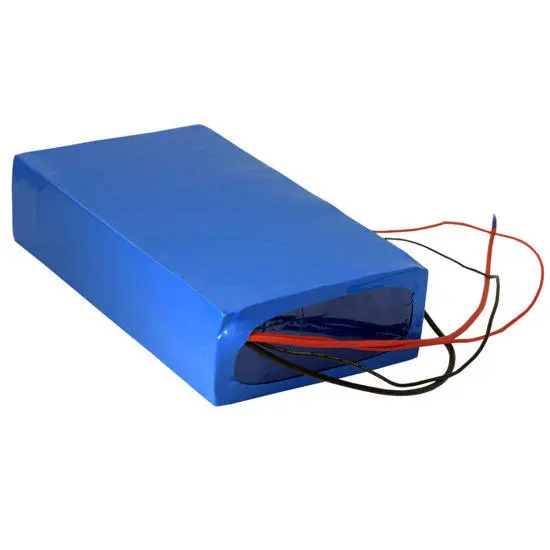

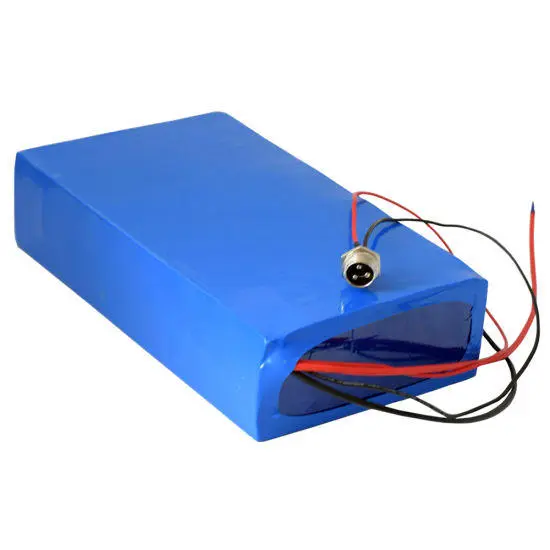

Rechargeable 59.2v 12ah 18650 lithium ion battery pack

Specification:

ModelFB-5912
Nominal voltage59.2V
Charge voltage67.2V
Nominal capacity12Ah
Battery typeLG 3000mAh lithium battery cell
Battery configation16S4P
Dimension255*140*60mm
Net weight3.3KG
Standard charge current2A
Standard discharge current6A
Lifecycle500 times
BMS functionover-charge,over-discharge,over-current,short circuit
Charge methodCC/CV
Charge temperature0~45°C
Discharge temperature-20~60°C
Discharge cut off voltage44V

Lithium battery features:

1. High operation voltage.

2. High energy density.

3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).

4. Minimal self-discharge, less than 3% monthly.

5. Wide temperature range, operation from :-20°C~+60°C

6. Be charged & discharged at anytime because of non-memory.

7. Environmentally compatible.

8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking


Applications:



 1. Telephone switchboard, electric equipment and power instruments



 2. UPS, emergency application and medical devices



 3. Power transmission and transformer station and accident lighting



 4.  Fire fighting, safety device and alarm monitoring



 5.  Automatic office system



 6.  Radio communication system



 7.  Emergency lighting and car/ship starting system



 8.  Portable electric appliances and mining system



 9.  Traffic and navigation signal lamp



 10. Solar energy: solar street lights, solar LED lights

experiment, with acupuncture, smash, drop, and so on.
