Specification

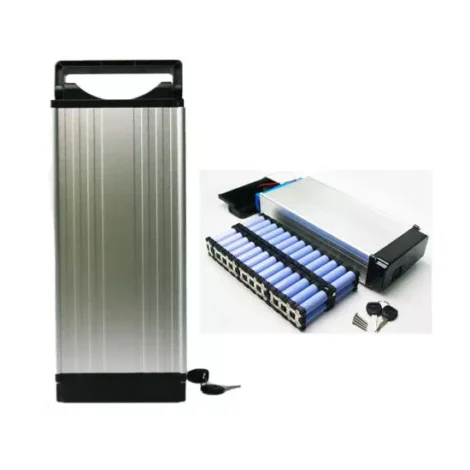

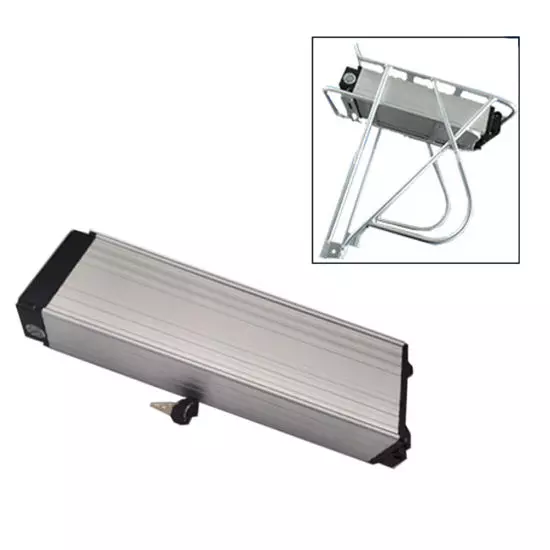

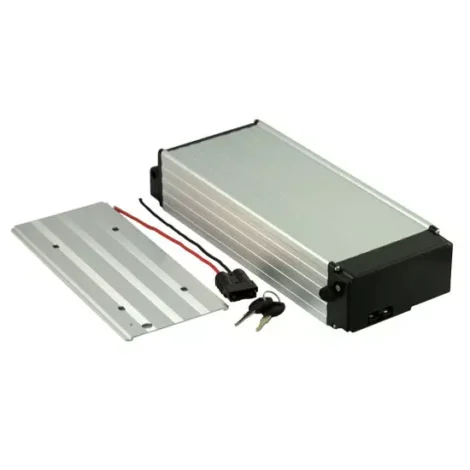

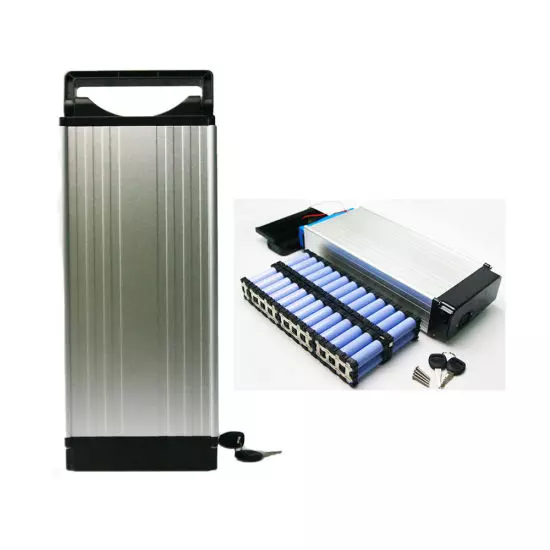

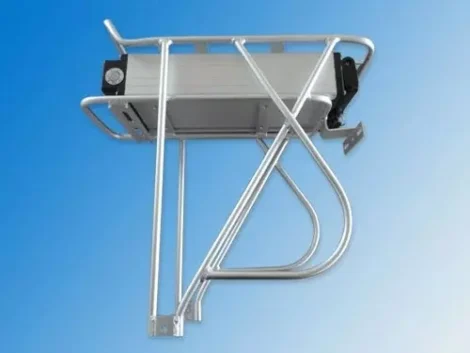

48v 20ah rear rack bike battery 13S8P
Specification
| Model | Ebike Battery pack | Rear bike battery design | 13S8P |
| Battery material | lithium ion battery | 18650 cell 2500mah or OEM cells brand | |
| Typical voltage | 48V or customerized | Rated capacity | 20ah or customerized |
| Dimensions | customerized | Inner impedance | les than 100mΩ |
| Full voltage | 29.4V | Max charge current | 4A |
| Discharge cut-off voltage | 54.6V | Rated dicharge current | 5A |
| Max discharge current | 20A | Charge methods | CC/CV |
| Battery weight | 8.0 Kg | Over-current protection current | 25A |
| Cylce life | More than 500-1000 times | Charging temperature | 0-45 degree |
| Ceftified by | CE,UL,ROHS,SGS etc. | Discharging temperature | -20-60 degree |
| Expecting driving distance | more than 50KM( 350w Motor) | Charging port: X.L.R | Discharging port: 2P bottom |
| Charger Specification | |||
| AC input | 100-240V 50/60HZ | DC Output | 54.6V 2A |
| Size | 148.7*49.86*270mm can be customized | Charging time | around6-7 hours |
Product Features:
1. Lotus CHARGING TOP PORT
2. Anderson DISCHARGING BOTTOM PORT
3. IRON RAIL 1 PCS FOR FIXING USE
4. 4 LED WORKING INDICATORS
Product featurs
1. High operation voltage.2. High energy density. 3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking
experiment, with acupuncture, smash, drop, and so on.
