Specification
|
Type
|
HL-300M
|
HL-500M
|
HL-600M
|
HL-1000M
|
|
|
Basic Specification
|
Net weight
|
≤4Kg
|
≤6.5Kg
|
≤7.5Kg
|
≤14Kg
|
|
Dimension
|
255*140*230mm
|
290*180*245mm
|
400*210*270mm
|
320*230*260mm
|
|
|
Capacity
|
296Wh,80000mAh
|
481Wh,130000mAh
|
577Wh,156000mAh
|
438000mAh 3.7V / 1110Wh
|
|
|
Certification standard
|
GB\CE\FCC\PSE\UN38.3\MSDS\RoHS
|
||||
|
LCD display parameters
|
Display related parameters: electricity, power, voltage, etc.
|
||||
|
APP
|
Support mobile APP control
|
||||
|
Output
|
AC output voltage (pure sine wave)
|
220V 50Hz / 110V 60Hz/50hz
|
|||
|
AC output frequency
|
50Hz/60Hz
|
||||
|
AC rated output power
|
300W
|
500W
|
600W
|
1000W
|
|
|
AC peak output power
|
500W
|
1000W
|
1000W
|
3000W
|
|
|

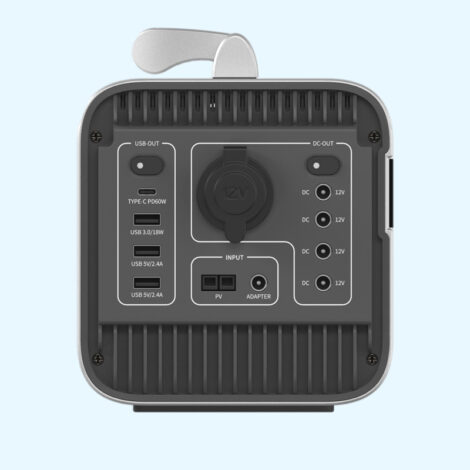

USB-A fast charging port
|
28W/5V-12V /2.4A(Max)
|
||||
|
TYPE-C Terminal
|
60W/5V-20V /3A(Max)
|
100W/5V-20V /5A(Max)
|
|||
|
Car charger output terminal
|
108.8W//13.6V/8A(Max)
|
136W//13.6V/10A(Max）
|
|||
|
DC5521 Output
|
13.6V 3A（Max）
|
||||
|
Input
|
AC charging voltage
|
AC 110V-220V 60/50Hz
|
|||
|
AC charging input frequency
|
50Hz/60Hz
|
||||
|
AC charging input power
|
350W(Max)
|
600W(Max)
|
1200W(Max)
|
/
|
|
|
Solar Charging Input
|
100W/10-24V/10A(Max)
|
200W/10-25V/12A(Max)
|
400W/10-65V/10A(Max)
|
||
|
Car chaging input voltage
|
12V/24V 10A（Max）
|
/
|
|||
|
Battery
|
Cell type
|
High-rate automotive-grade power batteries (Lithium iron phosphate is preferred)
|
|||
|
Discharge temperature
|
-20℃~60℃±3℃
|
||||
|
Charging temperature
|
-0℃~45℃±3℃
|
||||
|
Cycle Life
|
1000 times cycle（80%﹢）
|
||||
Advantages and features:
01 What is the output range of the HL-PPS600？
01 What is the output range of the HL-PPS600？
With output of 100V-240V range and suitable for most household appliances,and is more safe for car equipment.
02 What is the energy conversion rate of the HaiLei portable power station 600w？
02 What is the energy conversion rate of the HaiLei portable power station 600w？
The product conversion rate is more than 90%, exceeding 15% of the peers.The conversion rate of the energy storage power is largely dependent on the heat dissipation of the circuit board and the battery.Our product housing uses three high-efficiency low-noise heat dissipation fans inside the aluminum alloy, easy to heat dissipation, greatly improve the product’s conversion rate.
03 Is the solar power portable generator discharge rate high？
03 Is the solar power portable generator discharge rate high？
The product discharge rate is as high as 99.8%, 29.8% higher than the peer
Most product on the market is with only 60% -70% discharge rate for less than 500w storage power supply products ,while our products can discharge 99.8% of the total capacity (automatic shutdown with the last charge as the display column shows).
04 HL600M can charge and discharge at the same time .
When the city power is connected, it is preferentially powered to the load device. If city power is dreak down,the power supply can be automatically switched directly to the device to power it,so to avoid power off.
Most product on the market is with only 60% -70% discharge rate for less than 500w storage power supply products ,while our products can discharge 99.8% of the total capacity (automatic shutdown with the last charge as the display column shows).
04 HL600M can charge and discharge at the same time .
When the city power is connected, it is preferentially powered to the load device. If city power is dreak down,the power supply can be automatically switched directly to the device to power it,so to avoid power off.
05 What is the use of the display？
It can display the charging power and the wattage of different out put ports.
06 Which certifications have passed？
06 Which certifications have passed？
have passed CE / FCC / RoHS / PSE and other certifications, and the battery pack has passed MSDS / Un38.3 and other related certification.
