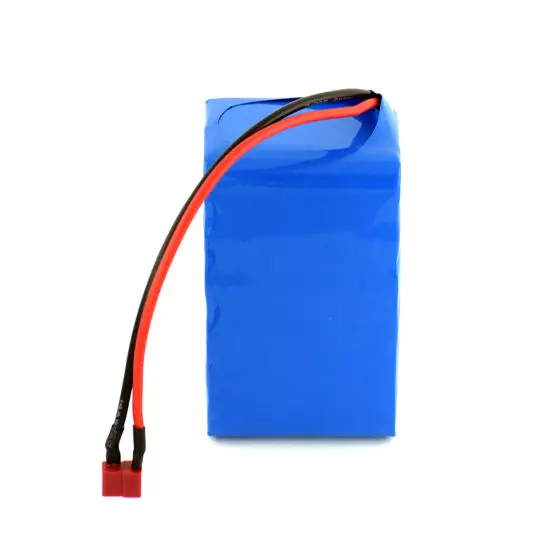

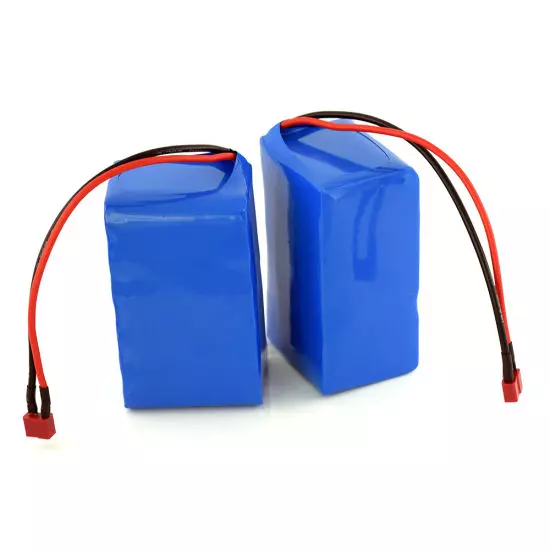

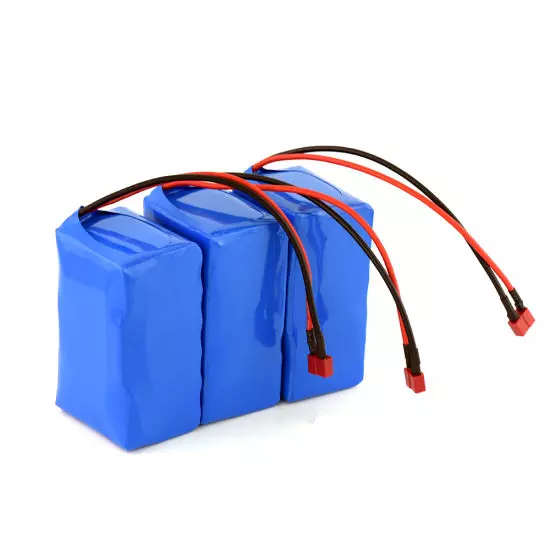

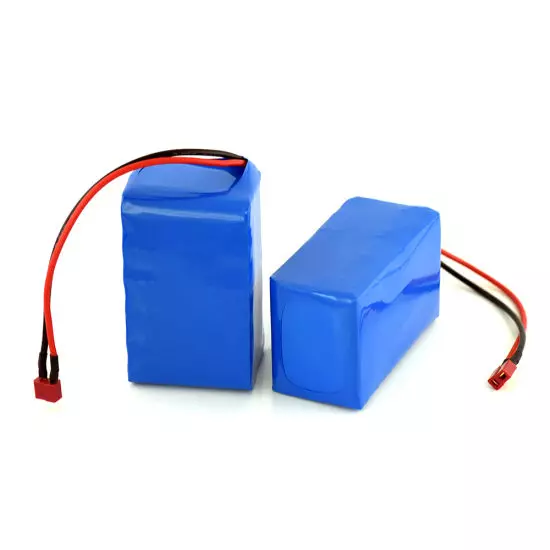

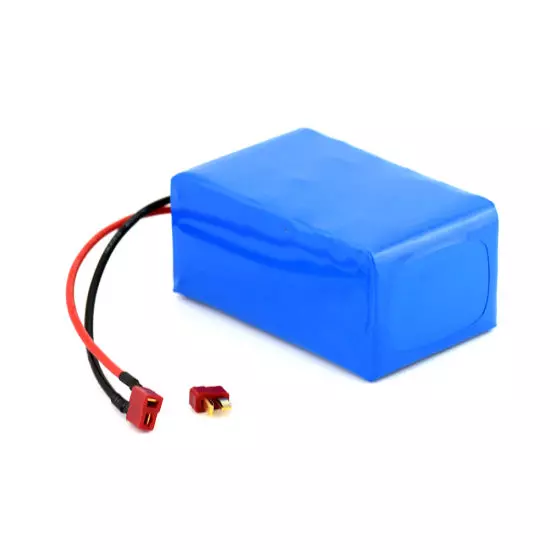

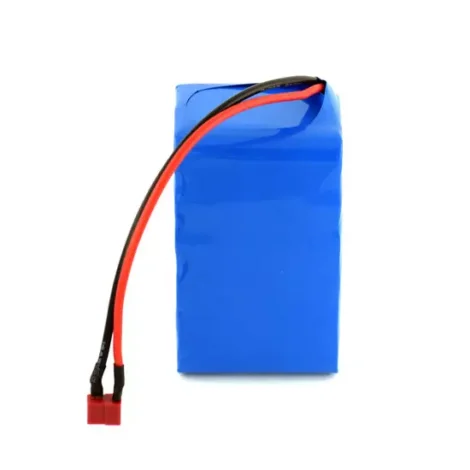

OEM ODM Lithium 24V 6Ah Flexible Rechargeable 18650 Li ion Battery Pack
Product specification:
Model | DL-2460/6S2P |
Nominal voltage | 22.2V |
Charge voltage | 25.2V |
Nominal capacity | 6000mAh |
Battery type | 18650 lithium battery cell |
Battery configation | 6S2P |
Net weight | 680g |

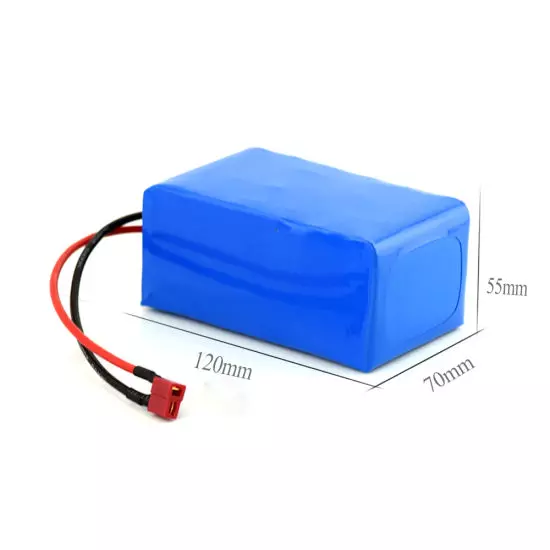

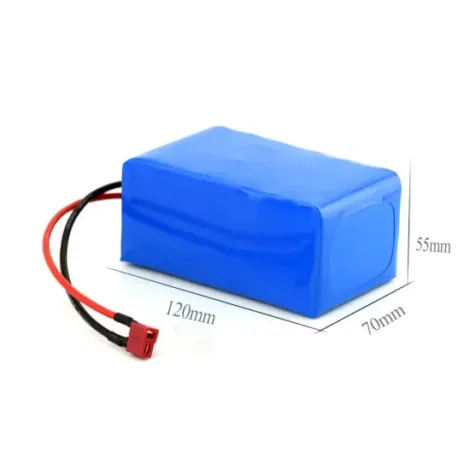

Dimension | 120*70*55mm |
Standard charge current | 0.2C 1200mA |
Max charge current | 1C 6000mA |
Standard discharge current | 0.5C 3000mA |
Max discharge current | 1C 6000mA |
Discharge cut off voltage | 17.20V |
Warranty | 12 months |
Lifecycle | 500 times |
Charge temperature | 0~45ºC |
Discharge temperature | -10~60ºC |
Charge method | CC/CV |
Storage temperature | -10~45ºC |
Features
- Excellent high and low temperature discharge performance . Nominal voltage 3.7V, 90% capacity output under the stable voltage
- Widely using temperature range, can be operated in -20°C~+60°C.
- Excellent storage life and reliability. With low self-discharge, selft-discharge rate≤3% monthly.
- Flexible design,also can make customized size and capacity for customers.
- Long cycle life, more than 500 charge/discharge cycles ( 80% capacity remained ).
- lithium batteries are environmentally friendly and pollutant free power, it’s without mercury,cadmium,lead and other heavy metals.
Application
- Digital Products : Bluetooth, MP3,MP4,P-DVD, Cellular Phone.
- Portable Electronics: Notebook Computers, LCD light, Digital Camera, Emergency Lighting
- Backup power supply, Medical Device,Electric nipper .
- Electric bicycles, HEV, EV.
- Medical instruments.
- solar storage power station, ups, backup emergency battery etc.
