Electrical
Characteristics

Nominal Voltage

12.8V

Nominal Capacity

100Ah@0.2C

Energy

1280Wh

Internal Resistance

≤50mΩ

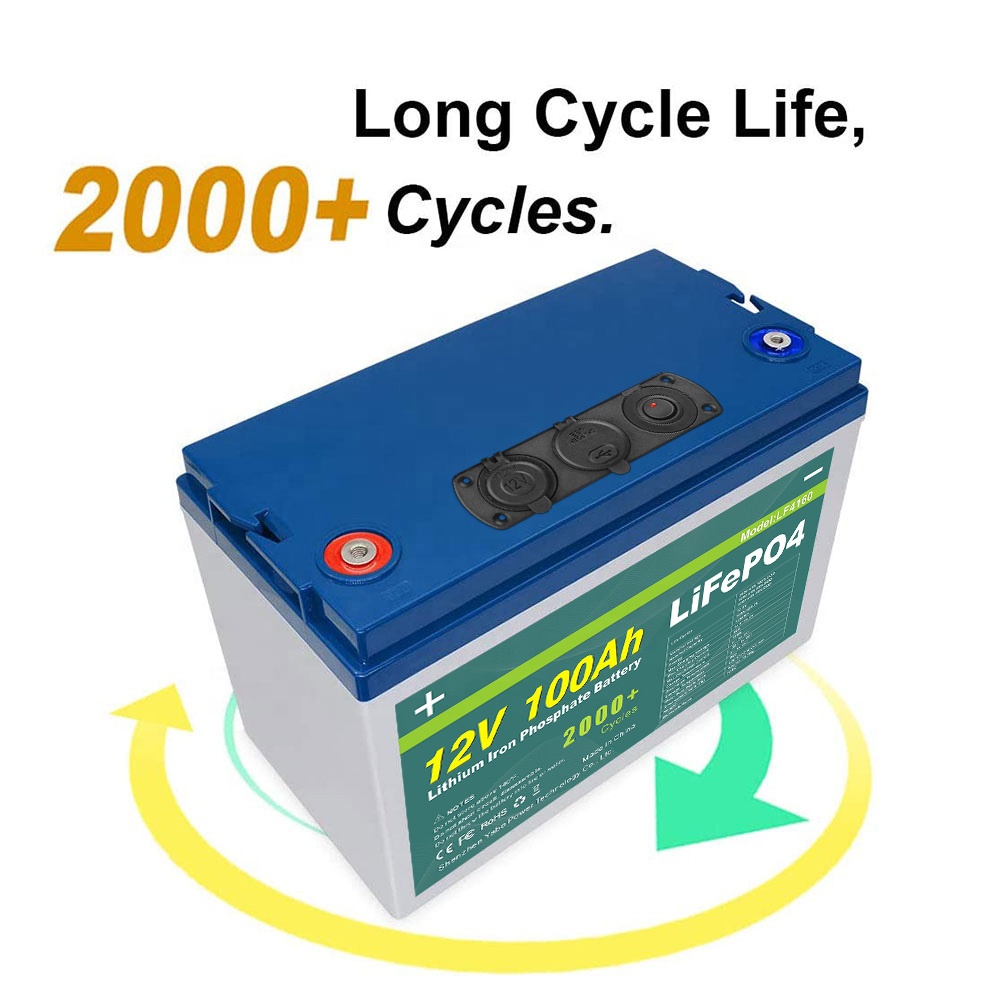

Cycle Life

2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge

≤3.5% per month at 25℃

Standard Charging

Max.Charging Voltage

14.0~14.6V

Charging Mode

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C

Charging Current

20A

Max.Charging Current

50A

Standard Discharging

Discharging Current

50A

Max. Continuous Current

80A

Max.Pulse Current

200A(<3S）

Discharging Cut-off Voltage

10.0

Operating Condition

Charge Temperature

0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature

-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature

0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance

IP55

Structure

Cell & Format

IFR32700 N65,4S17P

Casing

Plastic

Dimension(L*W*H*TH)

328*172*216*216

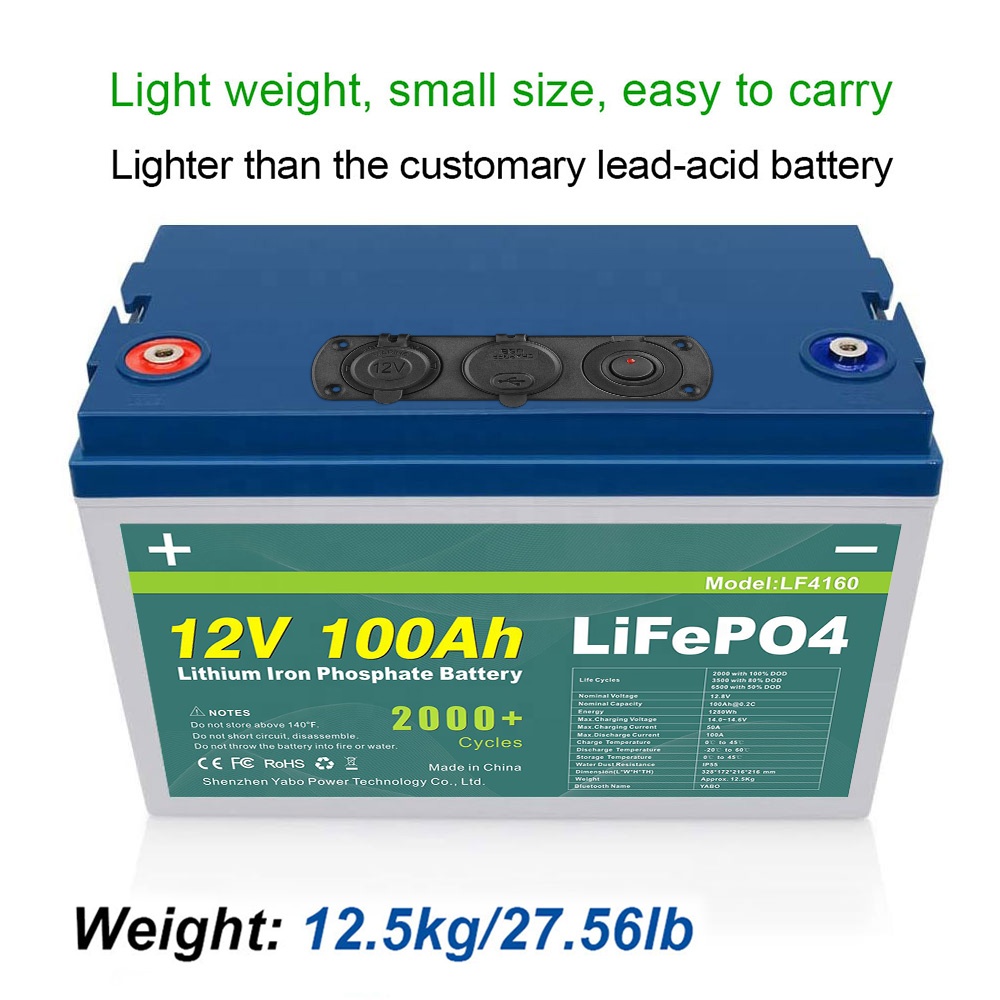

Weight

Approx. 13Kg

Terminal

M8
