Product Name

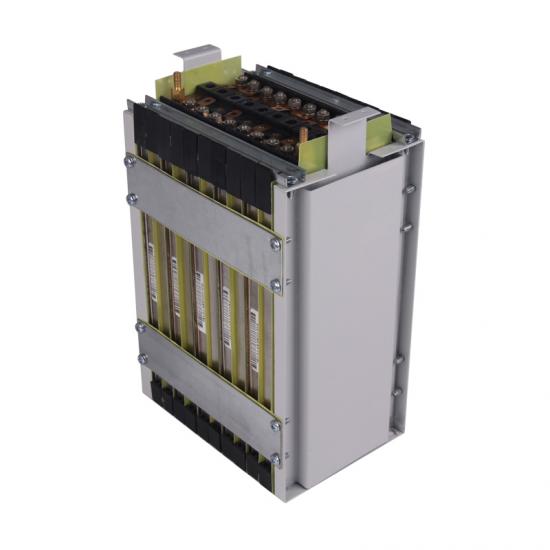

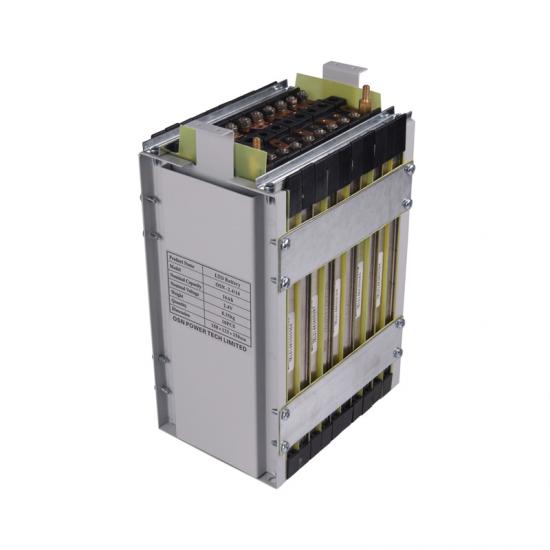

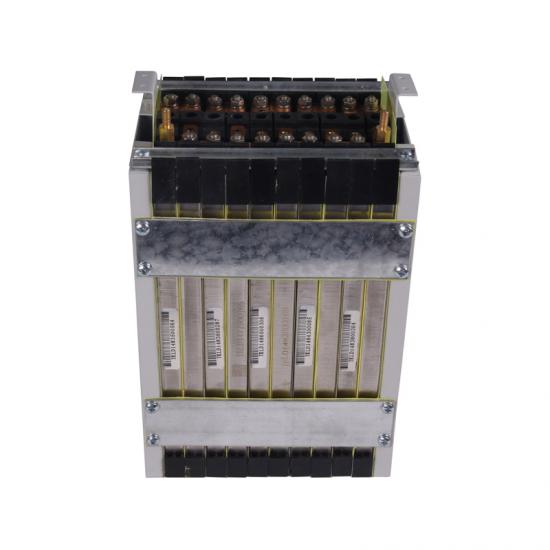

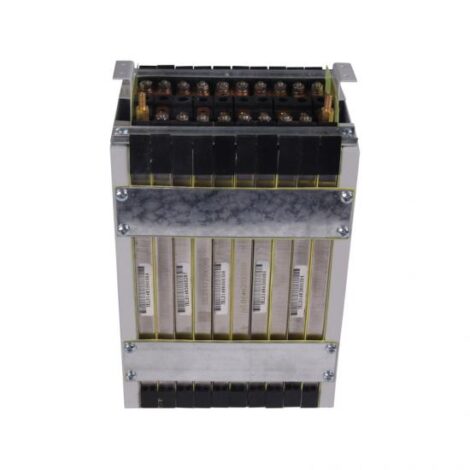

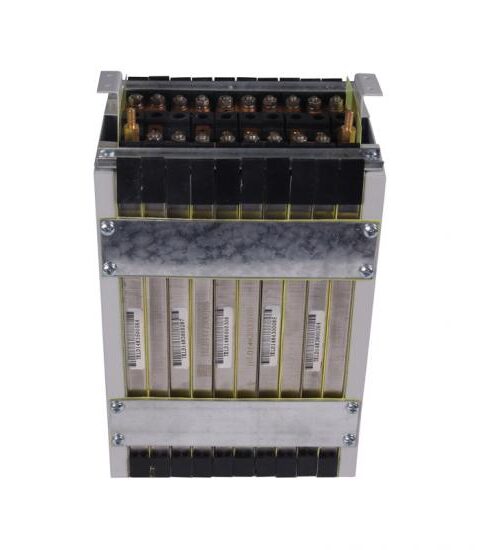

LTO Battery 24V 15Ah 20000 times for solar battery EV etc
Highlights
- We designed a series LTO batteries 24V, use the most high powerful cell LTO 2.4V 15Ah cells with 10C discharge rate to make battery with very high output.
- Can be flexible connected in parallel to get more power for different car systems .
- Battery is built into balancing boards ,to prevent cell imbalance, and provide better performance, have a longer life.
- Super long life till to 20000 times
- Internal structure design can support super strong car audio up to 18000W
- Light weight and small size,designed to be mounted in virtually any position
Specification for LTO Battery pack 24V 15Ah
MODEL | OSN-LTO-2415 |
PERFORMANCE | |
Rated Capacity (5hr) | 15Ah |
Nominal Voltage | 24V |
Discharge Ending Voltage | 15V |
Charging Limited Voltage | 27.5 V |
Max Discharging Current | 150 A |
Parallel Connection | Optional (up to 16P). |
Containing Cell | LTO 15AH |
Design Life | More than 10 years |
Cycle Life | 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) |
Discharge Rate | 10C |
MECHANICAL SPECIFICATIONS | |
Dimensions (W*D*H) | L158XW123XH250mm |
Weight | 8.35Kg |
OTHER | |
Operating Temperature | Charging: -30 to +55°C / Discharging: -30 to +55°C |
Storage Temperature | -20 to +50°C |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Warranty | 5 years |
Other Features
Lithium battery VS Lead acid battery
- Up to 70% lighter than lead-acid batteries of a comparative size and spec
- Up to 10 times longer service life than its lead-acid equivalent
- Environmentally friendly – no heavy or toxic materials
Applications
