Product name

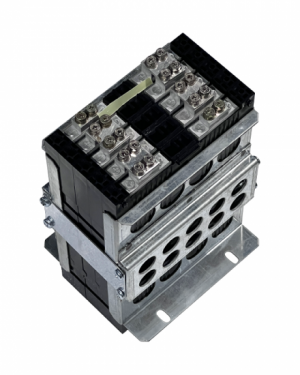

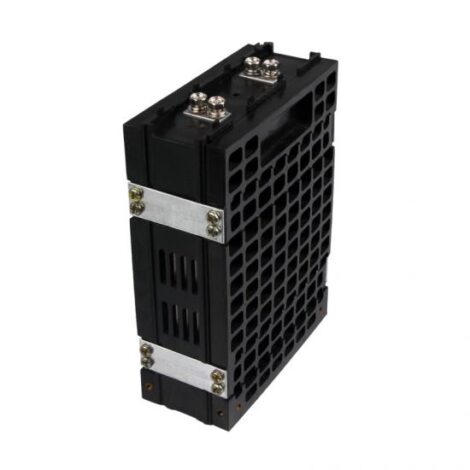

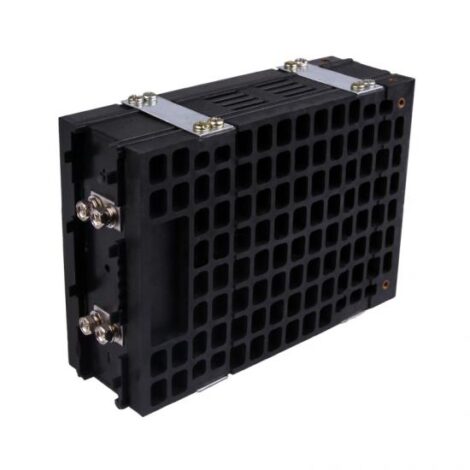

Lithium Titanate Battery 2.4V 26Ah LTO for communication base station power supply
Discharge Curve at Low Temperature(-20℃)
Discharge Curve at High Temperature(55℃)
cycle life at 5C rate
Specification
Item | Parameters | |
Model | OSN-32115170-LTO26Ah | |
Materials | LTO | |
Nominal capacity | 26Ah | |
Nominal voltage | 2.4 V | |
Dimension | 170*115*32mm | |
Prismatic | ||
Weight | 1.08kg | |
Internal Resistance | ≤1mΩ | |
Operating voltage | Charge cut-off voltage | 2.75 V |
Discharge cut-off voltage | 1.5 V | |
Maximum charge current | 4C | |
Maximum discharge current | 7C | |
Cycle life | 20000 times | |
Operating Thermal Ambient | Charging | -30℃~ 55℃ |
Discharging | -30℃~ 55℃ | |
Storage Thermal Ambient | Short term (within 1 month) | -20℃~ 45℃ |
Short term (within 1 year) | -20℃~ 20℃ | |
Highlight
Super long cycle life: over 30,000 times
Faster charge: 10mins fully charged
Higher discharge rate: Up to 10C
Wide working temperature range: -50°C ~ 65°C
High Safety(No fire, explosion,leakage)
