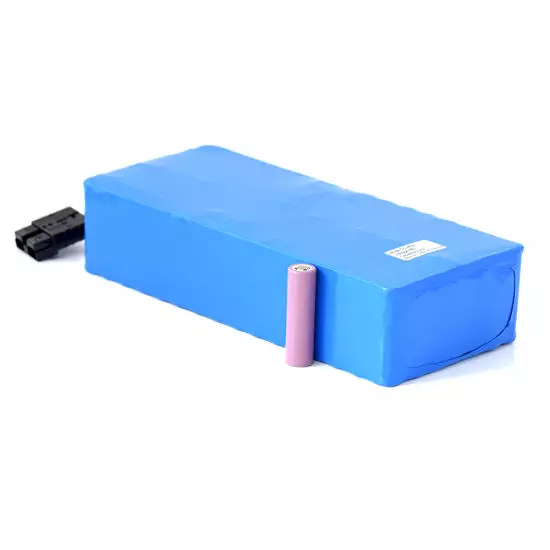

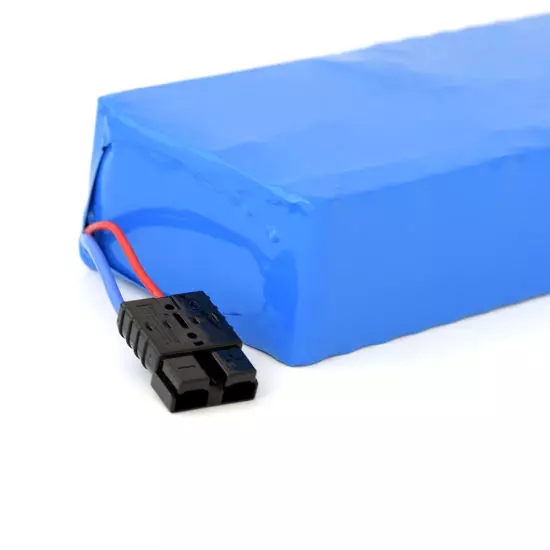

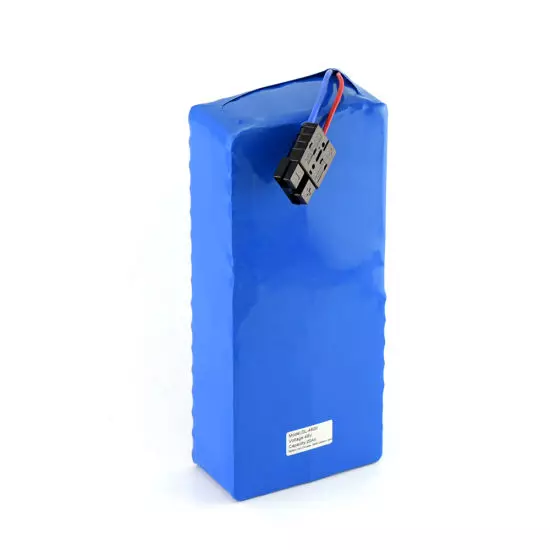

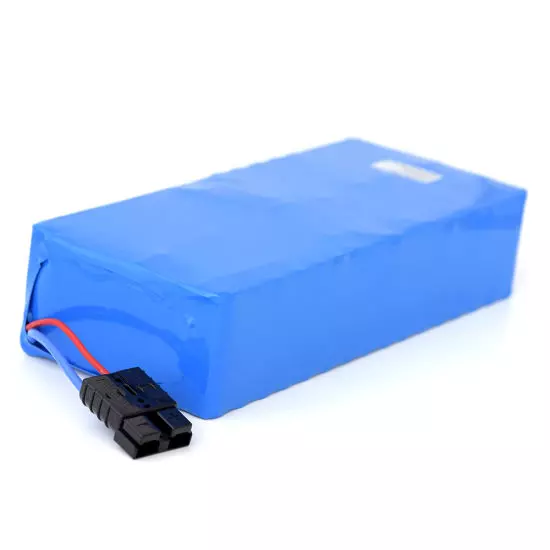

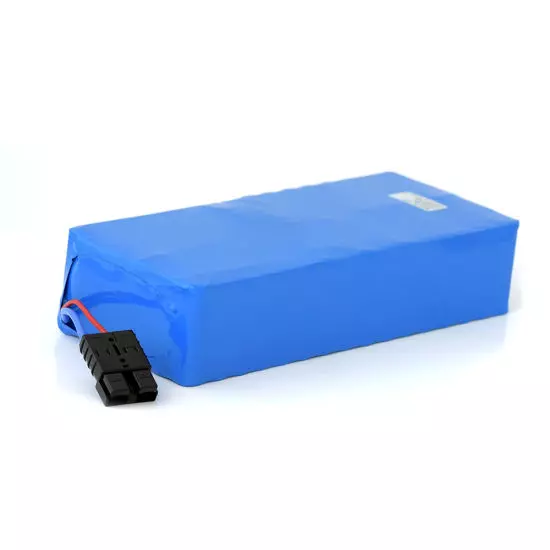

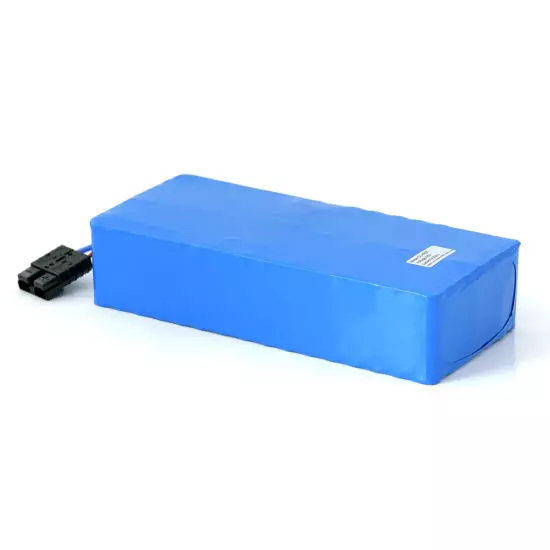

Lithium Ion Li Ion Battery Pack 48V 20ah for Ebike

Port:Shenzhen, China

Production Capacity:1000PCS/Week

Payment Terms:T/T, Paypal, Money Gram

Model NO.FB-4820-138P

Rated Capacity:20ah

Standard Voltage:48V

Usage:Remote Control Car, for Ebike

Electrolyte:Li-ion

Available Certificates:Ce, RoHS, FCC

Product Name:Lithium Ion Li Ion Battery Pack 48V 20ah for Ebike

Color:Silver , or Black

Dimenssion:420*250*72mm or OEM

Pakcage Size:54*15*16.5mm

Battery Cell Type:China 18650 Cell 13s8p , or OEM Brand Cell

Nominal Voltage:48V

Nominal Capacity:20ah

Cut-off Voltage:36.8V

BMS:20ah

Trademark:DeLong, OEM

Transport Package:Standard Export Package

Specification:420*250*72mm, or OEM

Origin:China

Lithium ion li ion battery pack 48v 20ah for ebike
1000w Electric E Bike Battery 48V 20Ah



Specification

ModelEbike Battery pack
 Battery materiallithium ion battery 18650 cell 2500mah, or OEM brand cell
Typical voltage48V or customerizedRated capacity 20ah or customerized
DimensionscustomerizedInner impedanceles than 100mΩ
Full voltage54.6VMax charge current4A
Discharge cut-off voltage39VRated dicharge current5A
Max discharge current20ACharge methods CC/CV
Battery weight 6.0  KgOver-current protection current 25A
Cylce life More than 500-1000 timesCharging temperature 0-45 degree
Ceftified by CE,UL,ROHS,SGS etc.Discharging temperature-20-60 degree
Expecting driving distancemore than 50KM( 350w Motor) Charging port: X.L.RDischarging port: 2P bottom
 Charger Specification
AC input 100-240V 50/60HZDC Output54.6V 2A
Size420*250*72mm , can be customizedCharging time around6-7 hours






10Ah, 12Ah, 16Ah, 20Ah, 30ah ,    24V, 36V, 48V ,52v , 60bv, 72v  are available  Customizes shapes, capacity, and voltage are accepted


Product Features:

 Lithium ion li ion battery pack 48v 20ah for ebike
48V 20ah lithium ion battery pack

1. using china cell 18650 cells 2500mah, or OEM brand cell LG, SAMSUNG, PANASONICS,ETC.
2. With BMS protection:  25Ah
3. COMBINATION : 13S8P
4. Gurantee:  1 year
5.   Pakcage: Blue shrink PVC

Product featurs

1. High operation voltage.2. High energy density. 3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).

4. Minimal self-discharge, less than 10% monthly.

5. Wide temperature range, operation from :-20°C~+60°C

6. Be charged & discharged at anytime because of non-memory.

7. Environmentally compatible.

8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking

experiment, with acupuncture, smash, drop, and so on.
