Product Paramenters
|

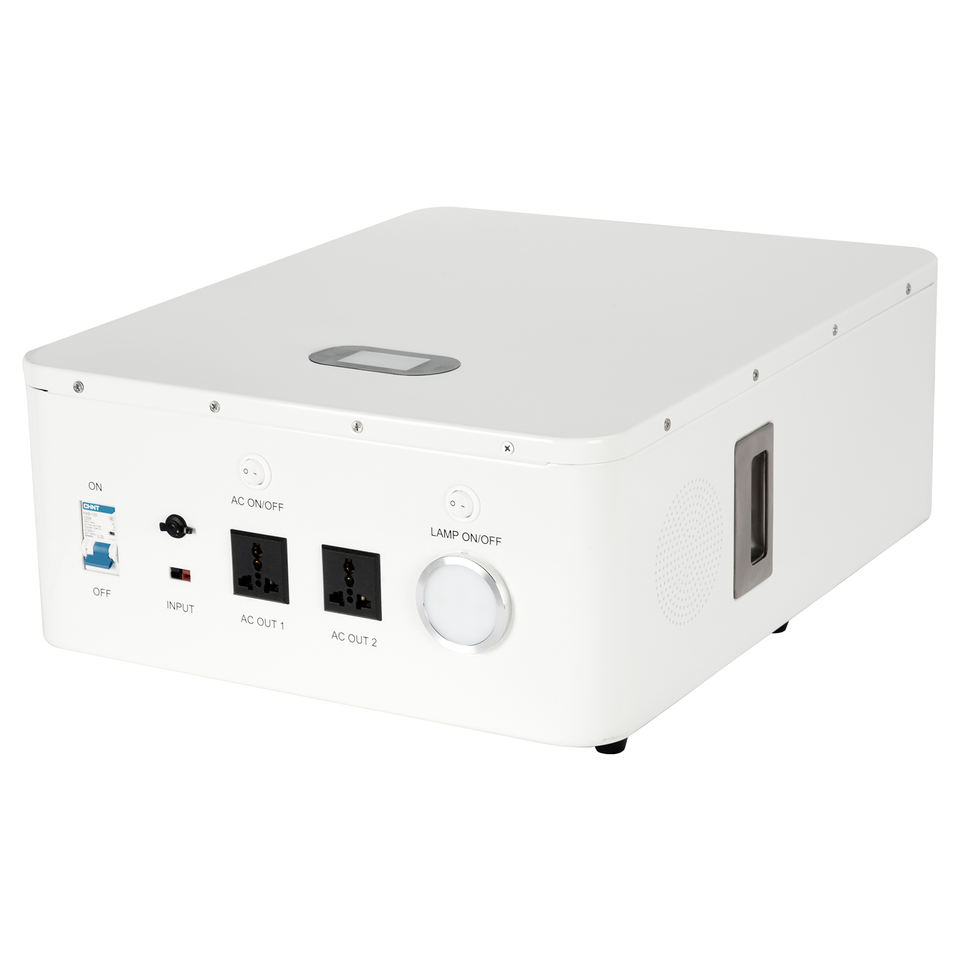

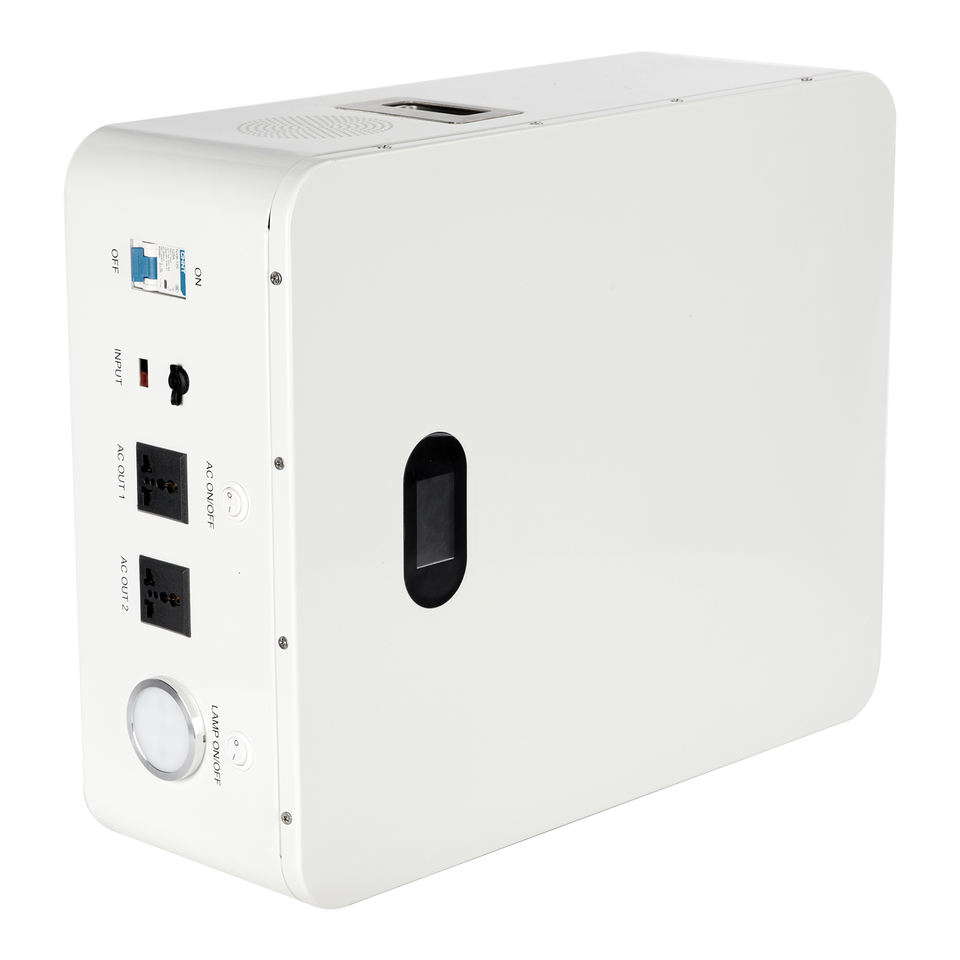

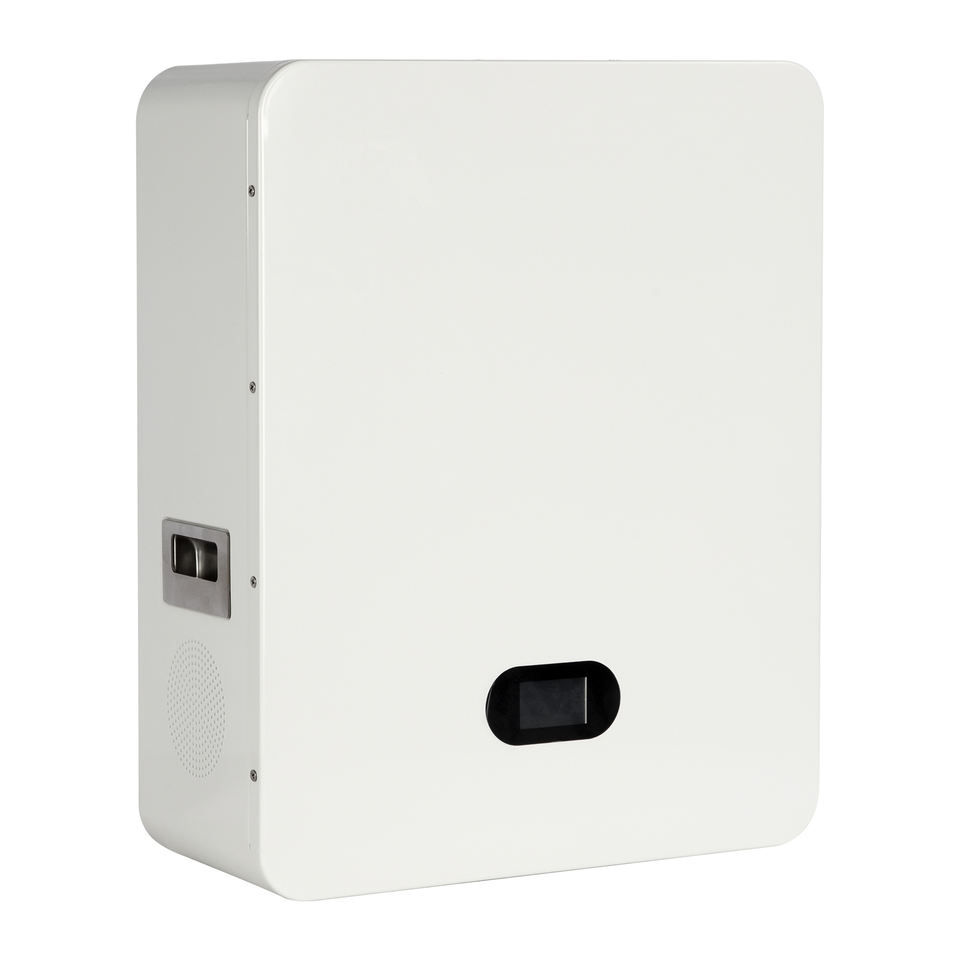

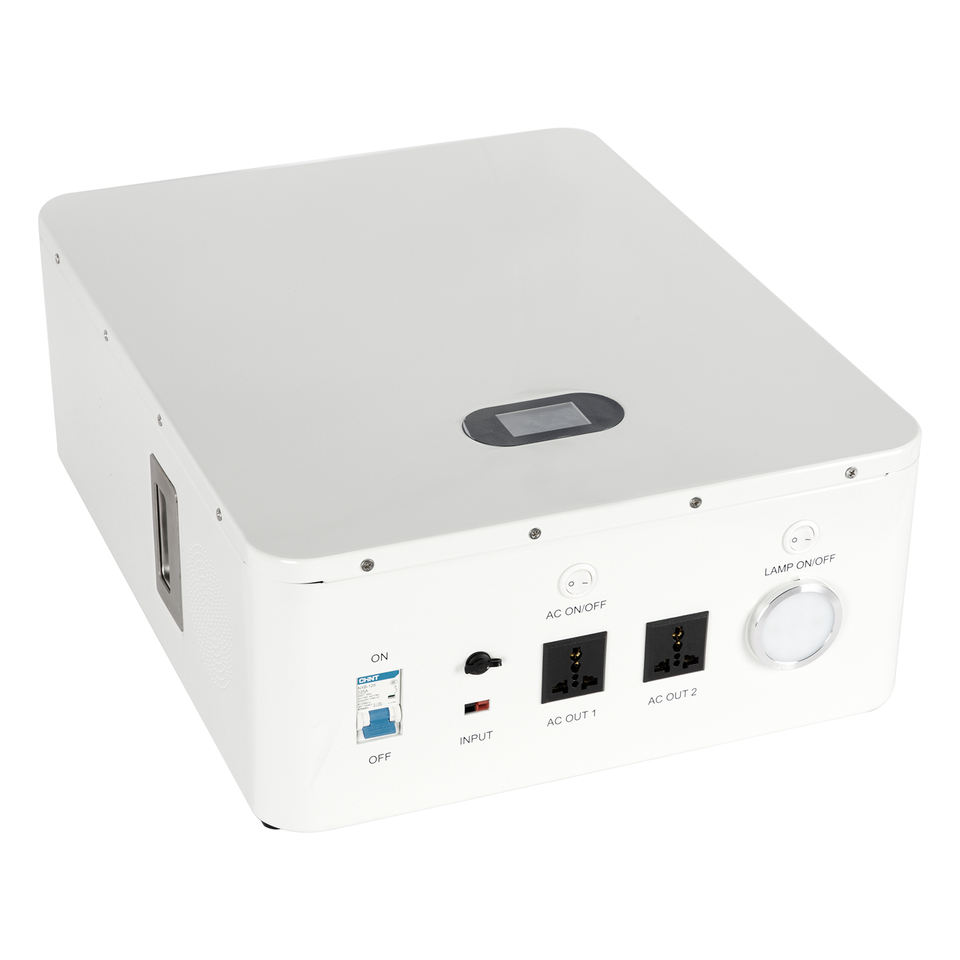

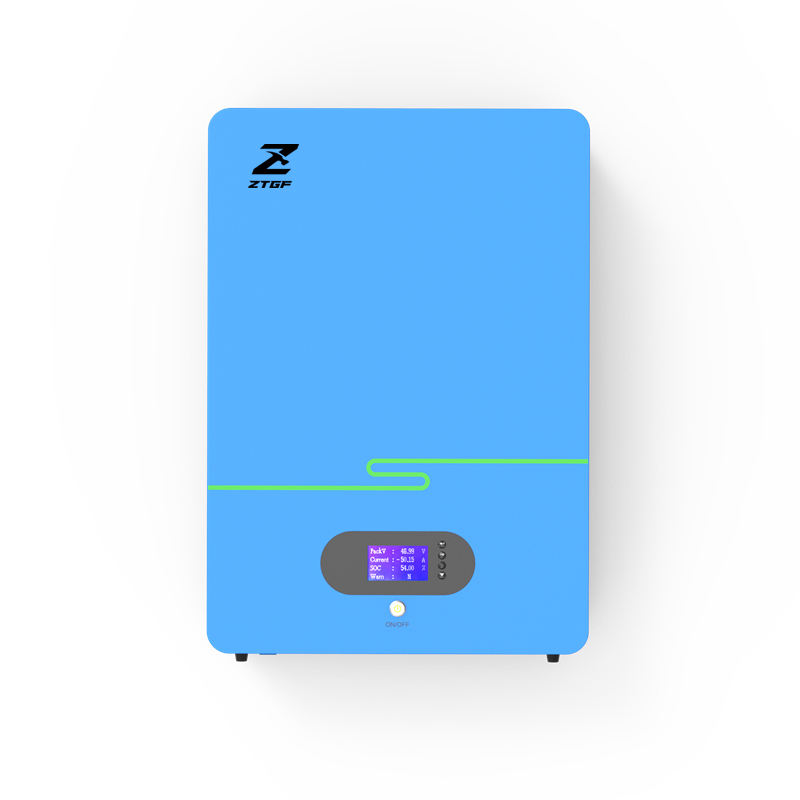

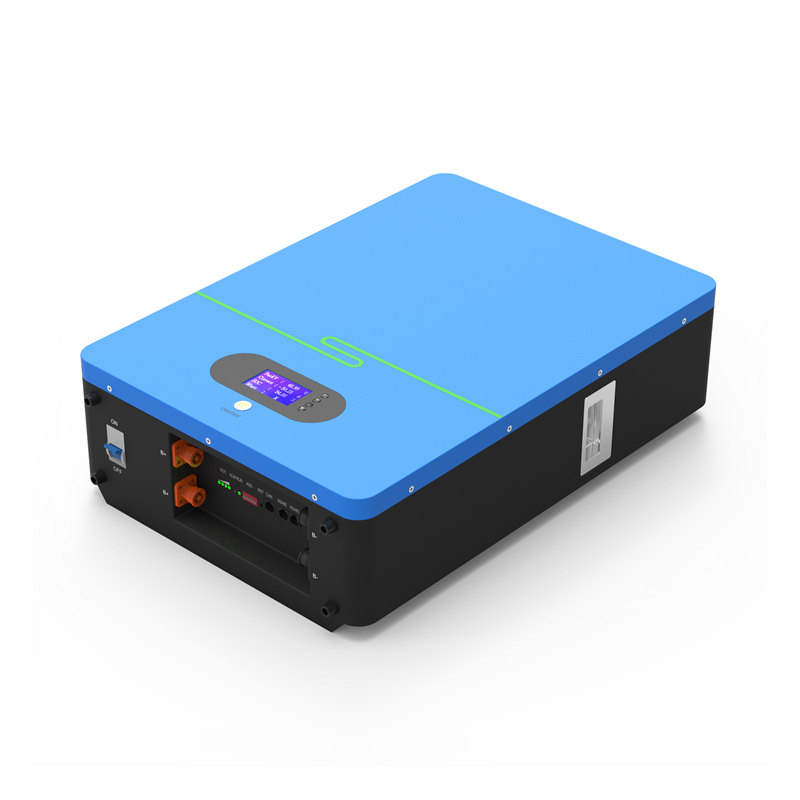

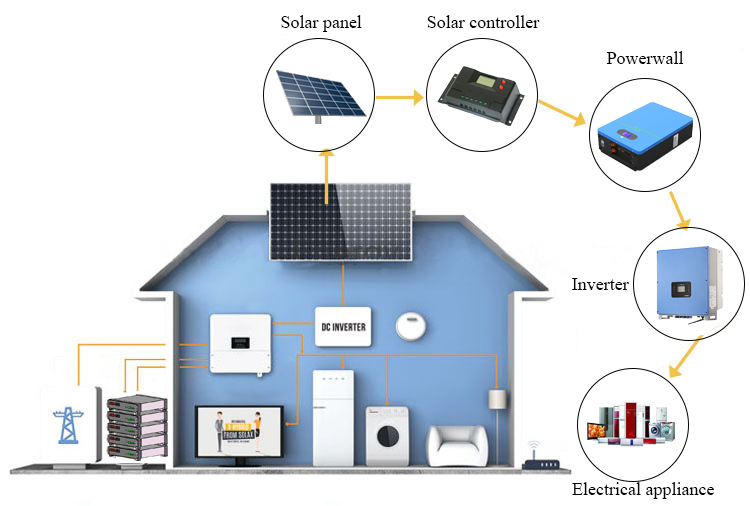

48V 100AH lifepo4 solar energy storage system
|
|
|
Product Name
|
5kw power wall
|
|
Product Specification
|
48V 100AH
|
|
Nominal Voltage
|
48V
|
|
Nominal Capacity
|
100AH
|
|
Cell Type
|
LiFePO4(LFP)
|
|
Standard Charge Voltage
|
58.4V
|
|
Max Charge Current
|
100AH
|
|
Discharge Cut-off Voltage
|
40V
|
|
Max Discharge Current
|
100AH
|
|
Display
|
LED or Customized
|
|

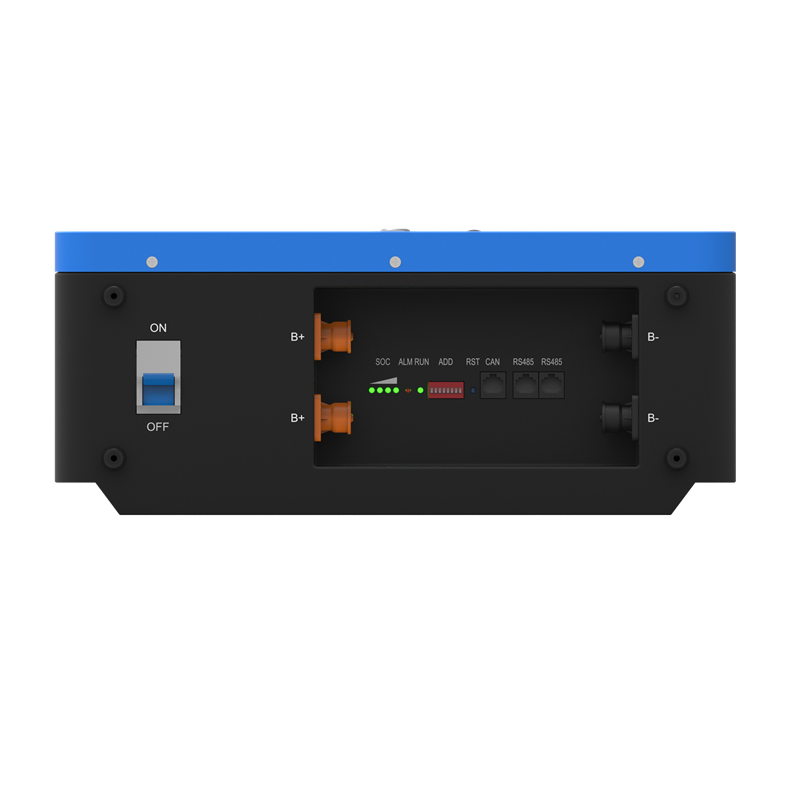

Communication Interface
|
RS485/R232/CAN
|
|
Cycle Life
|
≥3000 cycles（80%DOD）
|
|
Charge Temperature Range
|
0~65℃
|
|
Discharge Temperature Range
|
-20~65℃
|
|
Colour
|
Customized
|
|
Dimension
|
390*175*600mm
|
|
Weight
|
50Kg
|
|

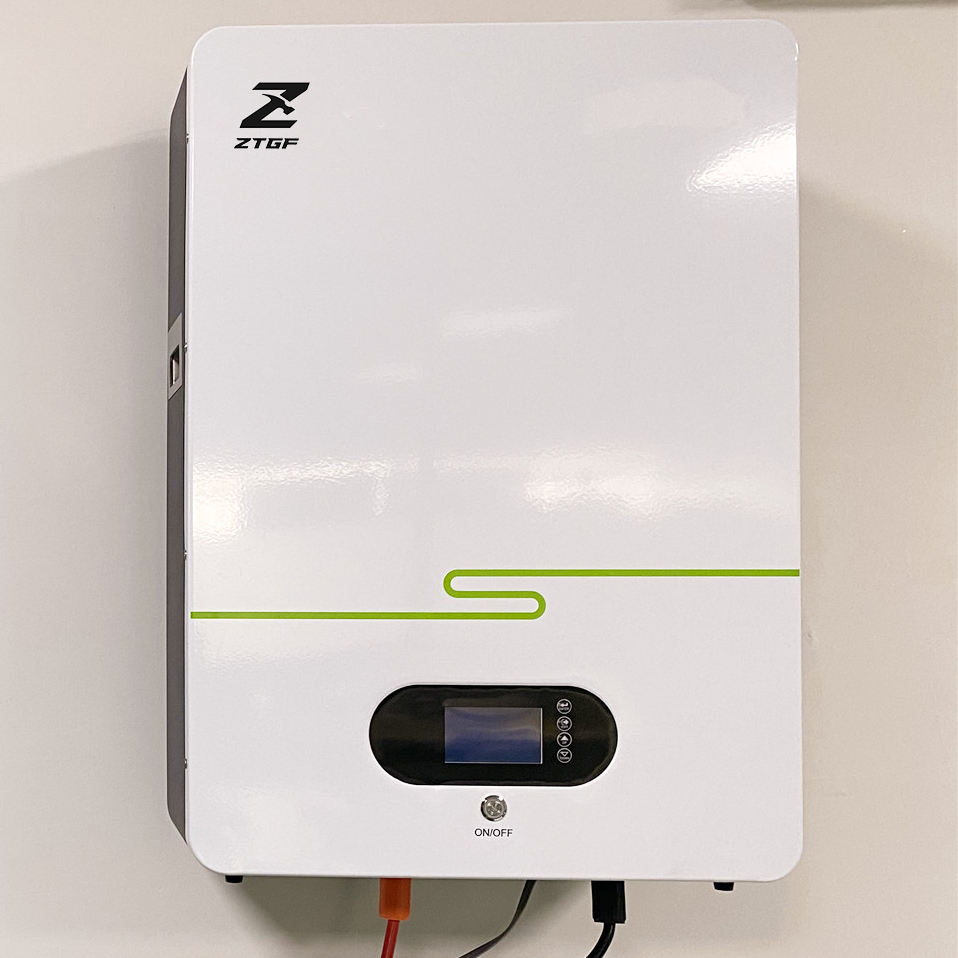

Installation Method
|
wall mounted
|
