Product Paramenters

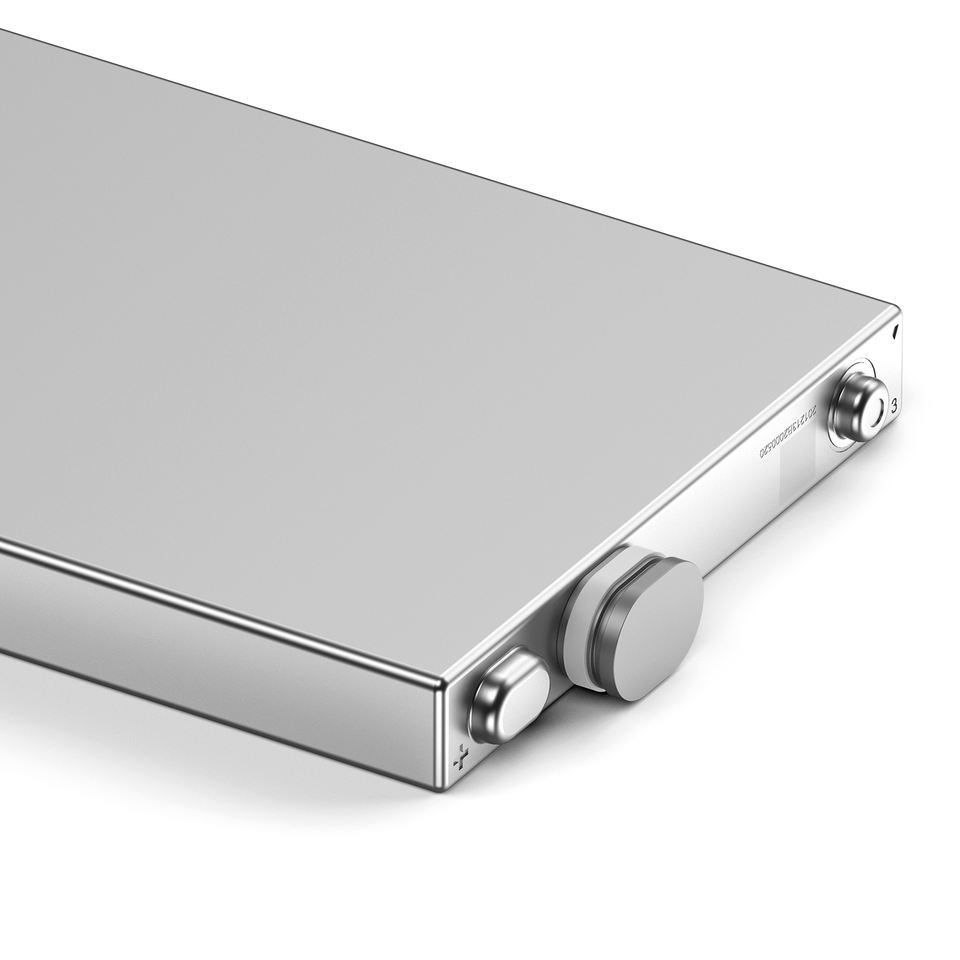

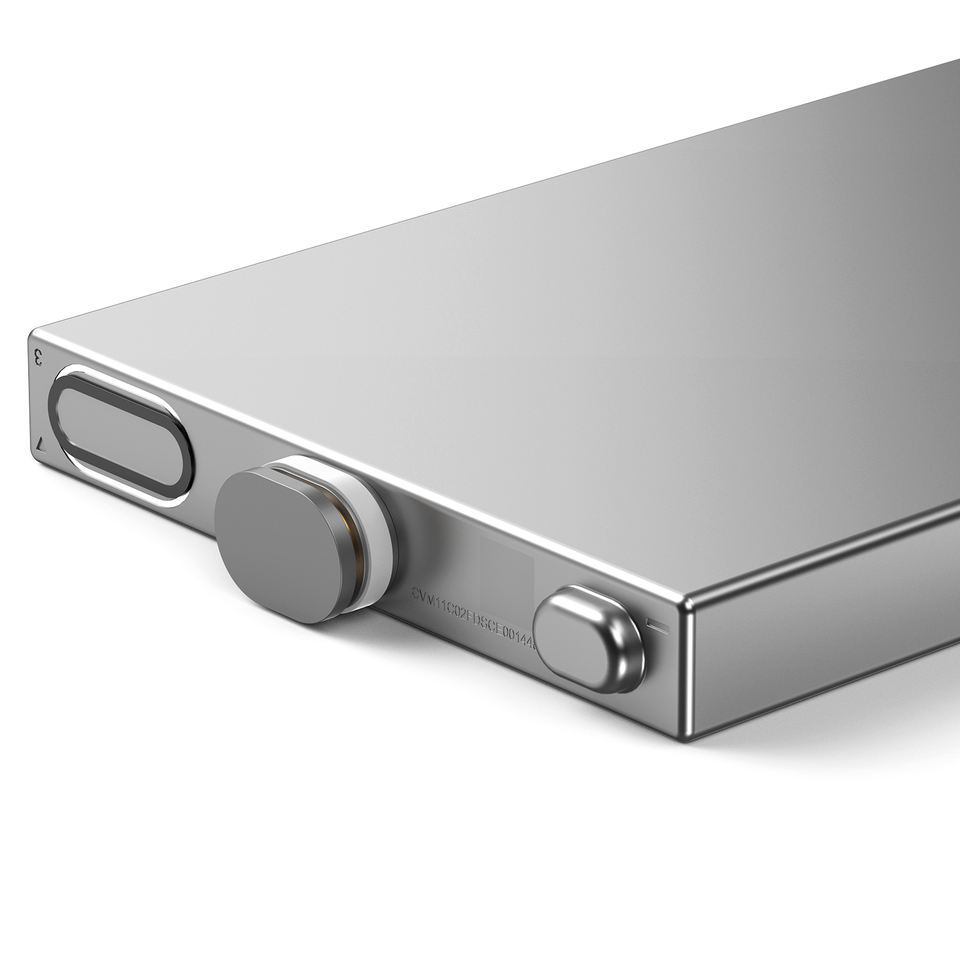

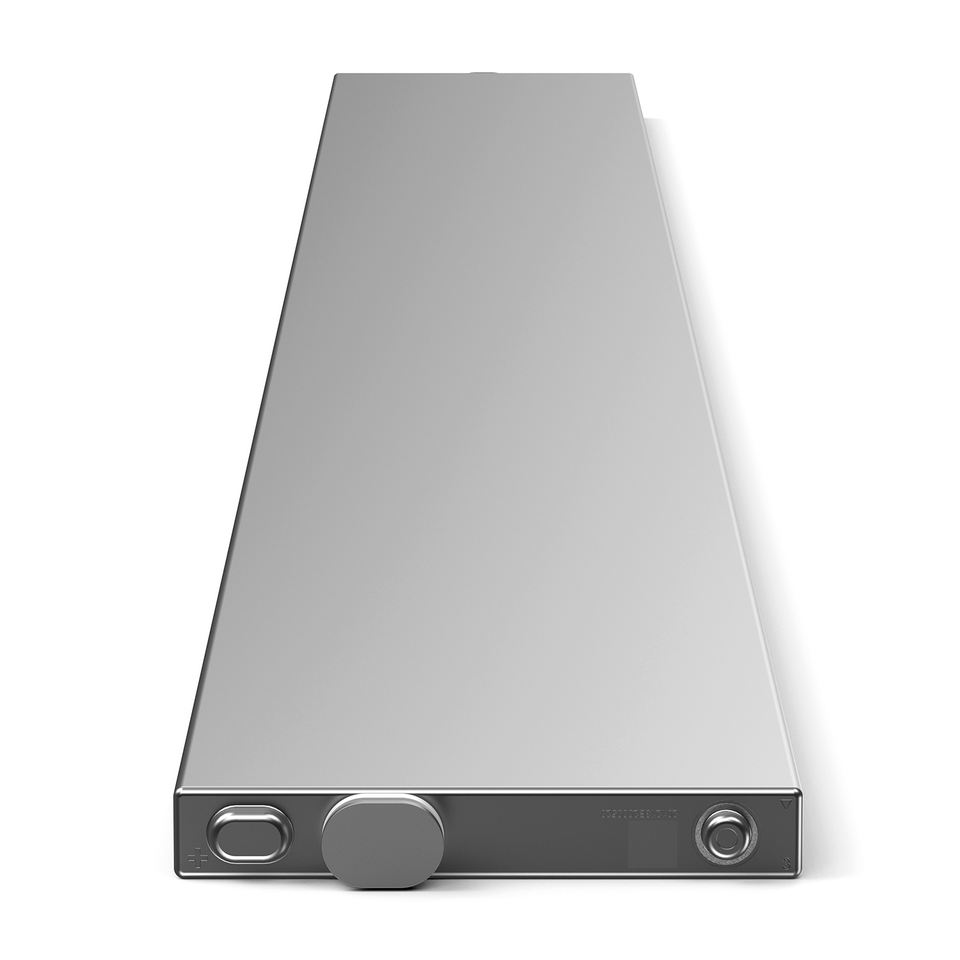

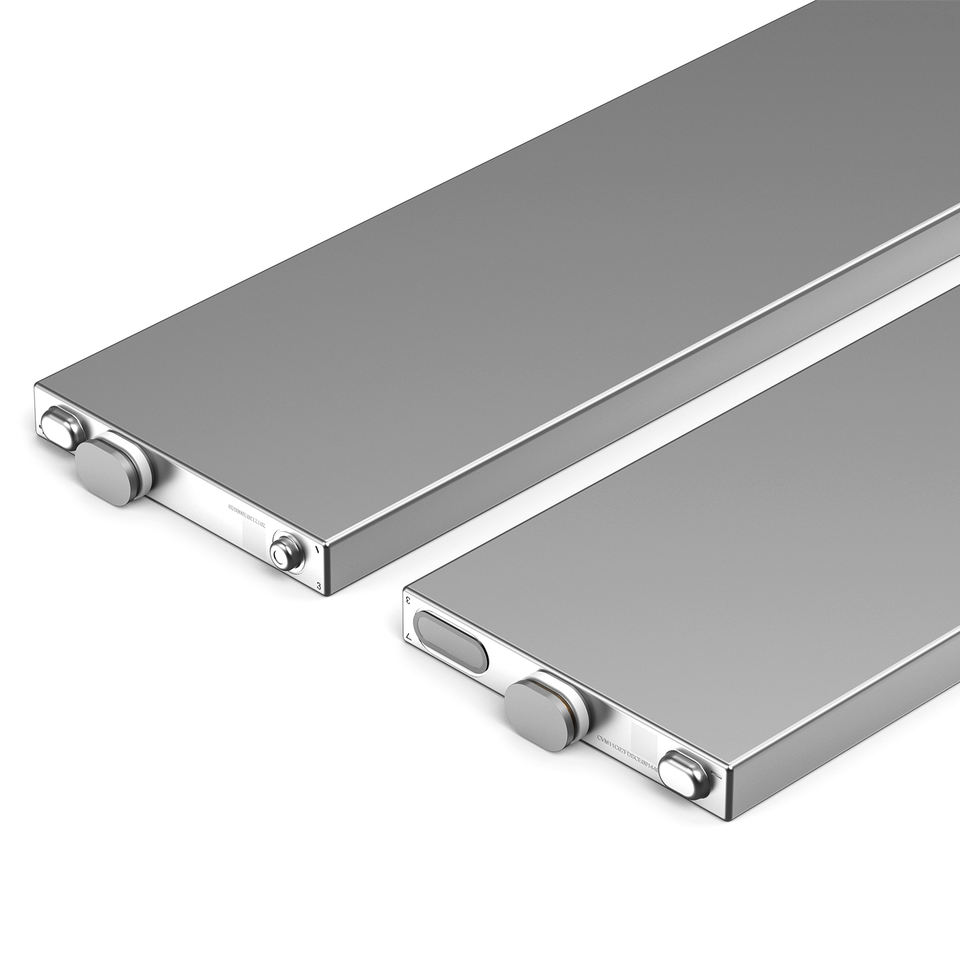

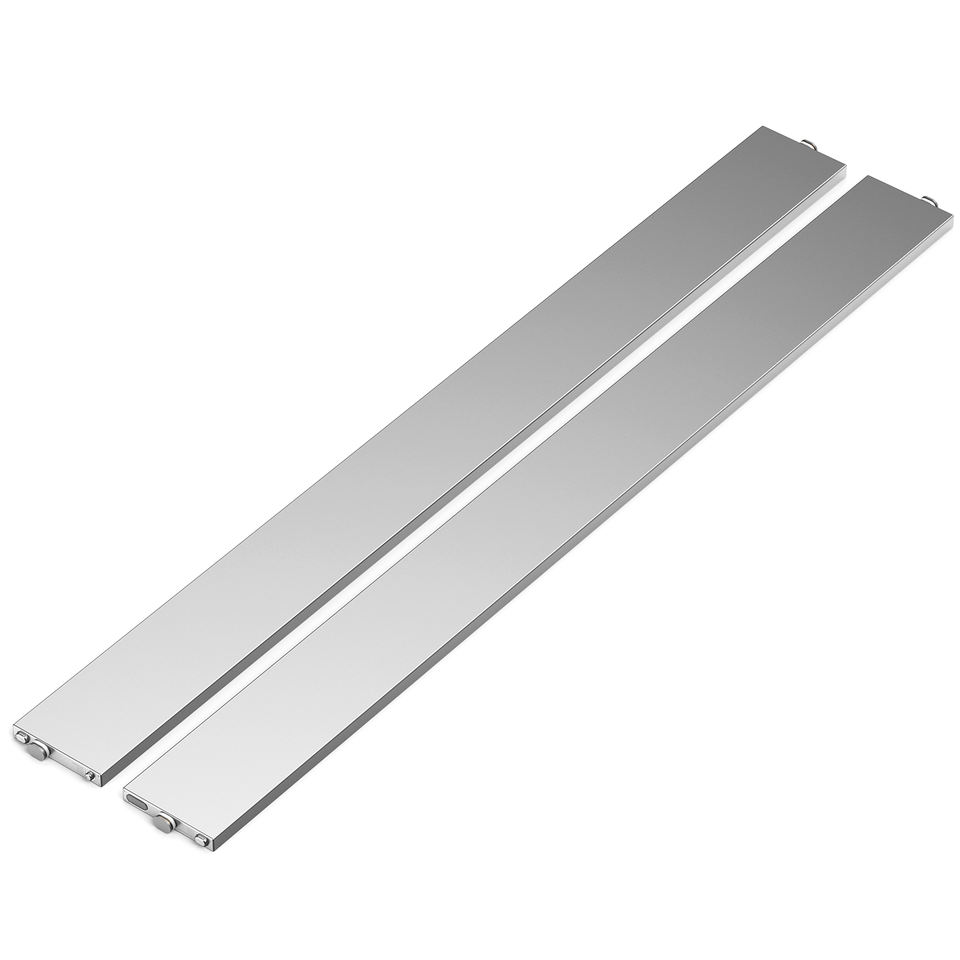

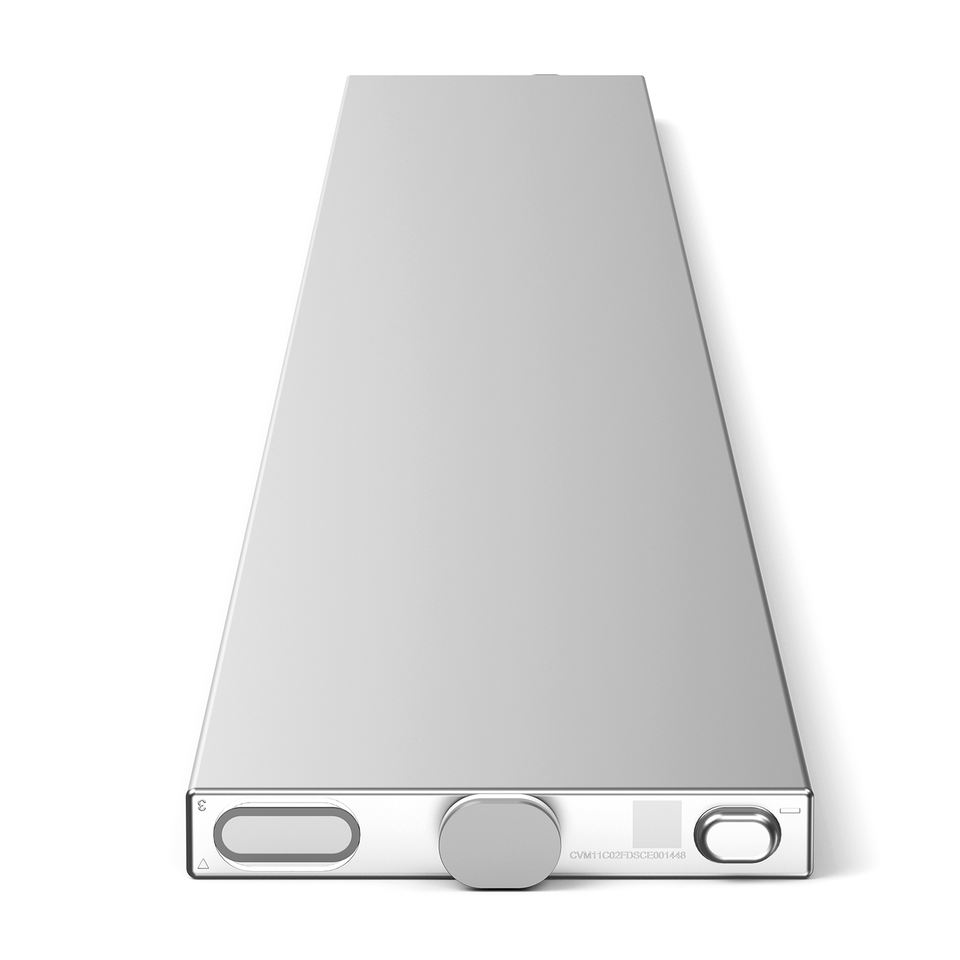

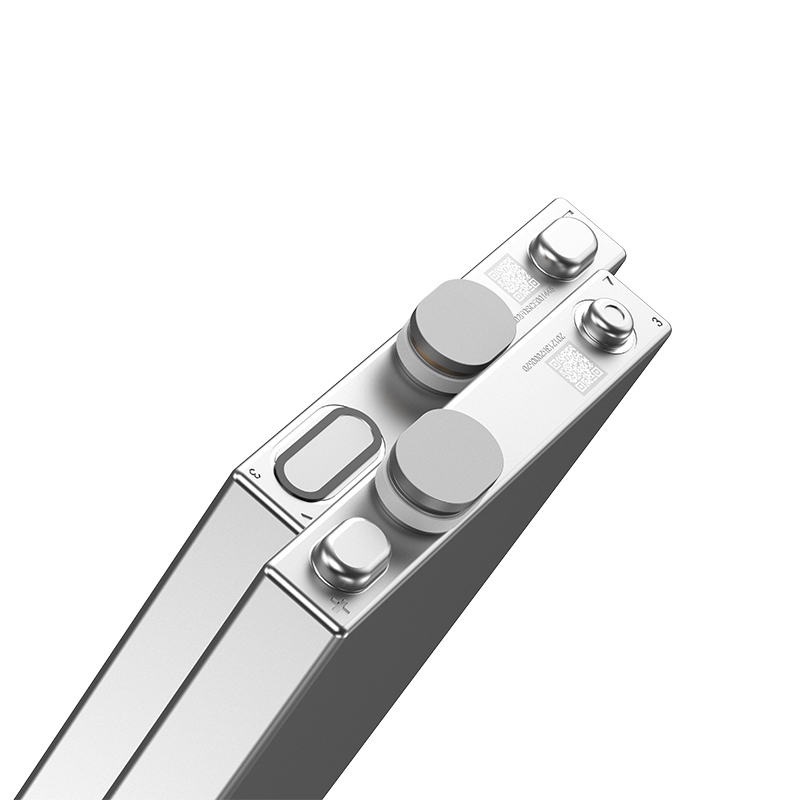

BYD LiFePO4 Blade Battery Cell
Nominal Voltage	3.2V
Nominal Capacity	138AH
Cycle Life	4000 cycles
MAX Charge Current	1.5C
MAX Discharge Current	2C
Cut-off Charge Voltage	3.65V
Cut-off Discharge Voltage	2.0V
Work Temperature	-10~+50℃（charge） -20~+55℃（discharge）
Product Size	960*90*12mm
Produce Weight	4Kg
Application	RV/marine/solar/home energy storage

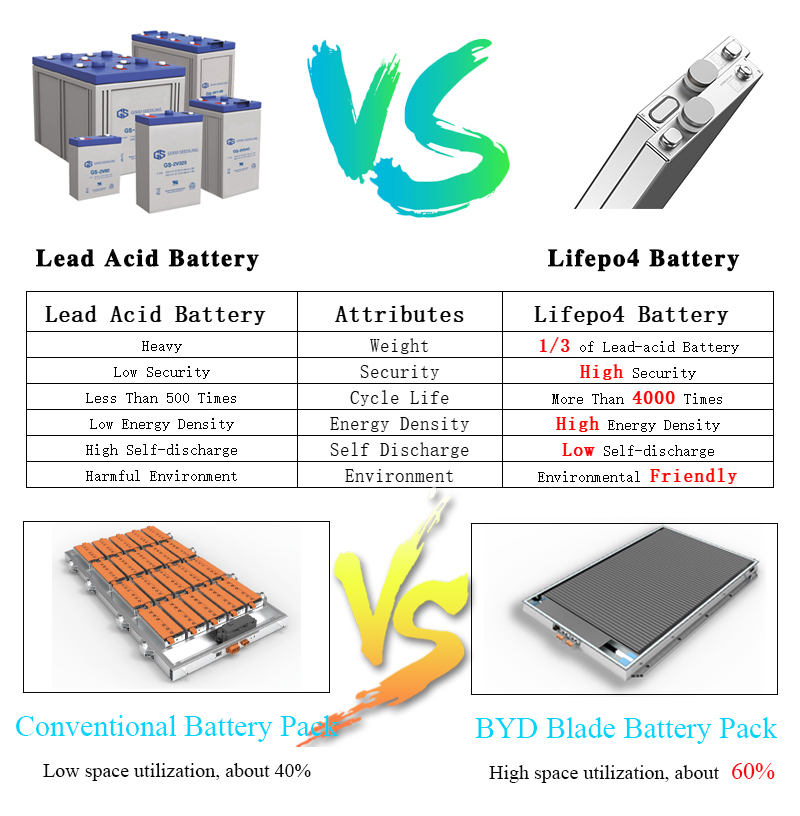

Advantages of blade batteries

＞4000 cycles life, high energy density
Security, Efficiently, system integration design
Intelligent temperature control system, high cold resistance
Volume utilization increased by 50%, and the number of parts decreased by 40%

Produt Test
