Product Paramenters
|
Cell Type
|
LiFePO4 Battery
|
|
Cell Model
|
SAB60280
|
|
Typical Capacity
|
55AH
|
|
Nominal Voltage
|
3.2V
|
|
Discharge cut-off voltage
|
2.5V
|
|
CC/CV Charge cutoff voltage
|
3.65V
|
|
Standard Charging current
|
30AH(Standard) 55AH(Quick)
|
|
Max Discharging Current
|
110A（15S，10～+45℃ SOC≥30%)
|
|
Cycle Life
|
2500 cycles
|
|
Internal Resistance
|
≤0.9mΩ（50%SOC）
|
|
Weight
|
1.68±0.15kg
|
Products Description
Precautions for the use of batteries
(1) Forbid the battery to be discarded into the garbage;
(2) It is strictly forbidden to disassemble, squeeze, pierce or burn the battery.
(3)It is strictly forbidden to expose the battery for a long time at temperatures above 55 ℃.
(4)Avoid severe vibration during loading and transportation, and do well in storage, installation and transportation.
(5)The battery can only be charged by special charger for Li ion battery.
(6)It is forbidden to put batteries in water, sea water or get wet.
(7)No one, two lithium battery mixed use
(8)Away from the place where the child is in touch
(2) It is strictly forbidden to disassemble, squeeze, pierce or burn the battery.
(3)It is strictly forbidden to expose the battery for a long time at temperatures above 55 ℃.
(4)Avoid severe vibration during loading and transportation, and do well in storage, installation and transportation.
(5)The battery can only be charged by special charger for Li ion battery.
(6)It is forbidden to put batteries in water, sea water or get wet.
(7)No one, two lithium battery mixed use
(8)Away from the place where the child is in touch

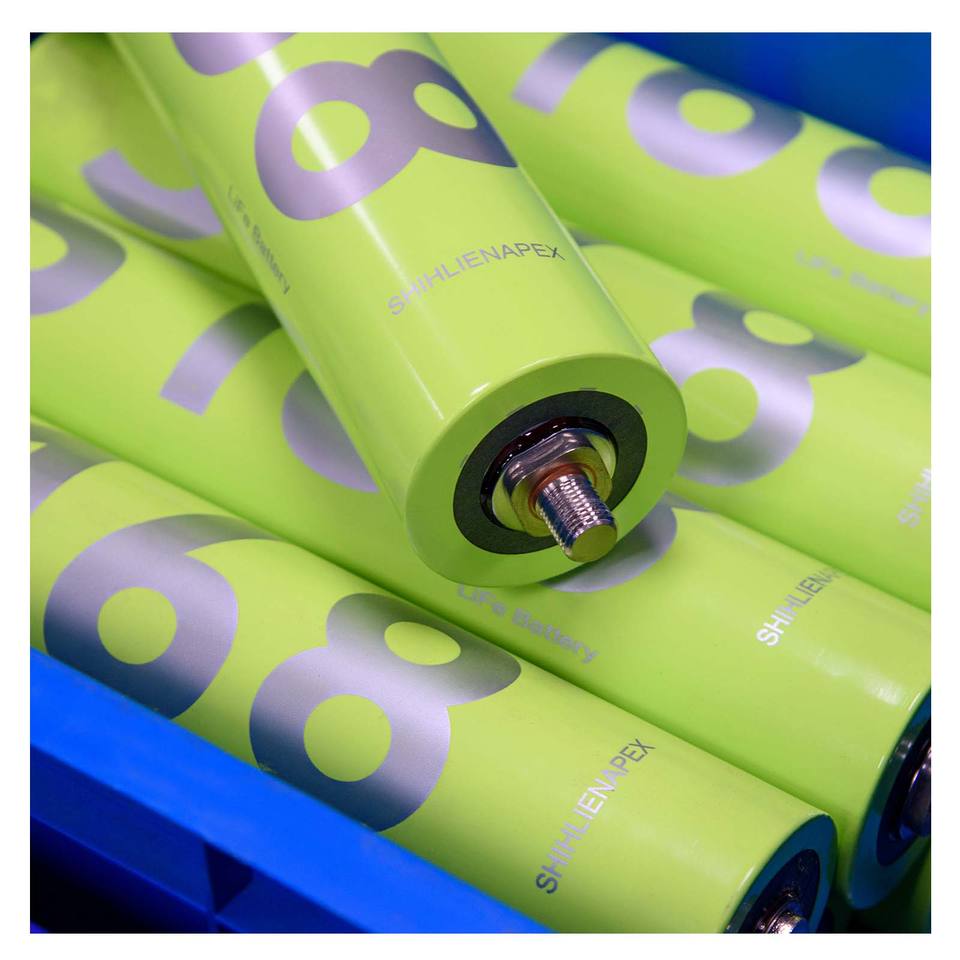

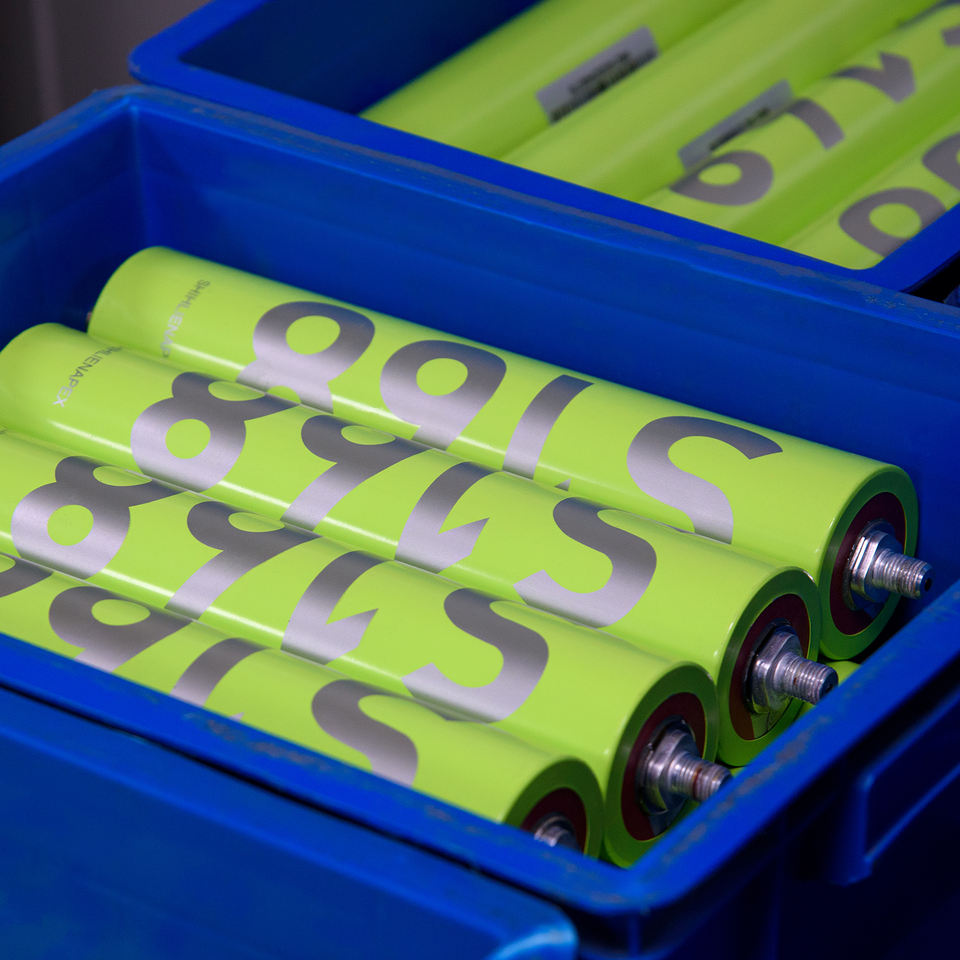

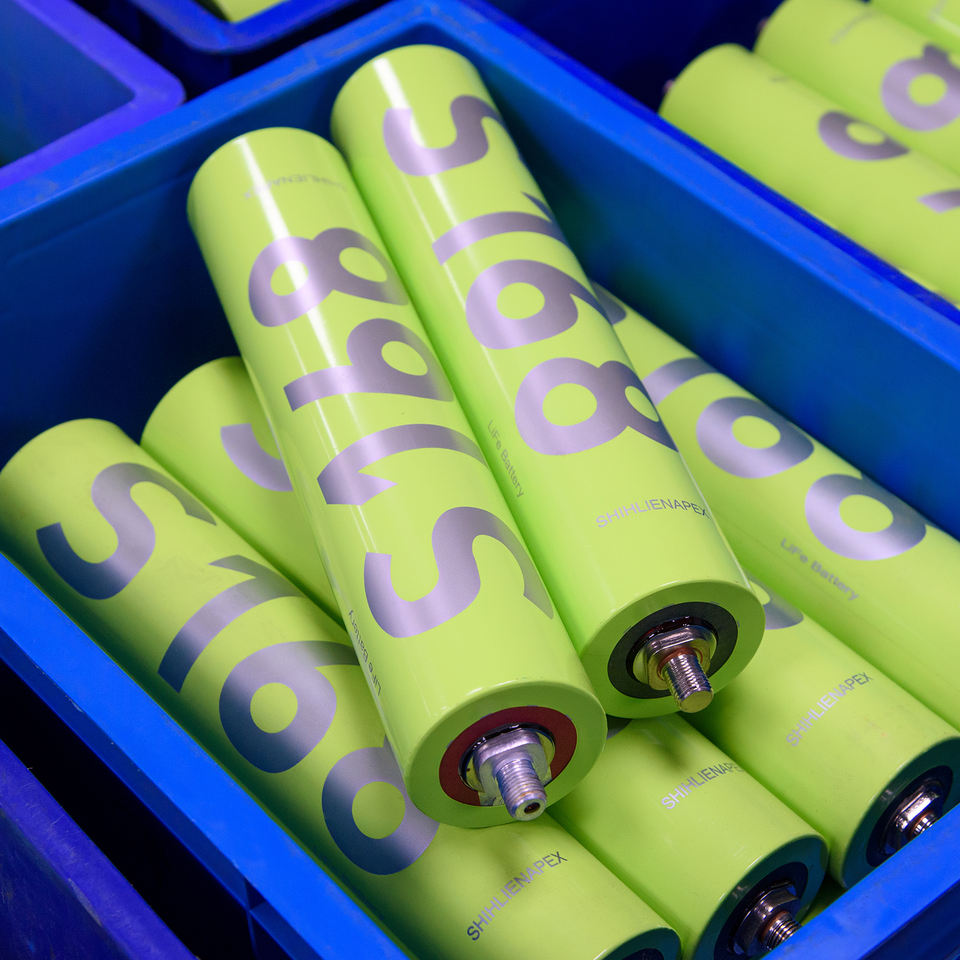

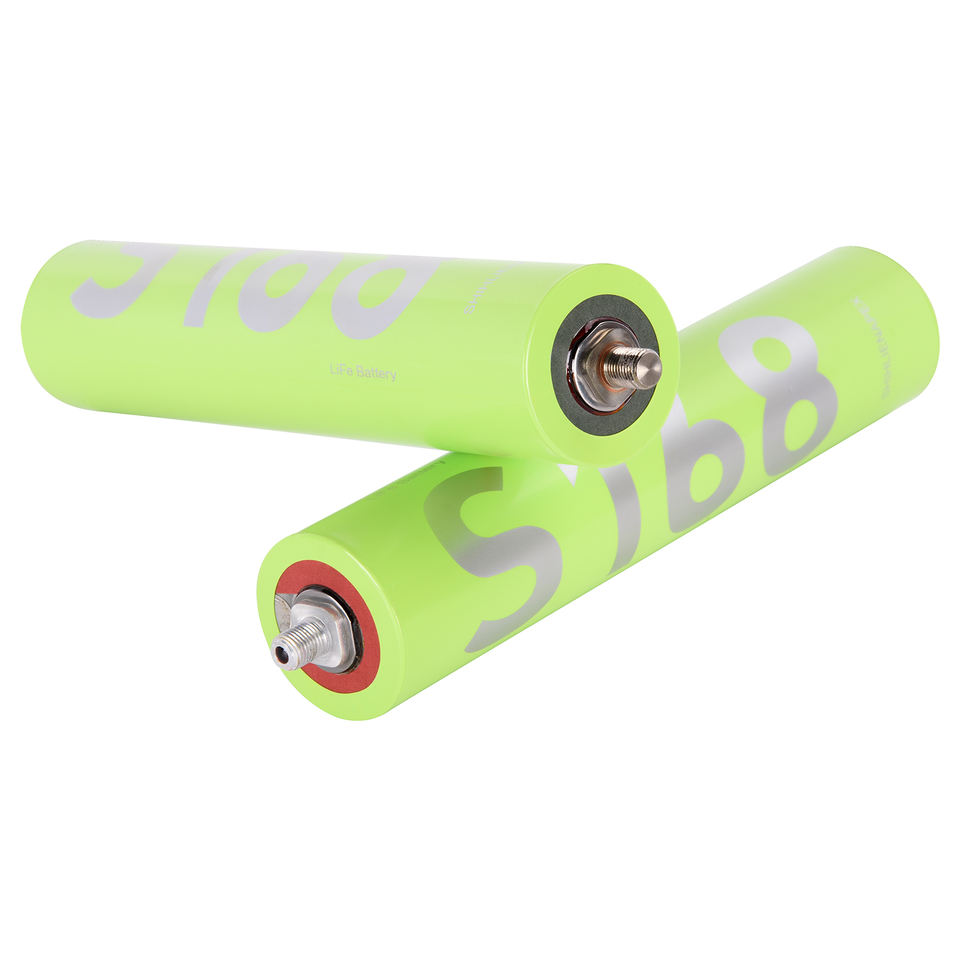

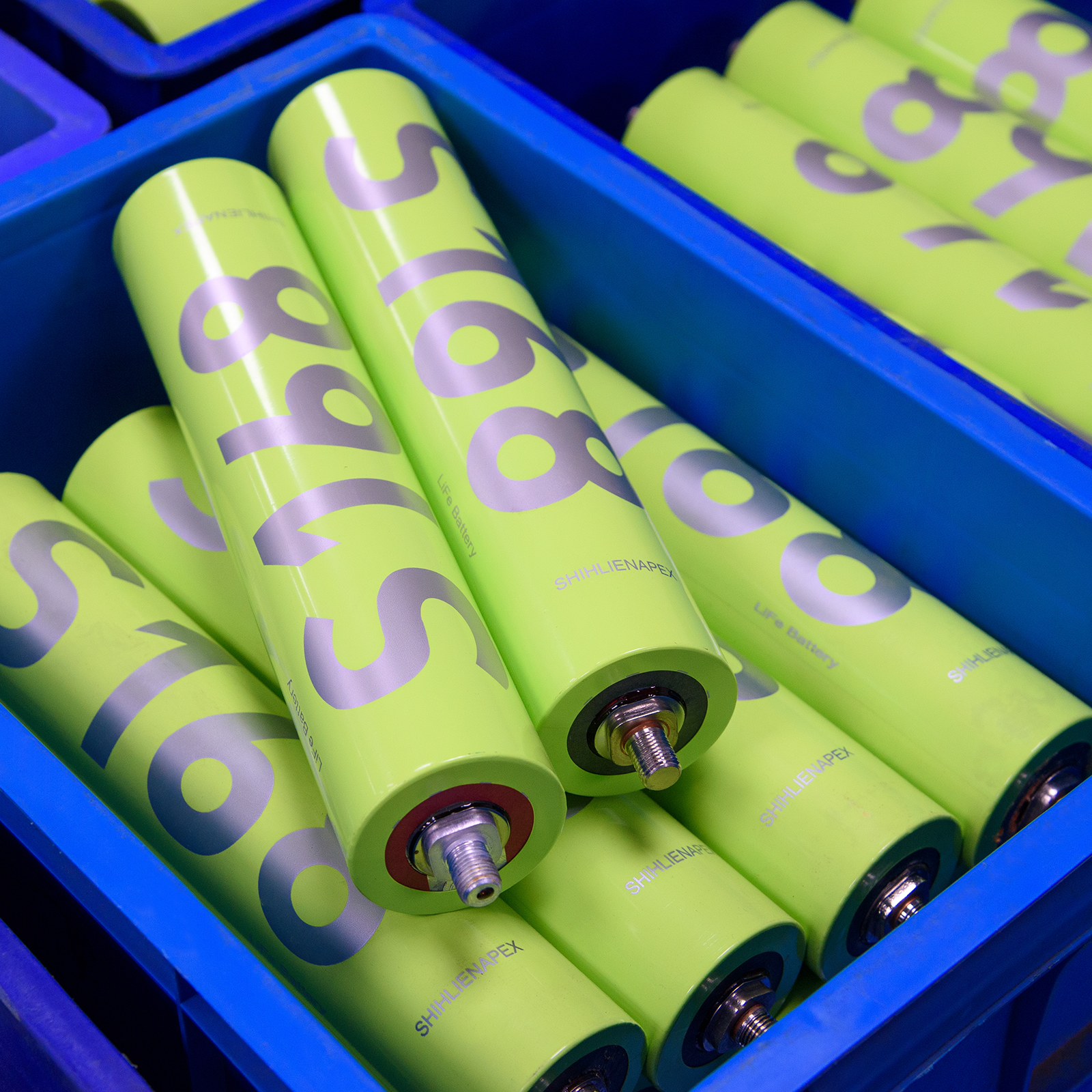

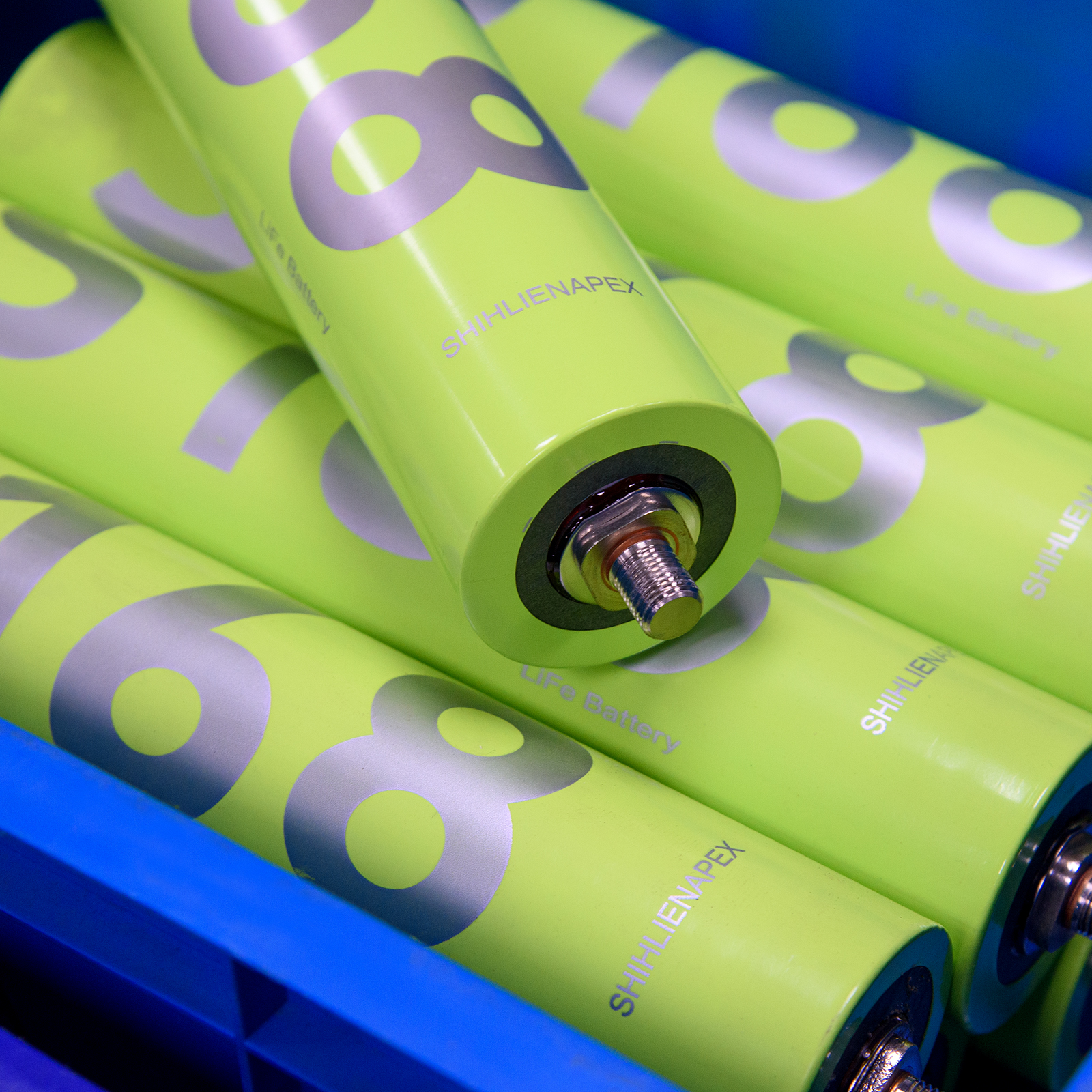

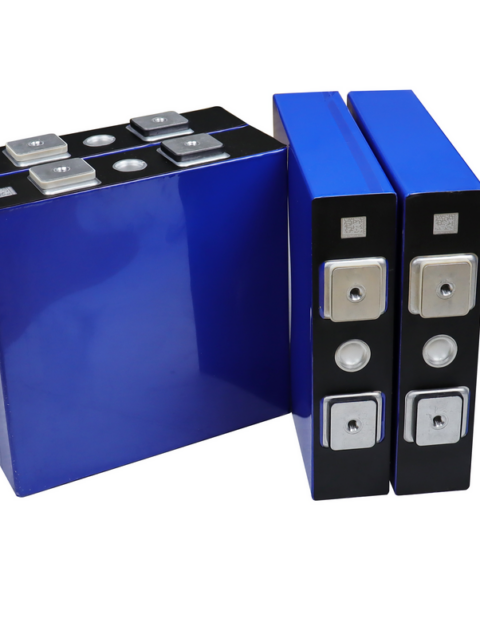

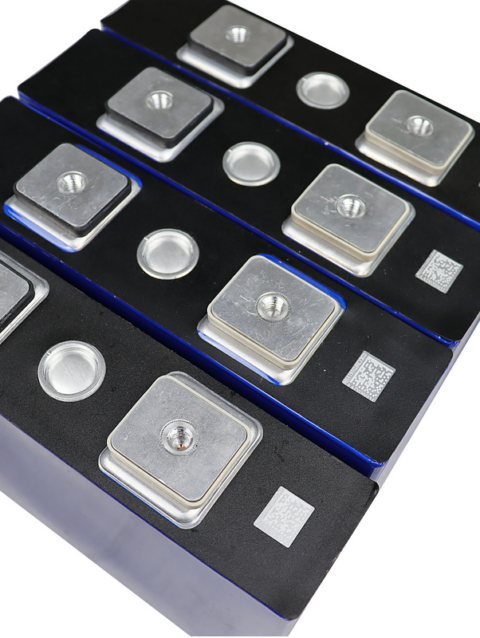

Details Images
