Hot Sale Electric Vehicle 36V 10ah Battery Pack for Ebike

Port:Shenzhen, China

Production Capacity:1000PCS/Week

Payment Terms:T/T, Paypal, Money Gram

Model NO.:FB-SF102

Rated Capacity:>1000MAH

Standard Voltage:36V

Usage:for Ebike

Electrolyte:Li-ion

Available Certificates:Ce, RoHS, FCC

Trademark:DeLong

Transport Package:Standard Export Package

Specification:390*110*76.6mm

Share:
Description
Specifications
Reviews
Description

Hot sale Electric Vehicle 36V 10ah Battery Pack for Ebike

Specification

Battery Model

  36v 10ah

Nominal Capacity (AH)

10Ah

Nominal Voltage (V)

36V

Source Resistance (mΩ)

about 40

Cell Specification

3.7V 2000mAh

Cell Combination

10S 4P

Cell Size

18650 lithium cell

Cell Quantity (parallel*series)

40pcs

Discharge Cutoff Voltage (V)

30 +/- 1V

Charge Cutoff Voltage (V)

42V

Rated Discharge Current (A)

10A

Instantaneous Maximum Discharge Current (A)

20A

Maximum Continuous Discharge Current (A)

30A

Maximum Continuous Charge Current (A)

5

Charge Mode

CC/CV

Standard Charge Current (A)

2A

Charge Time under Standard Charge Current

6

Fast Charge Current (A)

5A

Charge Time under Fast Charge Current

2.5

Charge Temperature Range

-20 – 60 °C

Discharge Temperature Range

-20 – 60 °C

Battery Size

Length: 385mm Diameter: 110mm

Battery Net Weight

3.25kgs, with package and charger 5.0KGS

Battery Gross Weight

5..00kgs

Product featurs

1. High operation voltage.2. High energy density. 3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).

4. Minimal self-discharge, less than 10% monthly.

5. Wide temperature range, operation from :-20°C~+60°C

6. Be charged & discharged at anytime because of non-memory.

7. Environmentally compatible.

8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking

experiment, with acupuncture, smash, drop, and so on.

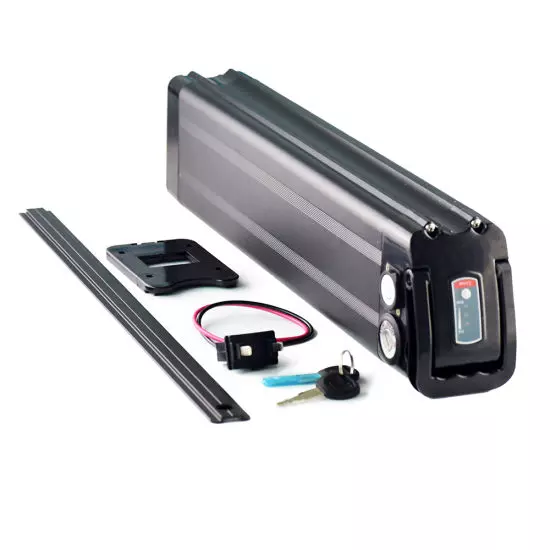

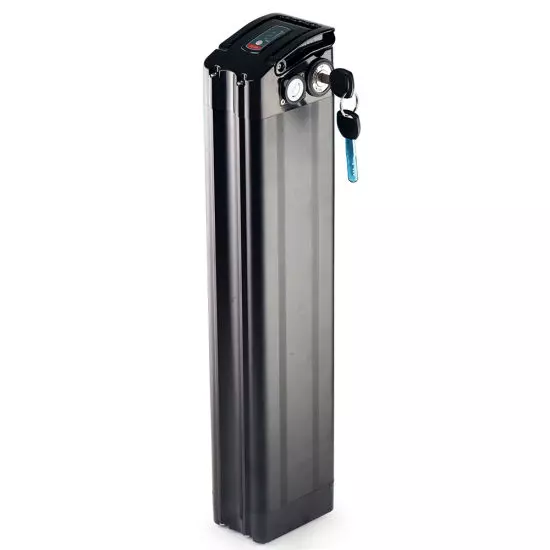

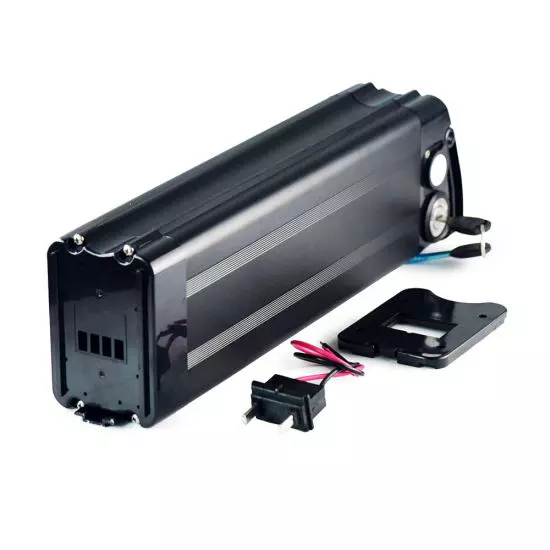

Product Show:
