| Nominal Capacity: | 100ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Internal Impedence: | none | Operating Votage: | 43.2V~58.4V |
| Dimension: | 480*160*560mm | Battery Weight: | 50kg |

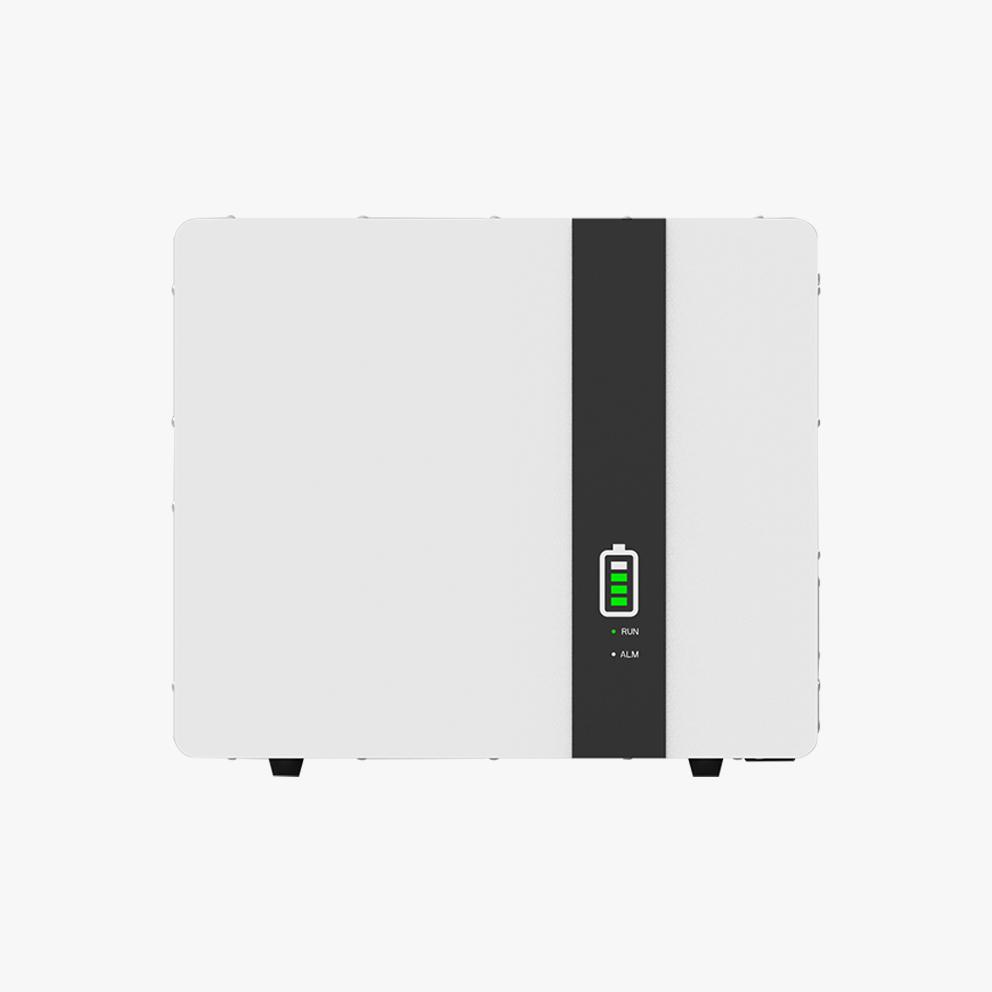

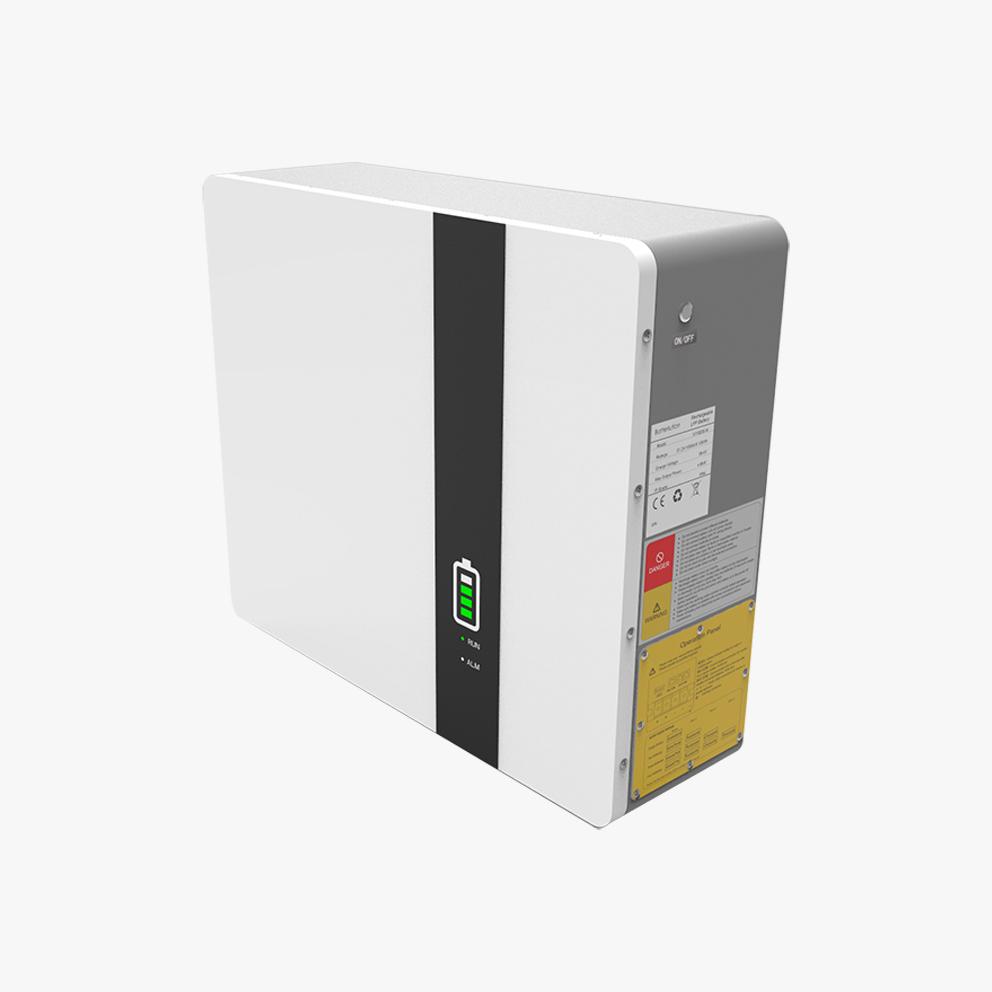

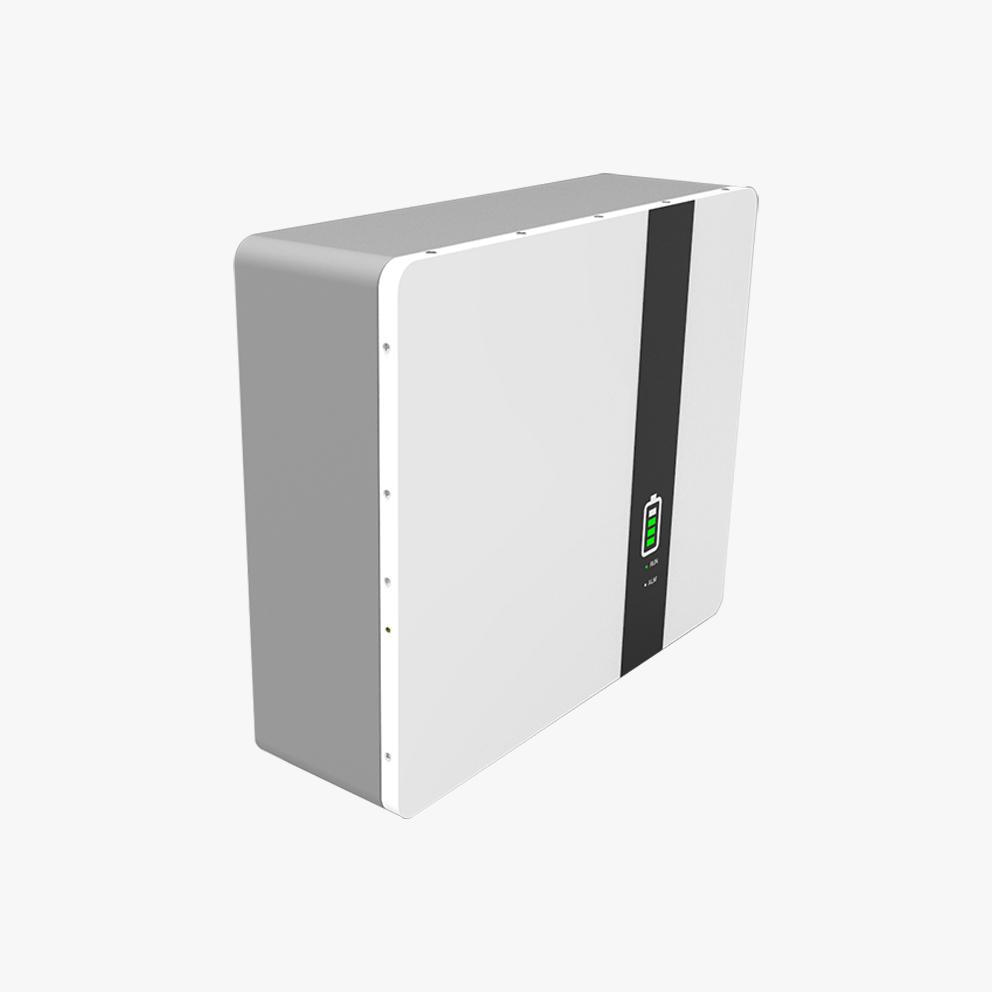

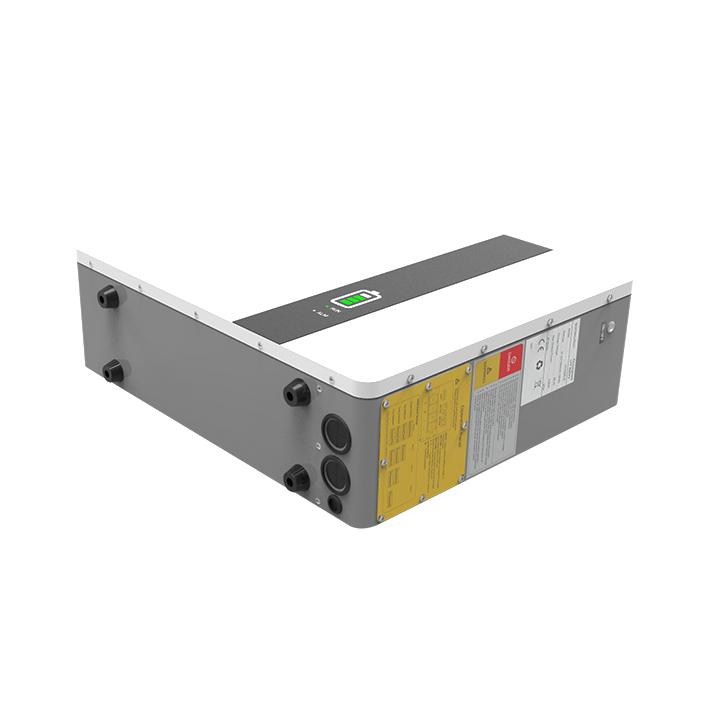

Home energy storage 48V 100Ah 5KW Wall mounted lithium LiFePO4 Battery
48v 100Ah is a Wall-mounted Lithium battery storage system. It is a perfect solar energy lithium battery for residential/private home use. 5 Kwh is the most popular energy device. 48v 100Ah power-wall mounted installation built-in with High-Quality LiFePo4 prismatic large capacity cells. It makes sure the battery system provides a high cycle-long life span. Inside is Energy storage designed BMS. It is already proven to be compatible with different brand inverters, whether on the grid or off-grid.
Features:
Built in BMS:
Battery modular with built in high quality BMS, protect battery cells all the way.
Scalable:
Battery modular is scalable for any larger storage system, allowed 8pcs in parallel.
Long life span:
15-20 years life design, Up to 6000+ cycle life.
Installation easy:

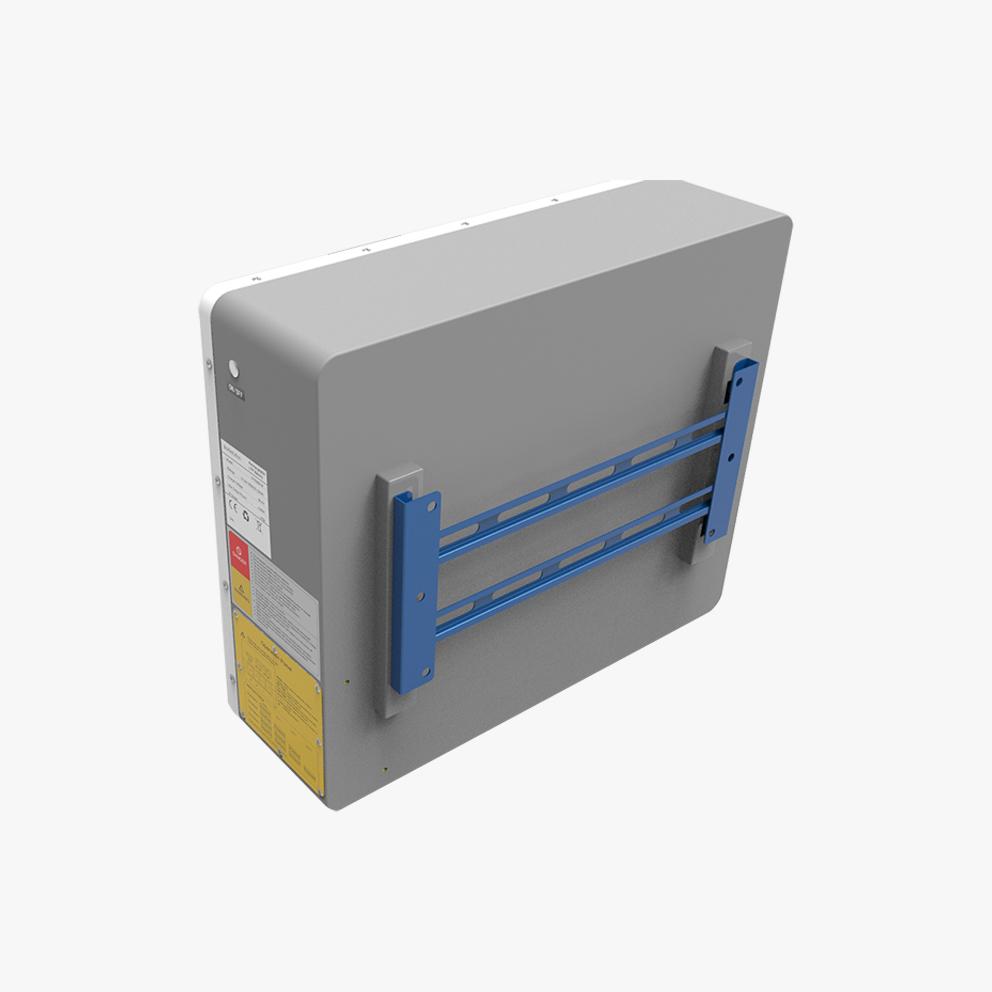

Wall mount or ground stack brick simply connecting to inverter, ready to enjoy.
OEM supported:
Low MOQ for OEM order, built your brand, much easier with OSM
Capacity Energy (Wh) | 5120Wh (Per Pack) |
Capacity (Ah) | 100Ah (Per Pack) |
Suggested SOC | 5%~95% |
Nominal Voltage (V) | 51.2V |
Operation Voltage (V) | 43.2V~58.4V |
Maximum Charging/Discharging Current (A) | 100A/100A Per Pack |
Operation Temperature (℃) | Charge: 0~45℃, Discharge: -20~45℃ |
Storage Temperature (℃) | -20~45℃ |
Weight (kg) | 50kg |
Dimension (mm) | 480*160*560mm |
Certifications | MSDS, UN38.3, RoHS, CE |
IP Grade | IP65 |
Number of Cycles | 6000 @25℃ 80%DOD |
Communication | RS232, RS485, CAN |
Module Capacity Energy | 25.6V 100Ah |
25.6V 200Ah | |
48V/51.2V 100Ah | |
48V/51.2V 200Ah | |
The maximum 8 battery packs can be parallelly communicated. |
