| Nominal Capacity: | 16000mAh(0.5C) | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | ≤8mΩ | Operating Votage: | 2v-3.65v |
| Dimension: | 40*160mm | Battery Weight: | Approve. 500g |
Product Description

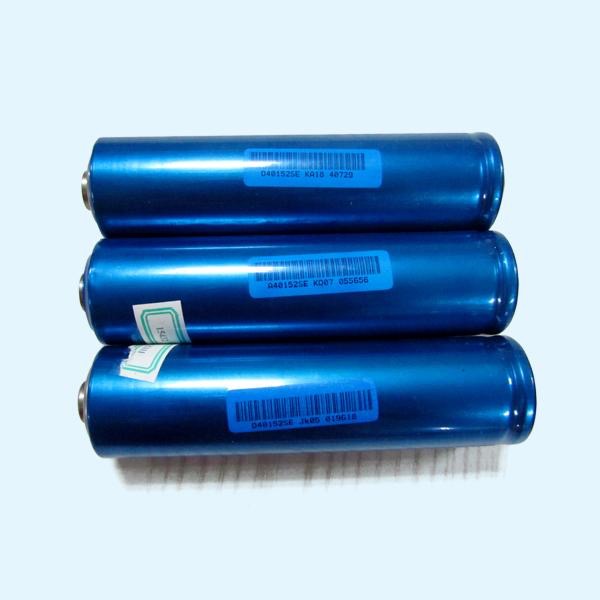

Headway LiFePO4 Battery is high power lithium iron phosphate battery. 10Ah 38120 Headway Battery,15Ah 40152 Headway Battery,16Ah 40160
No. | Item | Specification | |
1 | Normal Capacity | 16000mAh(0.5C) | |
2 | Item Normal Voltage | 3.2V | |
3 | Inter impedance | ≤8mΩ | |
4 | Maximum Charge Current | 5C（80A） | |
5 | Maximum Charge Voltage | 3.65±0.05V | |
6 | Maximum continuous Discharge Current | 10C（160A） | |
7 | discharge stop voltage | 2.0V | |
8 | dimension | Diameter | 40±1mm |
Height | 160 ±1mm | ||
9 | weight | Approve. 500g | |
10 | Work temperature | charge | 0~45℃ |
discharge | -20~60℃ | ||
11 | Store temperature | In one month | -20~45℃ |
In six month | -20~35℃ | ||
