| Nominal Capacity: | 17Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤4mΩ | Operating Votage: | 2.0~3.65V |
| Dimension: | 40*165mm | Battery Weight: | 485±5g |

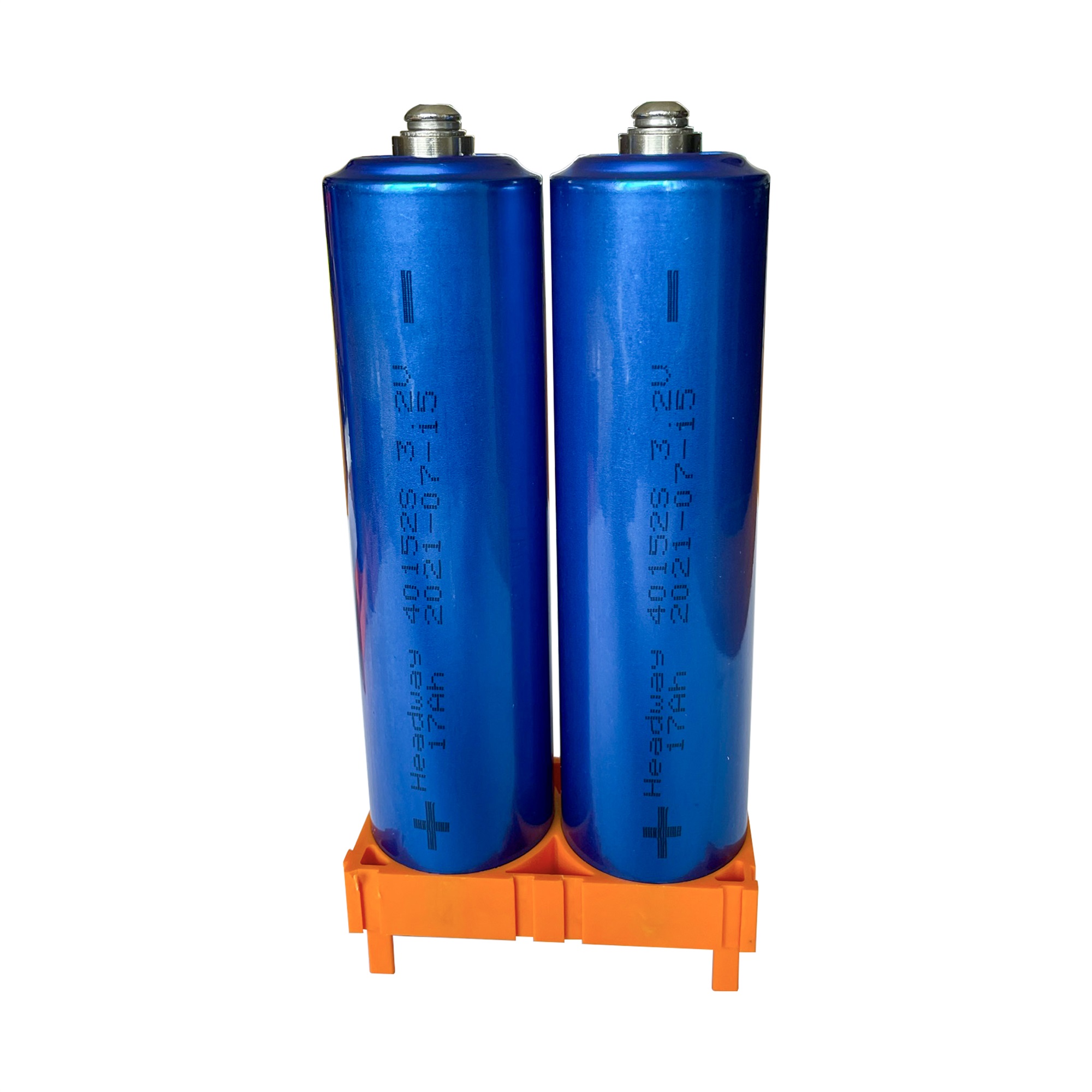

Headway 40152S 17Ah LiFePO4 Battery cells
Headway LiFePO4 Battery is a kind of high power lithium iron phosphate LiFePO4 cylindrical battery cell. Here are the models of 8Ah 38120Hp, 10Ah 38120, 15Ah/17Ah 40152S, 16Ah 40160 Headway LiFePO4 Battery Cells

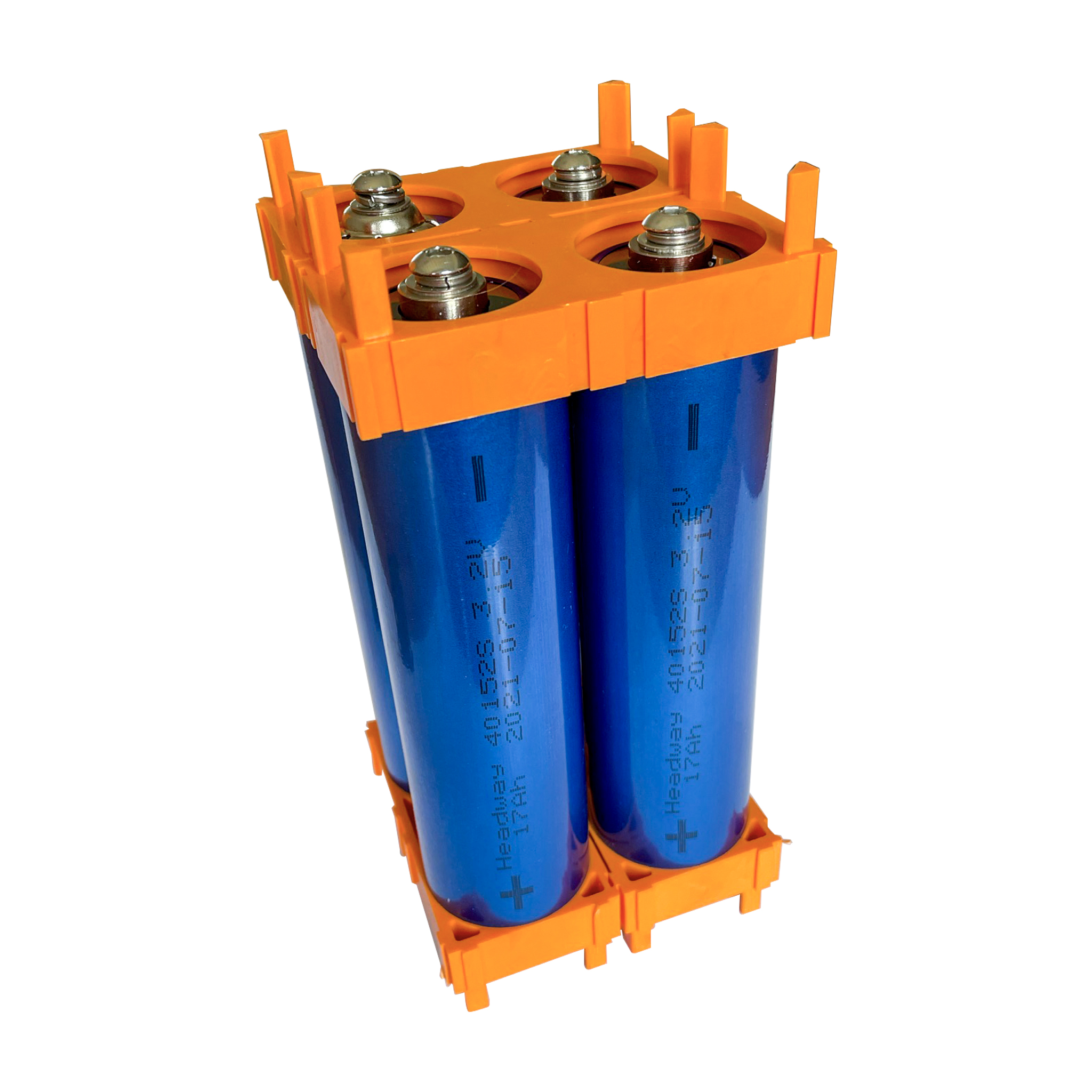

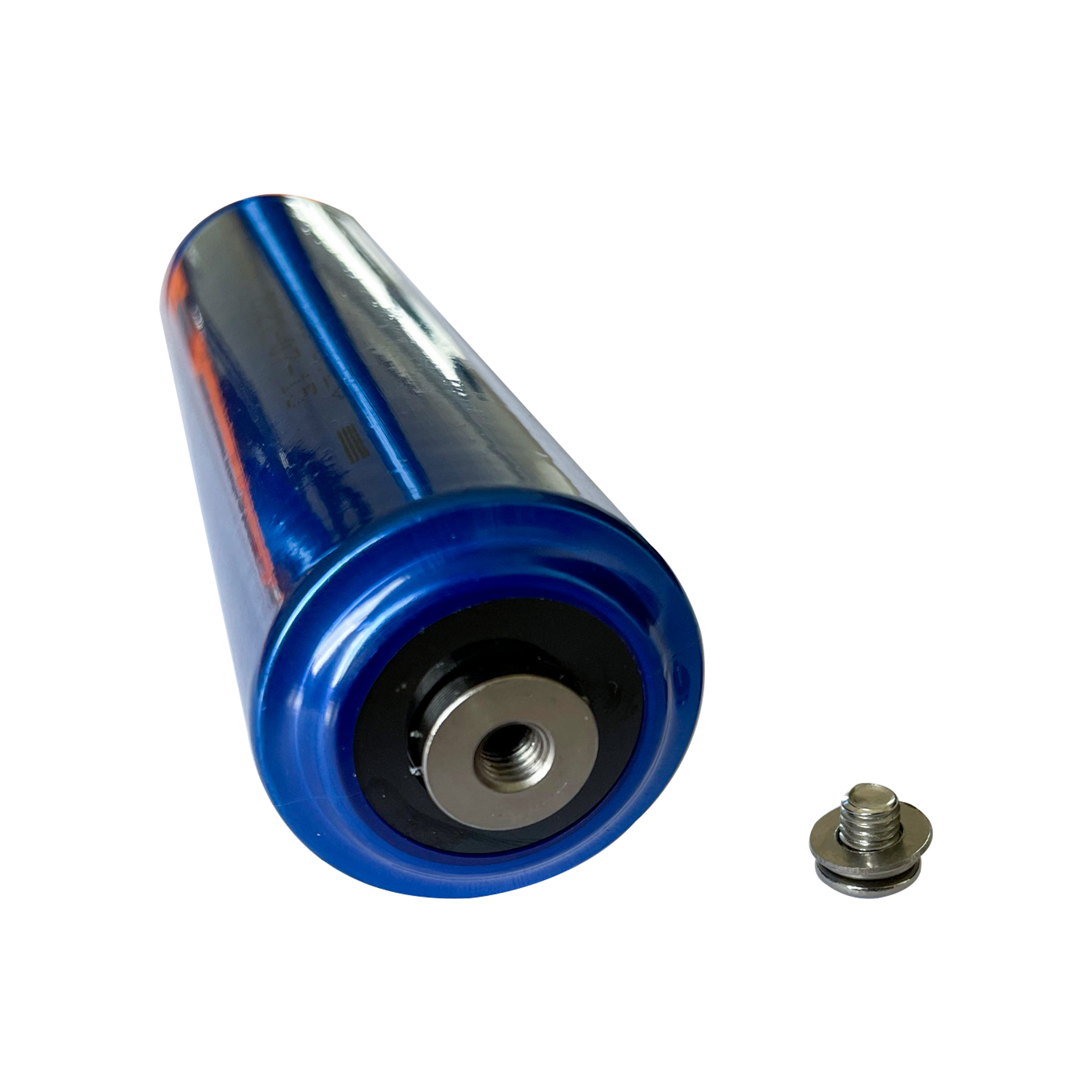

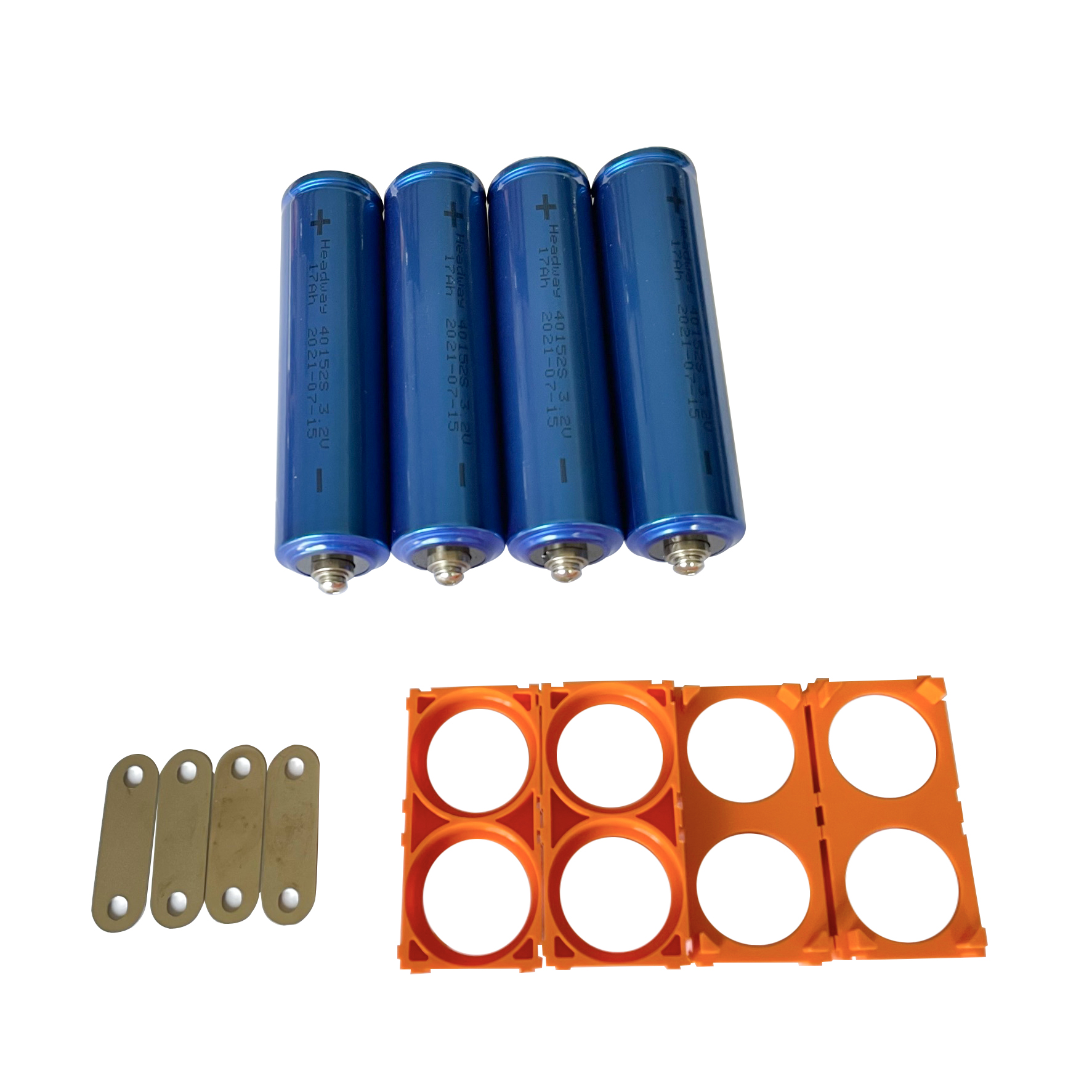

Headway 40152S has a very low resistance, high capacity, and with screw terminals which makes it much easierto be connected in series and/or parallel into larger packs.
Specifications of Headway 40152S 3.2V 17Ah LiFePO4 battery cells:
1. Nominal Voltage:3.2Volts.
2. Dimension:Diameter(mm) X High(mm) = 40±1mm X 165±1mm(with screw)
3. Capacity: >17Ah.
4. Maximal Charge Current: 17A
5. Maximal Continuous Discharge C-Rate: 34A
6. Maximal Discharge C-Rate: 102A
7. Overvoltage Protection: 3.65±0.05Volts.
8. Undervoltage Protection: 2.0Volts.
9. Lifecycle: 2000Cycles.
10. Weight: 485Grams.
11. Impedance: ≤4mΩ.
12. Chemical: LiFePO4
Item name | Technology parameter |
Nominal capacity | 17Ah(0.5c) |
Nominal voltage | 3.2v |
Internal resistance | ≤4mΩ |
Max.Charge Current | 17A(1C) |
Max.Charge voltage | 3.65±0.05V |
Max.discharge current(continuous) | 34A(2C) |
Max.Discharge current(pulse) | 170A(10C) |
End-off discharge voltage | 2.0V |
Dimension | Φ40±1mm*H152±1mm（H165±1mm） |
Weight | appro*.485g |
Cycle life | >2000times |
Operating temperature | -20~60℃ |
Storage temperature | One month: -20~40℃ |
Six months: -20~35℃ |
