| Nominal Capacity: | 15Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤8mΩ. | Operating Votage: | 2.0~3.65V |
| Dimension: | 40*165mm | Battery Weight: | appro*.480g |

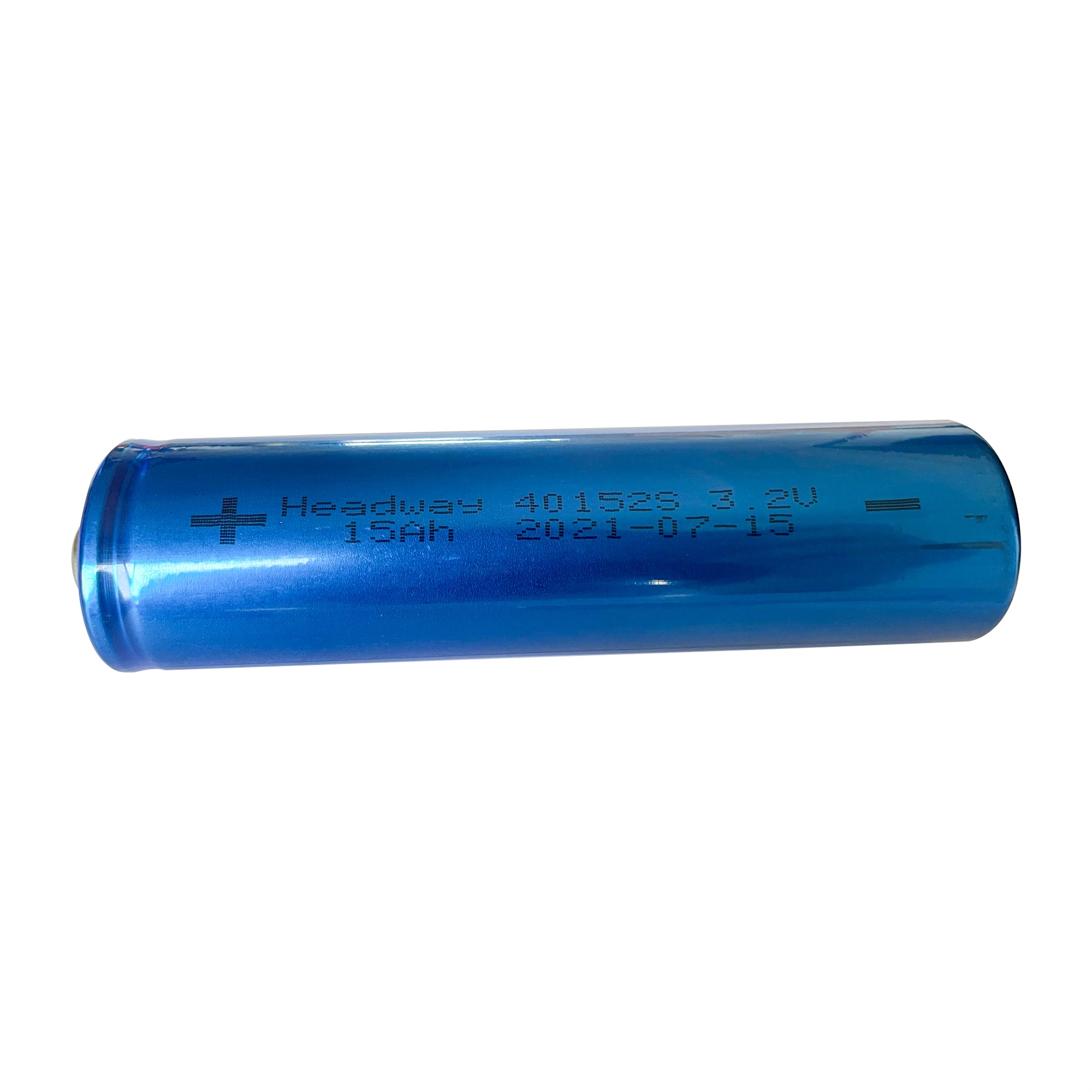

Headway 40152S 15Ah LiFePO4 Battery cells
Headway LiFePO4 Battery is high power lithium iron phosphate battery. 10Ah 38120 Headway Battery,15Ah, 17Ah 40152S Headway Battery,16Ah 40160 Headway Battery.

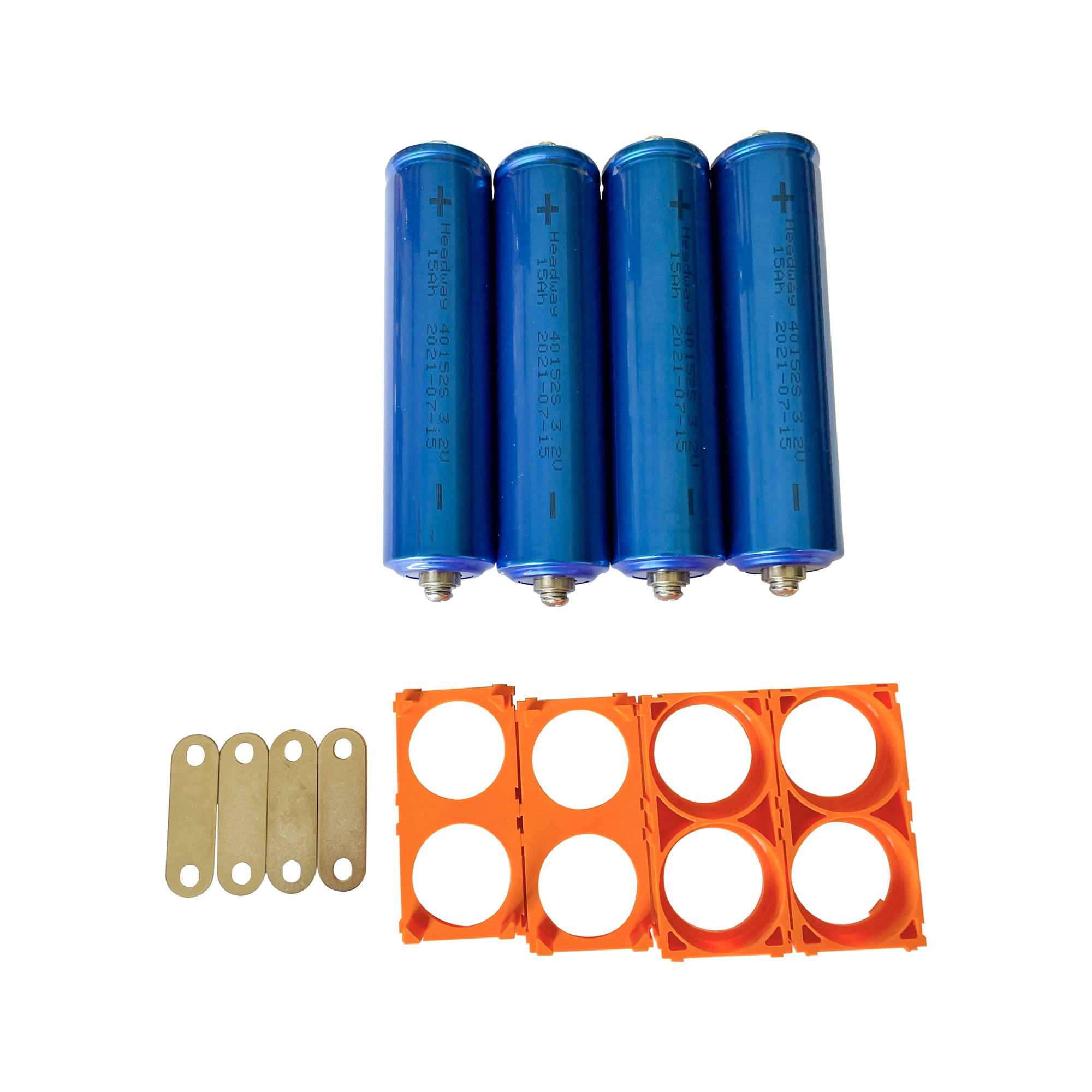

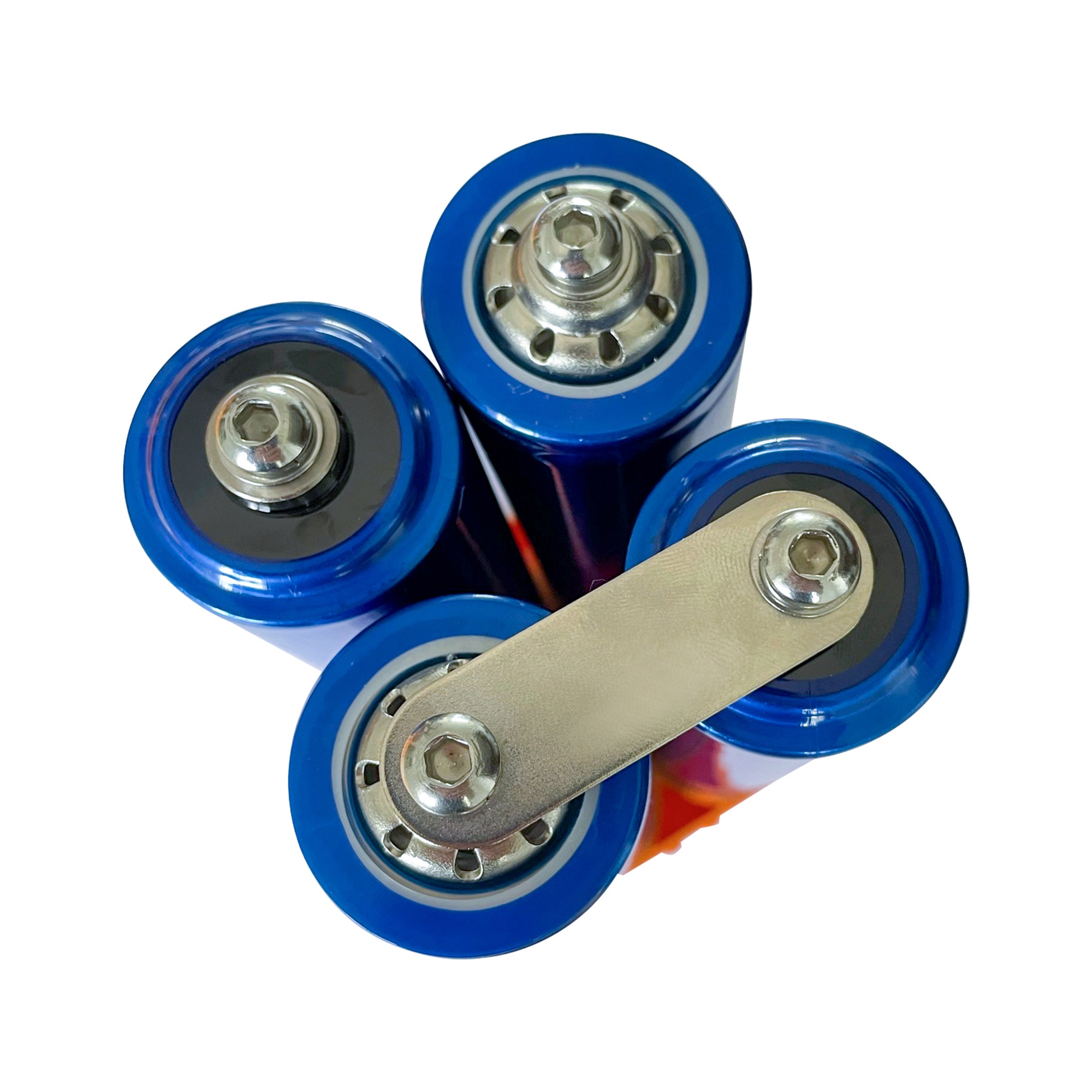

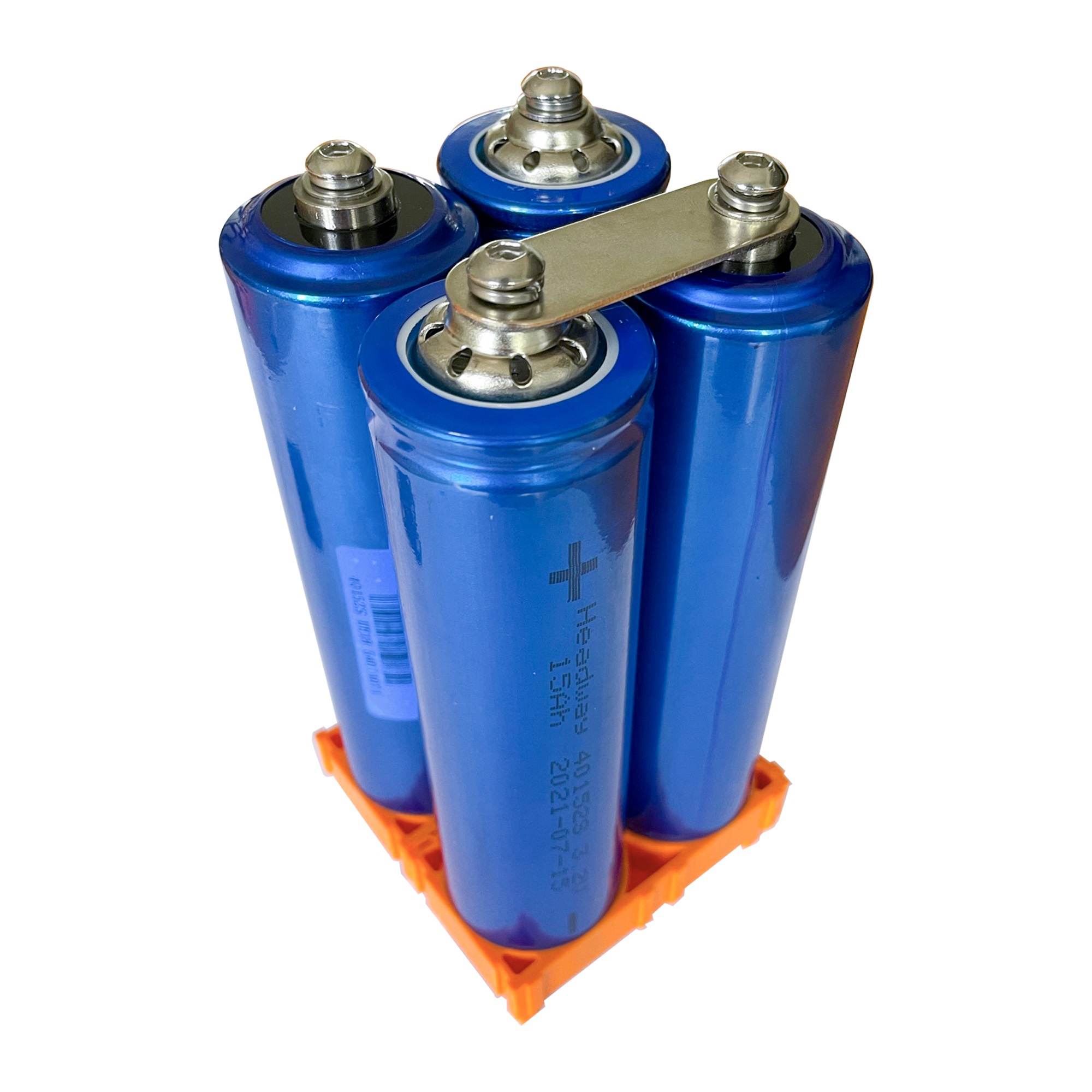

Headway 40152S have a very low resistance, high capacity, and with screw terminals which makes it much easierto be connected in series and/or parallel into larger packs.
Specifications of Headway 40152S 3.2V 15Ah LiFePO4 battery cells:
1. Nominal Voltage:3.2Volts.
2. Dimension:Diameter(mm) X High(mm) = 40±1mm X 165±1mm(with screw)
3. Capacity: >15Ah.
4. Maximal Charge Current: 3C(45Amps).
5. Maximal Continuous Discharge C-Rate: 10C(150Amps).
6. Maximal Discharge C-Rate: 15C(225Amps).
7. Overvoltage Protection: 3.65±0.05Volts.
8. Undervoltage Protection: 2.0Volts.
9. Lifecycle: 2000Cycles.
10. Weight: 480Grams.
11. Impedance: ≤8mΩ.
12. Chemical: LiFePO4
Item name | Parameter |
Nominal capacity | 15Ah(0.5c) |
Nominal voltage | 3.2v |
Internal resistance | ≤6mΩ |
Max.Charge capacity | 2C（30A) |
Max.Charge voltage | 3.65±0.05V |
Max.discharge current(continuous) | 3C(45A) |
Max.Discharge current(pulse) | 10C(150v) |
End-off discharge voltage | 2.0V |
Dimension | Φ40±1mm*H152±1mm（H165±1mm） |
Weight | appro*.480g |
Cycle life | >2000times |
Operating temperature | -20~60℃ |
Storagetemperature | One month:-20~40℃ |
Six months: -20~35℃ |
