| Nominal Capacity: | 8Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤4mOhm | Operating Votage: | 2.0~3.65V |
| Dimension: | 38*135mm | Battery Weight: | 335±5g |
Headway 38120hp 3.2V 8Ah high discharge rate LiFePO4 battery Cell
Headway LiFePO4 Battery is a high power lithium iron phosphate battery. There are 10Ah 38120 Headway Battery, 38120 hp 8ah Headway Battery,15Ah/17ah 40152S Headway Battery,16Ah 40160 Headway Battery.
Headway 38120Hp 3.2V 8Ah LiFePO4 Battery cell is kind of high power lithium lifepo4 battery with maximum 15C continuous discharge rate and more than 2000 times cycle life, used for EV and other with high discharge rate demand.
Steady performance Advantages of Headway 38120Hp
1. Super high cycle life
2. Higher energy density
3. Safety, no explosion
4. Lighter and smaller
5. No memory effect
6. Wider operation temperature
7. Higher peak power
Parameters of Headway 38120 HP lifepo4 battery
Item | Specification |
Nominal capacity | 8Ah @ 1C |
Minimum capacity | 7.5Ah @ 1C |
Nominal voltage | 3.2V |
Max Charging voltage | 3.65 ±0.05 V |
Discharge ending voltage | 2.5 ±0.05 V |
Charge current | Standard charge: 3C Max charge: 10C when T≥10 ℃ Max charge: 3C when 10 OC≥T≥0 ℃ Max charge: 0.1C when 0 OC≥T≥-10 ℃ |
Discharge current | Standard discharge: 5C Max continuous discharge: 15C Max instant (30s) discharge: 30C |
Charge and discharge cell surface temperature rise | 5C continuous discharge:≤15 ℃ |
Recommended charge and discharge | Charge: 0～45 ℃ Discharge: -20～60 ℃ |
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge: 60 ℃ |
Humidity range | 0～90%RH (non condensing) |
Internal resistance | ≤4mOhm (AC Impedance, 1000HZ) |

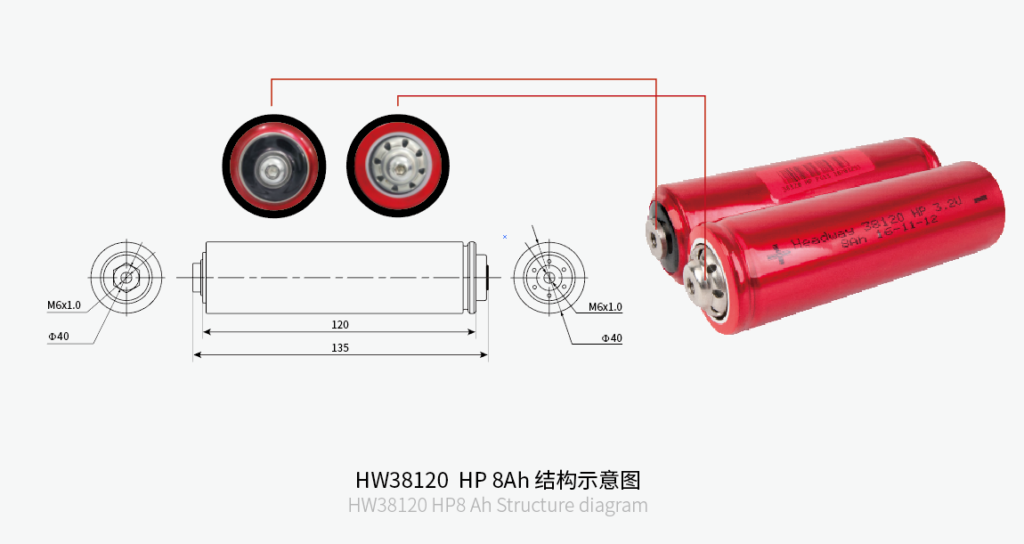

Cell dimension | Height: 136 mm Max Diameter: 38.5mm Max |
