| Nominal Capacity: | 205Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.5mΩ | Operating Votage: | 2.5V-3.65V |
| Dimension: | 220*173*54mm | Battery Weight: | ≤4.2kg |
Product Description

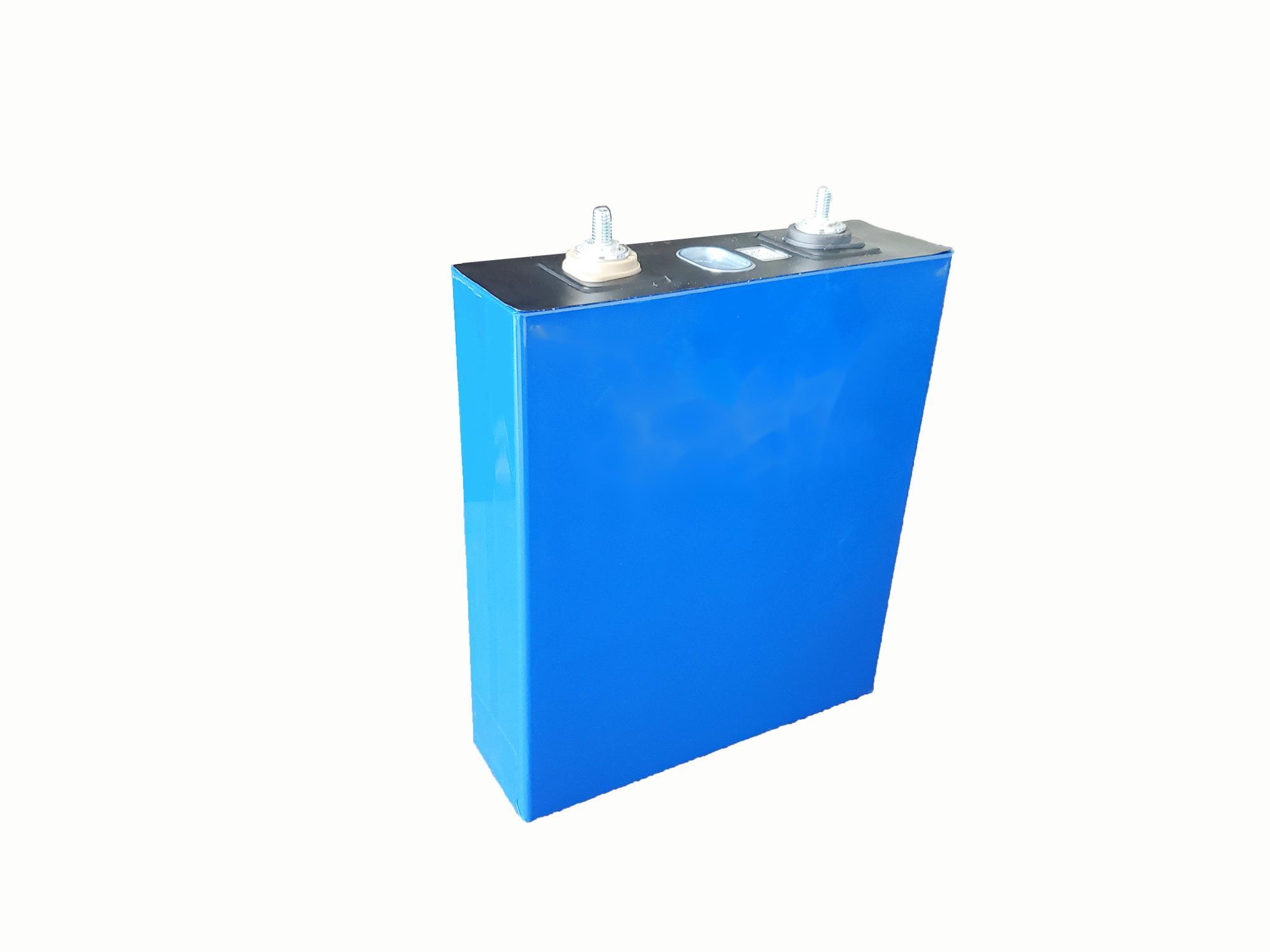

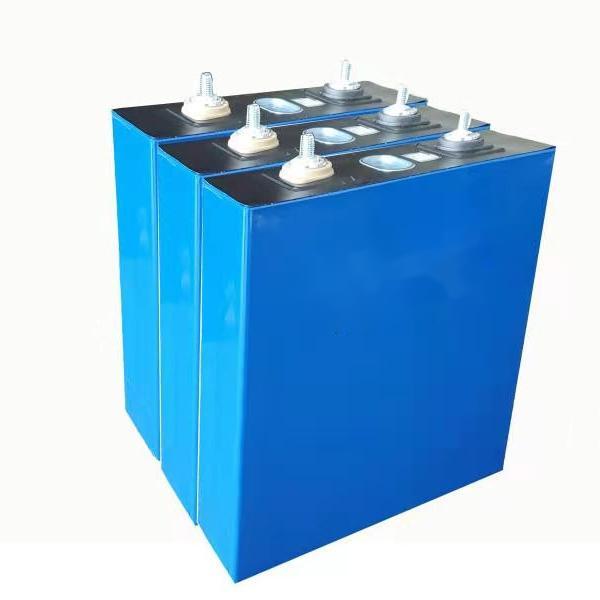

Grade A 3.2V 205Ah Lifepo4 Battery Fortune Battery
3.2V 205Ah LIFEPO4 Battery :
Battery Features :
High Energy Density
High capacity
Long Cycle Life
Discharge stability
Good consistency
Environment-Friendly
Applications :
Solar system
Energy storage (ESS)
Electric bus
Golf carts
RV
Battery dimension :
Parameters :
Typical Capacity | 205Ah |
Minimum Capacity | 203Ah |
Internal Impedance | ≤0.5mΩ |
Nominal Voltage | 3.2V |
Cell Weight | ≤4.2kg |
End-of-charge Voltage | 3.65V |
End-of-discharge Voltage | 2.5V |
Charge Method | 0.5C CC/CV |
Max Pulse Discharge current | 400A |
Max Continuous Discharge current | 200A |
Max Pulse charge current | 400A |
Standard charge current | 100A |
Cycle Life | ≥4000 cycles |
Height ( H ) | 220±5mm |
Width（L） | 173±1mm |
Thickness（T） | 54±1mm |
Shell Material | Aluminum |
