| Nominal Capacity: | 206ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | ≤0.40mΩ | Operating Votage: | 2.5~3.65V |
| Dimension: | 173.7*53.8*207.1mm | Battery Weight: | 4.20Kg |

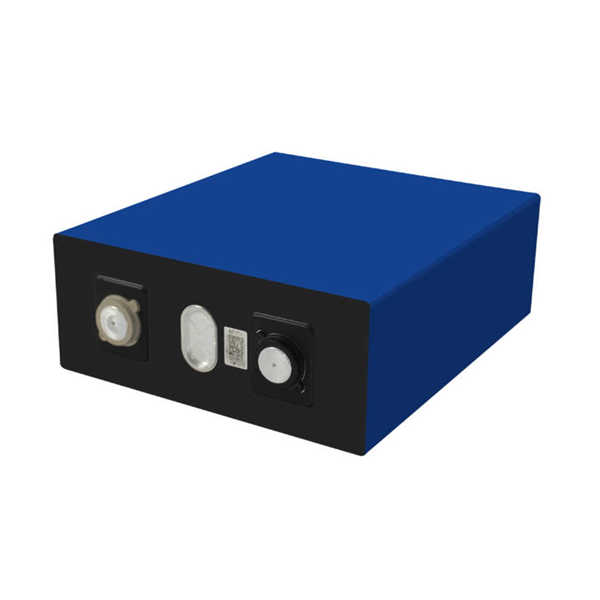

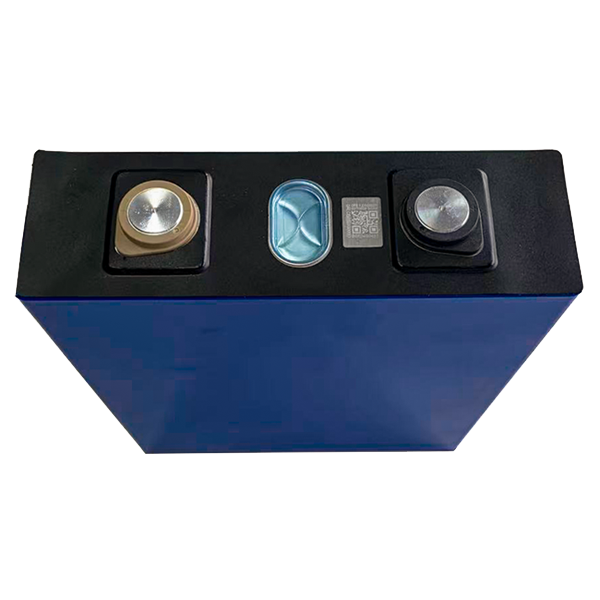

Ganfeng Battery: 3.2V 206Ah LiFePO4 Battery Cell
Industrial lithium cell with high energy density, made on the safe LiFePO4 technology, capacity 206Ah, Nominal voltage 3.2V, and operational voltage is 2.8-3.65V. This battery cell is suitable for all traction applications, including passenger cars. It fully complies also for stationary applications, such as energy storage.
Features of 206ah LiFeP04 Battery:
Low weight, High capacity
Extended Cycle life
Low Self Discharge
Superior Cranking Power
Completely Sealed
Environmental
Various DIY styles
No | Item | Parameter Specification | |
1 | Nominal Capacity | 206Ah | |
2 | Operating Voltage | 2.5~3.65V | |
3 | Internal Resistance | ≤0.40mΩ | |
4 | Shipping Capacity | 3~30% SOC | |
5 | Operating Temperature（Charging） | 0~60℃ | |
Operating Temperature (Discharging) | -20~60℃ | ||
6 | Charging(CC-CV) | Standard charging current | 0.5C |
Standard charging voltage | 3.65V | ||
Max continuous charging current | 1C | ||
7 | Discharging | Standard discharge current | 0.5C |
Maximum Discharging Current （Continuous） | 1C | ||
Maximum Pulse Discharging Current （Long Pulse） | 2C | ||
Maximum Pulse Discharging Current （Short Pulse） | 3C | ||
8 | Storage Humidity | < 70% | |
9 | Battery Weight | 4.20Kg | |
10 | Shell Material | Aluminum | |

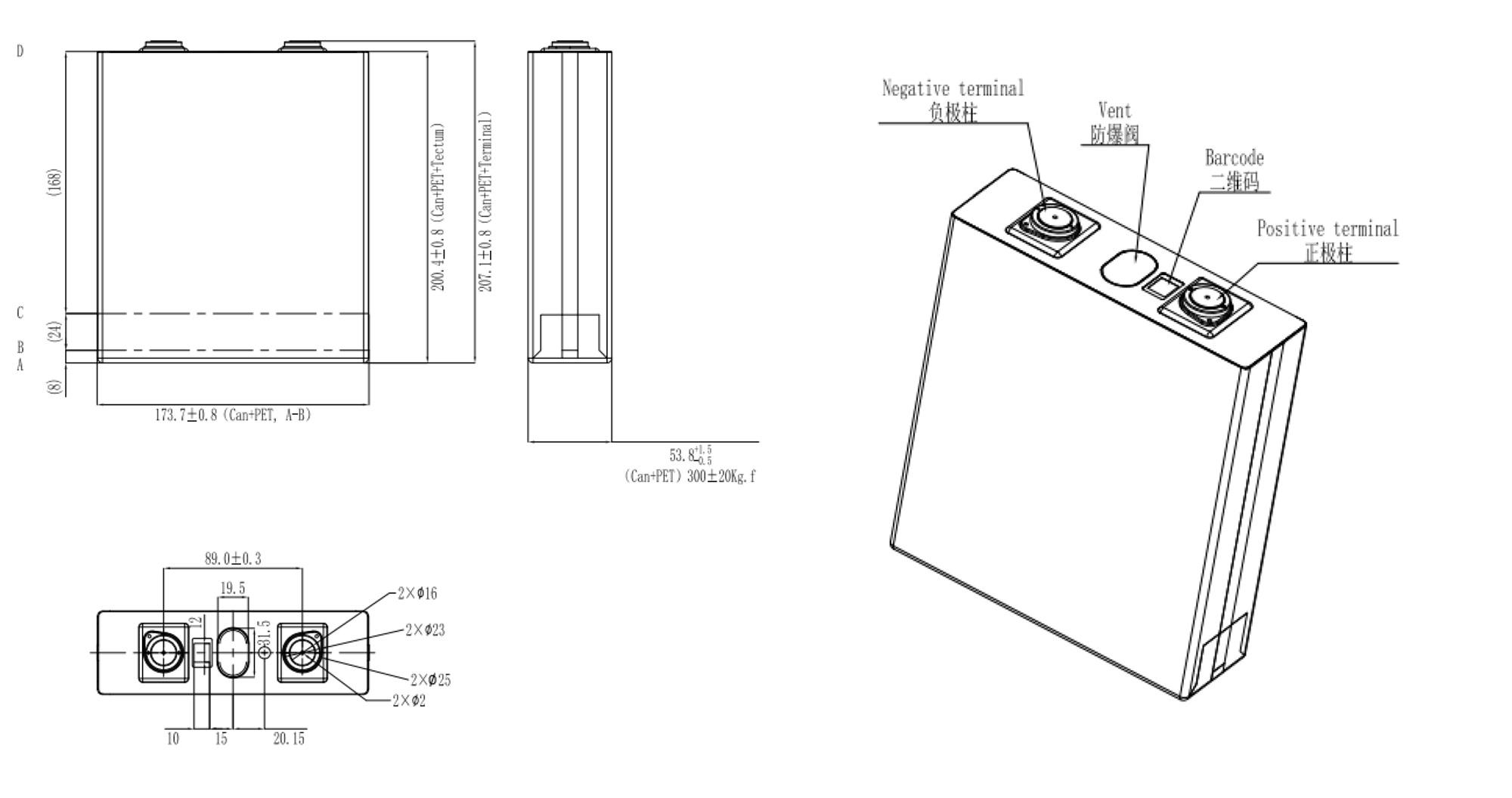

11 | Cell Dimensions | 173.7*53.8*207.1mm | |
