| Nominal Capacity: | 200Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.35mΩ | Operating Votage: | 3.2V |
| Dimension: | 142*57*489±2mm | Battery Weight: | 5.7±0.2kg |
GBS 3.2V 200Ah Lithium Prismatic Lifepo4 Cells
Model:GBS-LFP200AHA
Nominal Voltage:3.2V
Nominal Capacity:200Ah
Internal Resistance:≤0.35mΩ
Dimensions:142*57*489±2mm
Weight:5.7±0.2kg
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature. The battery structure is safe and good.
(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform
well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Product Description
No | Item | Parameter Specification |
1 | Model | GBS-LFP200Ah-A |
2 | Nominal Capacity | 200Ah |
3 | Minimum Capacity | 200Ah |
4 | Nominal Voltage | 3.2 V |
5 | Internal Resistance | ≤0.35mΩ |
6 | Standard Charge | 0.25C |
7 | Fast Charge | 1.0C |
8 | End of Charge | 3.55V |
9 | Standard Discharge | 0.5C |
10 | Max Discharge | 1.0C |
11 | Instantaneous Discharge | 3C(10s) |
12 | End of Discharge | 2.5V |
13 | Working Temperature | -20~60℃ |
14 | Cycle Life | >3000 cycles（0.5C） |
15 | Battery Weight | 5.7±0.1kg |
16 | Shell Material | Plastic shell/PP |
17 | Cell Dimensions | 142X57X489±2mm |

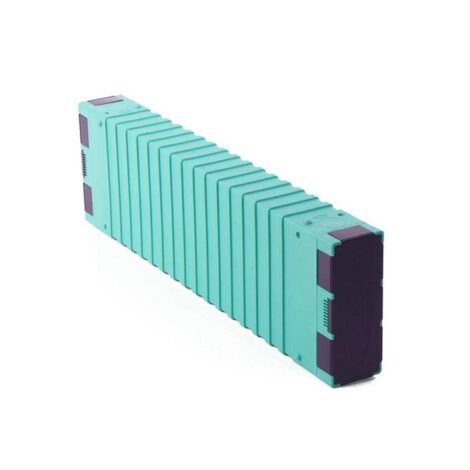

Detailed Images
