| Nominal Capacity: | 400Ah | Nominal Voltage: | 12V |
|---|---|---|---|
| Internal Impedence: | ≤0.5mΩ | Operating Votage: | 14.2V |
| Dimension: | 365*316*312mm | Battery Weight: | 54.5Kg±200g |
GBS 12V 400Ah LFP400AHA-B prismatic lifepo4 battery
– Operation Voltage Range: 11.2 to 14.6V
– Max Charging Current: 1C
– Max Discharge Current: 1C (continuous) / 3C (pulsed)
– Cycle Life : >3000 (80%DOD)
– Operating Temperature: -20 to 65℃
– Charging Temperature Range: 0C to 65℃
– Discharge Temperature Range: -20C to 65℃
– Self Discharge Rate:<3% monthly
– Accessories included: jumpers, bolts or rivets, washers, split washers and cell covers
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature. The battery structure is safe and good.
(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.

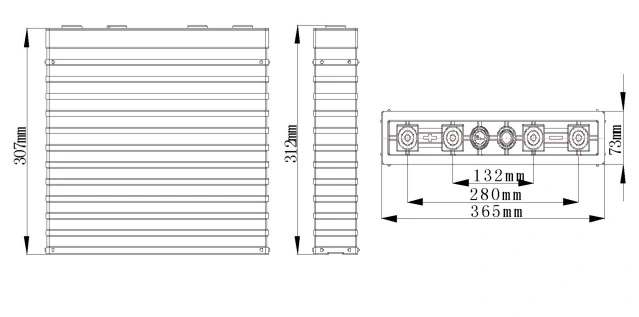

Detail images
Item | Description | Dimensions |
L | Length | 365mm |
W | Width | 316mm |
H | Height | 312mm |
Parameters
Item | Specification | Remark | |
Rated capacity | 400Ah | 0.2C rate discharge capacity | |
Minimum capacity | 400Ah | ||
Internal impedance | ≤0.5mΩ | ||
Nominal voltage | 12.8V | ||
Cell weight | 54.5Kg±200g | ||
Standard discharge conditions | Constant current | 200A | |
End-of-discharge voltage | 11.2V | ||
Standard charge method | Constant current | 200A | |
Charge voltage | 14.6V | ||
Fast charge method | Constant current | 400A | |
Charge voltage | 14.2V | ||
Max continuous discharge current | 3C(10S) | ||
Cycle life | 3000 cycles | 80% DOD | |
Operating temperature | Charging ambient temperature | 0~65°C | |
Discharging ambient temperature | -20~65°C | ||
Storage temperature | -20~65°C | ||
Matters needing attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit, do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 12.8V-13.2V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevant connection which fixed with screws.(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
