Specification and Paraments

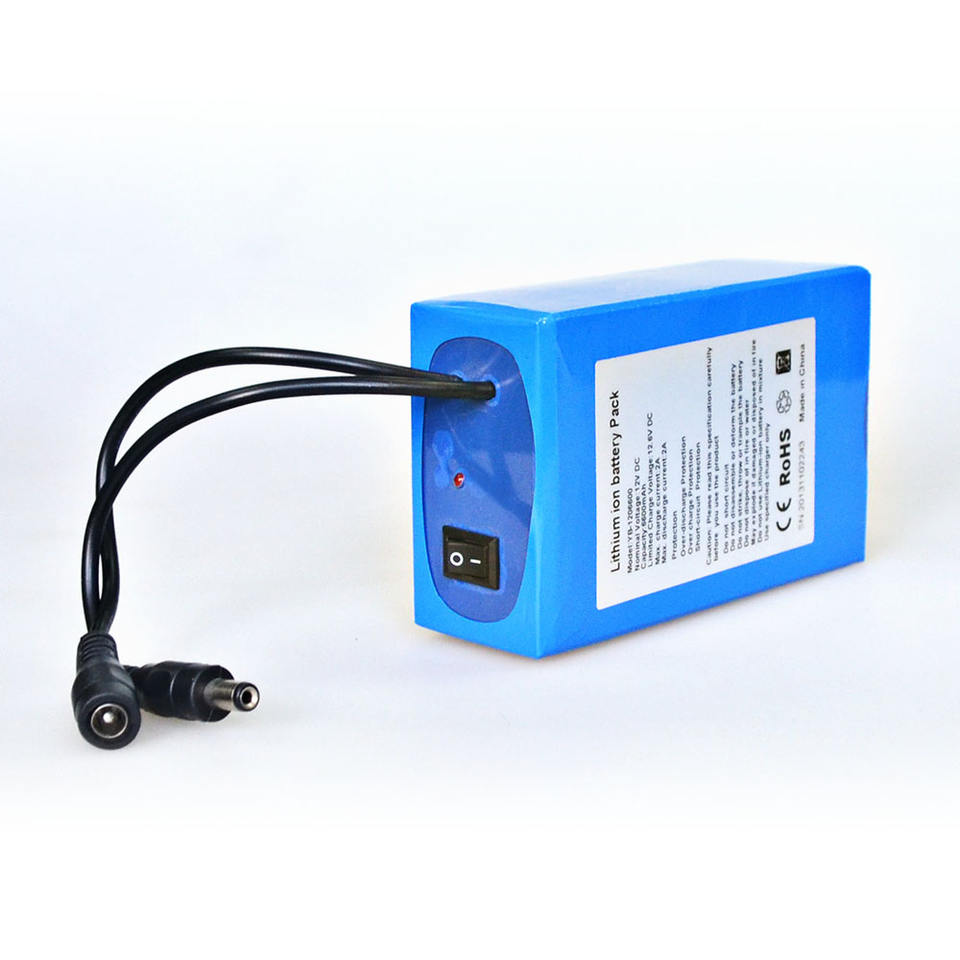

| model | YB1202200PV |
| type | Li-ion battery with PCM |
| Nominal voltage | 12 volt |
| Typical capacity | 2200 |
| Input | 12.6 v |
| Out-put | 12.6-9V |
| Max continuous charge/discharge current | 2.5A(adjustable) |
| Charger Included | 2A charger:US plug/EU plug/UK plug |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
| Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
| Recharge cycle | More than 500 times |
| LED Indicator | Available |
| ON/OFF Switch | Available |
| Key word | 12v battery with charger |
| Standard Charge Time | Around 5H |
| Dimension | 19*70*56 |
| Weight(approximate) | 185g |
| Operating temperature | -20 °C to 60 °C |
| Charge temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to 45 °C |
| Operating humidity | 5% to 90%,non-condensing |
