| Nominal Capacity: | 50Ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | ≤0.5mΩ | Operating Votage: | 2.0-3.65V |
| Dimension: | 135*29.3*185mm | Battery Weight: | 1395±50g |

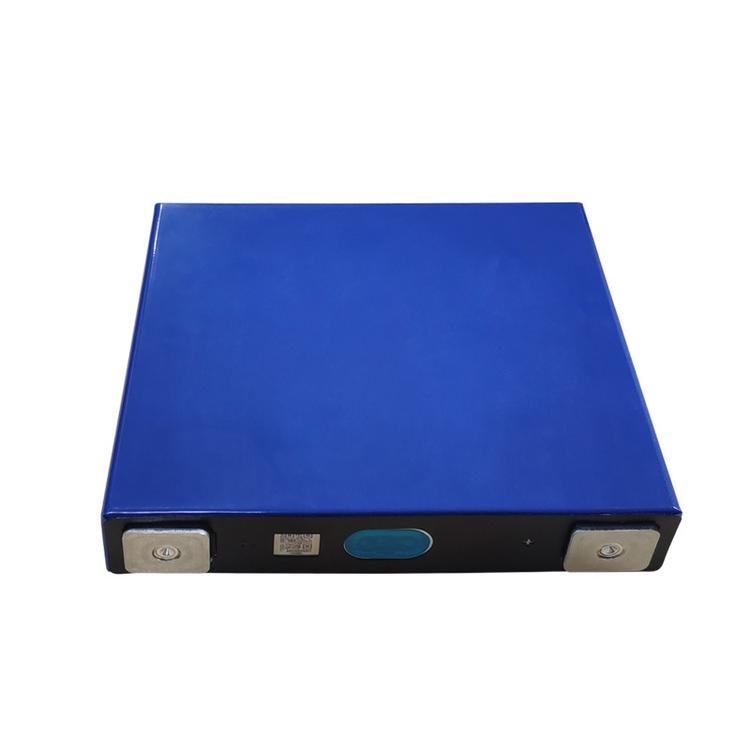

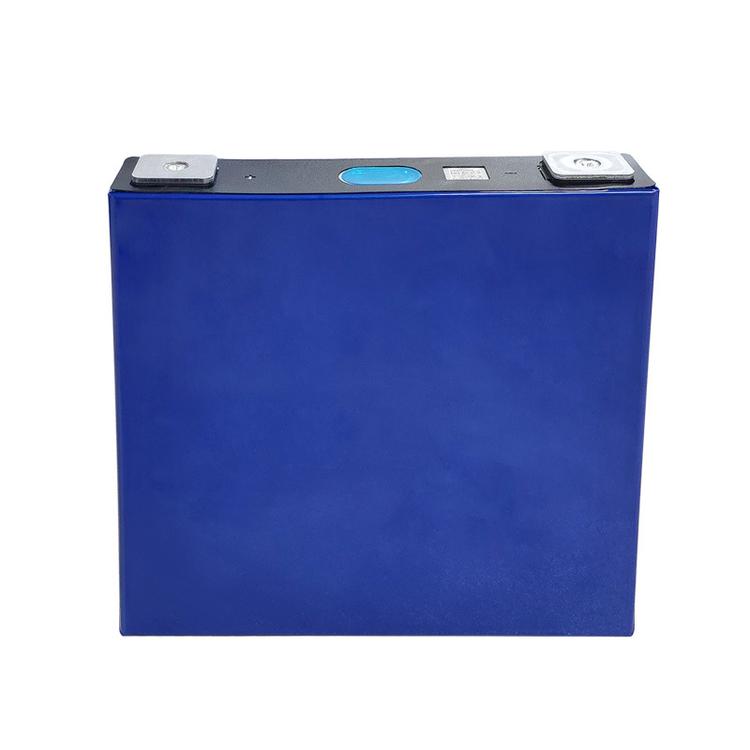

EVE Lifepo4 3.2V 50ah Power Lithium ion Battery for RV/solar system storage
Nominal Voltage:3.2V
Nominal capacity:50Ah
Working voltage:2.5V~3.65V
AC impedance resistance:≤0.7mΩ
Dimension:135*29.3*185mm
Item | Parameter | Size |
W | Width | 135±1mm |
T | Thickness | 29.3±0. 7mm |
H | High（total） | 185±1mm |
H1 | High（subject） | 180±1mm |
D | Tabs Distance | 67.5±1.0mm |
The pole column is the double aluminum pole structure with the M4 internal thread mode.
The effective thread hole depth is 6mm, and the batteries should be connected by laser welding.
No. | Item | Parameter | |
1 | Average capacity Minimum capacity | 54Ah 53Ah | |
2 | Nominal capacity | 50Ah | |
3 | Nominal voltage | 3.2V | |
4 | Working voltage | 2.5V~3.65V | |
5 | AC impedance resistance | ≤0.7mΩ | |
6 | SOC of shipment | 30%~40%SOC | |
7 | Standard charge | Charge/Discharge current | 0.5C/0.5C |
Cut off voltage of charge/discharge | 3.65V/2.5V | ||
8 | Max charge | Continuous charge | 3C |
Pulse charge (30s) | 5C | ||
9 | Max discharge | Continuous discharge | 3C |
Pulse discharge (30s) | 5C | ||
10 | Recommend SOC window | 10%～90%SOC | |
11 | Charging temperature | 0℃～55℃ | |
12 | Discharging temperature | -20℃～55℃ | |
13 | Storage temperature | One month | -20℃～45℃ |
One year | 0℃～35℃ | ||
14 | Self-discharge rate | ≤3﹪/month | |
15 | Weight | 1395±50g | |

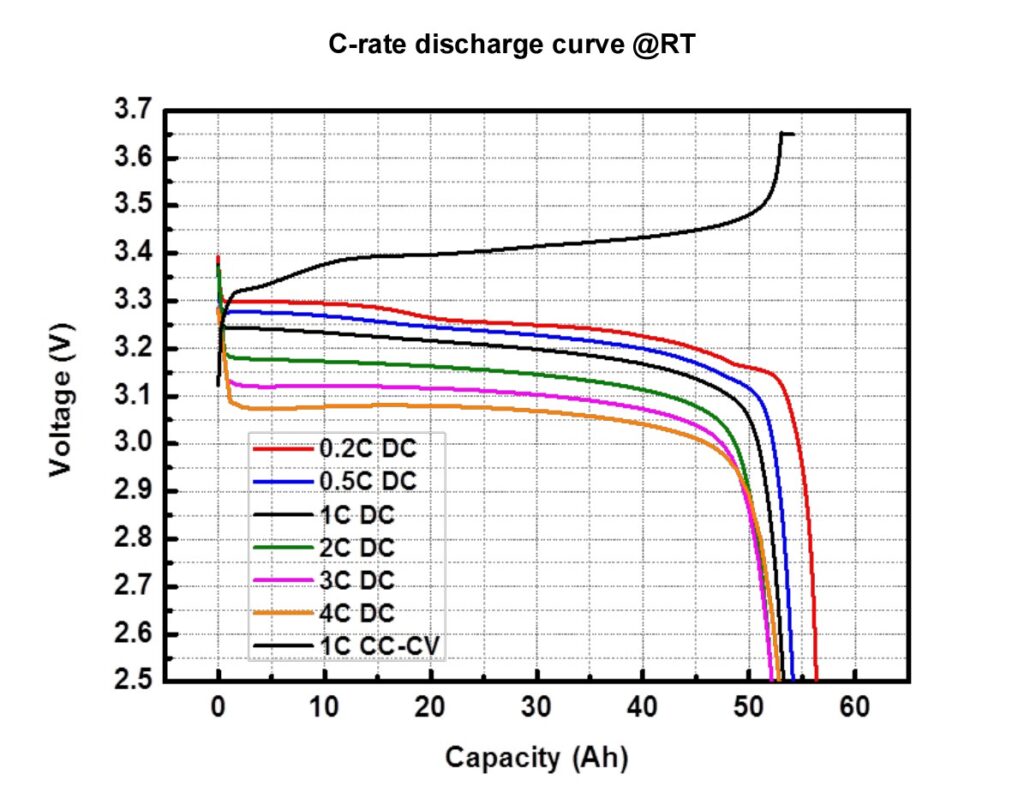

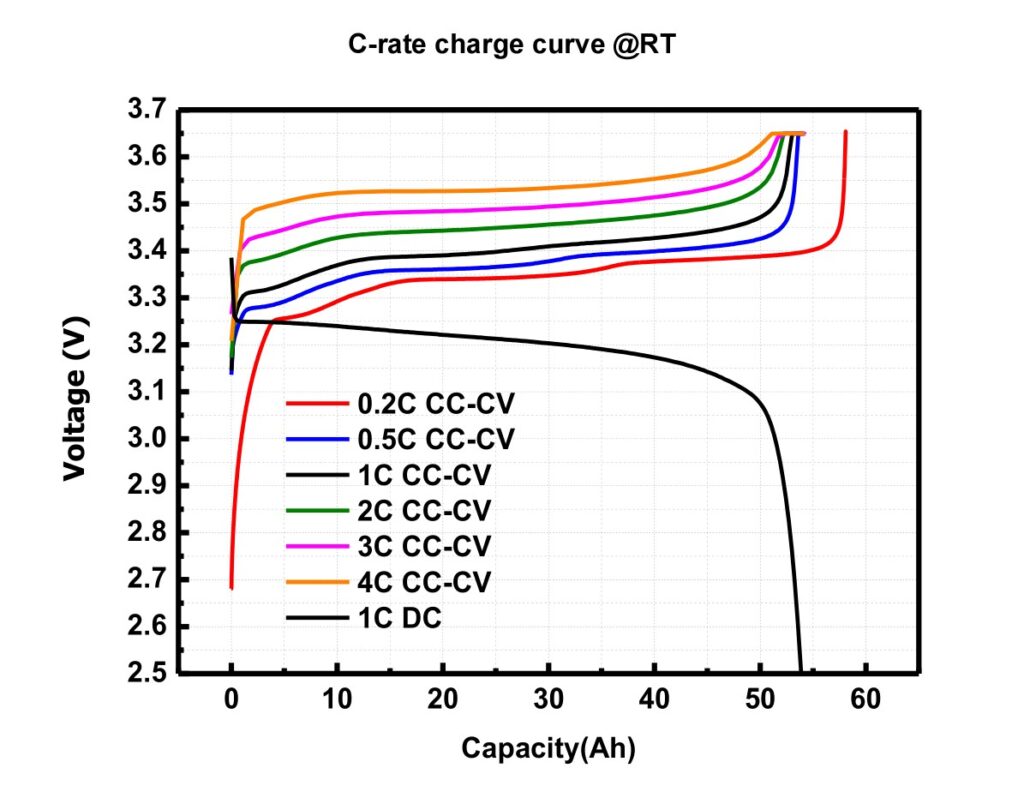

Battery product performance curves
Attentions
For safety usage, please be careful on below：
Warning!
1. Do not immerse the battery in water and keep it dry when not using；
2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions；
3. Charge with specified charge according to charging requirement；
4. Do not reverse the positive (+) and negative (-) terminals；
5. Do not put the battery into a fire or apply direct heat to it；
6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals；
7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc；
8. Do not knock, throw, tread, bend, etc；
9. Do not directly solder the battery terminals；
10. Do not pierce the battery casing with a nail or other sharp object.
