| Nominal Capacity: | 100Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.5mΩ | Operating Votage: | 2.5V-3.65V |
| Dimension: | 160*115.7*50.1 | Battery Weight: | 1.92±0.1kg |
EVE 100Ah grade A rechargeable LF100MA lifepo4 battery cells batterie lithium lifepo4battery
General Technical Parameter
# | Item | Parameter | Remark | |
1 | Nominal Capacity | 100.0 Ah |
(25±2)℃，Standard charge and discharge | |
2 |
Typical Voltage |
3.2V | ||
3 |
AC Impedance Resistance(1KHz) |
≤0.5mΩ | ||
4 |
Standard charge and discharge | Charge / discharge current | 0.5C/0.5C |
(25±2)℃ |
Cut off voltage of charge / discharge |
3.65V/2.5V | |||
5 |
Maximum charge / discharge current |
Continuous charge / discharge |
1C/1C |
According to continuous / pulse charge and discharge ammeters |
Pulse charge / discharge (30s) |
2C/2C | |||
6 |
Recommended scope of SOC |
10%～90% |
N.A. | |
7 |
Charging Temperature | 0℃～55℃ |
According to continuous / pulse charge and discharge ammeters | |
8 |
Discharging Temperature |
-20℃～55℃ | ||
9 |
Storage temperature |
Short term (within 1 month) | -20℃～45℃ | |
Long term (within 1 year) | 0℃～35℃ | |||
10 | Storage humidity range | ＜95% | ||
11 |
Self-discharge rate per month |
≤3%/month | ||
Test conditions:
1 Test environment conditions
Temperature: 25±2℃
Relative humidity (RH): 15~90% Atmospheric condition: 86KPa~106KPa
2 Standard Charge
The standard charge means charging the cell with charge current 0.5C (A) and constant voltage 3.65V at (25±2) ℃, 0.05C (A) cutoff.
3 Standard Discharge
The standard discharge means discharging the cell with discharge current 0.5C (A) and cutoff voltage 2.5V at (25±2) ℃.

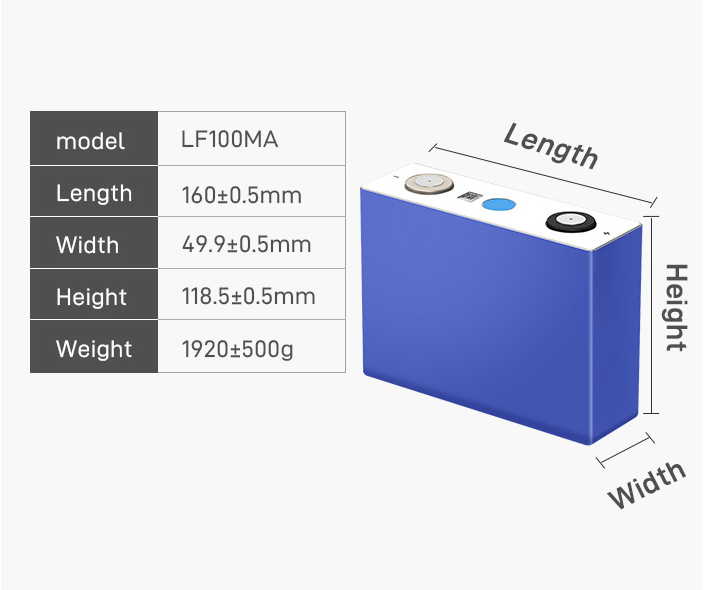

Two-dimensional graphs of Battery：

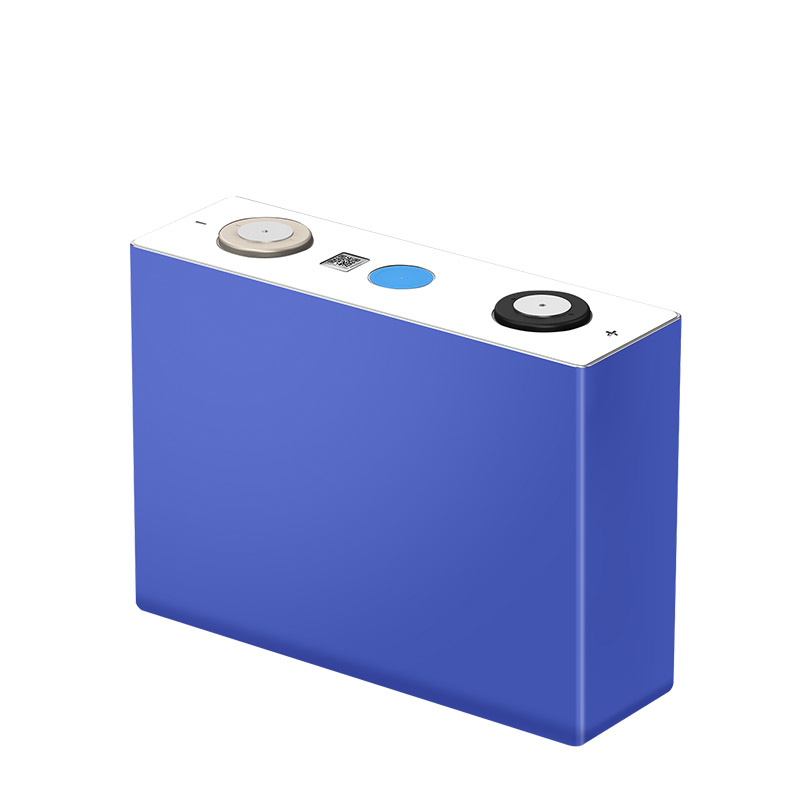

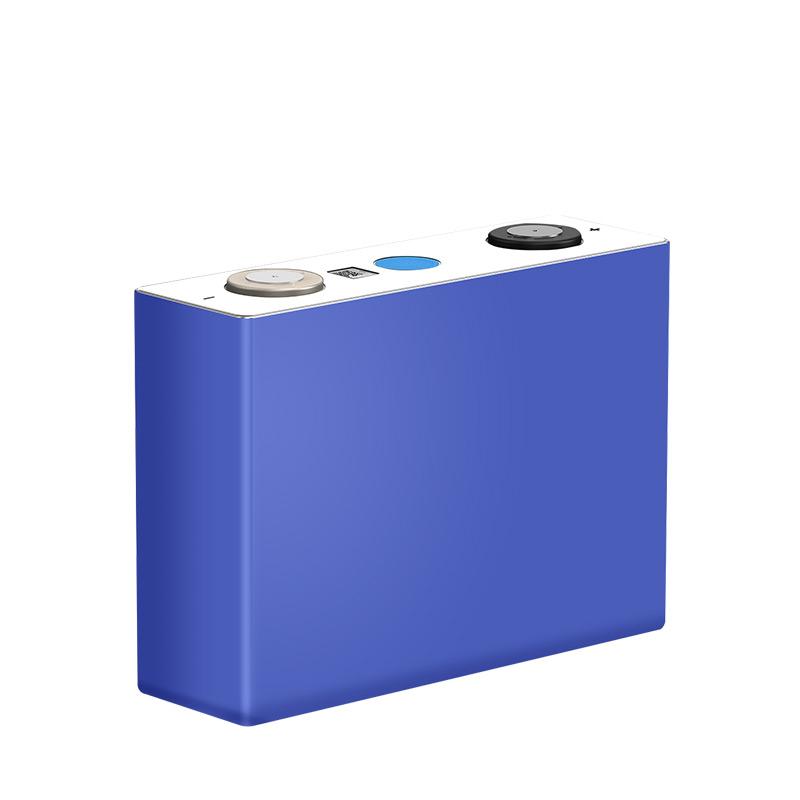

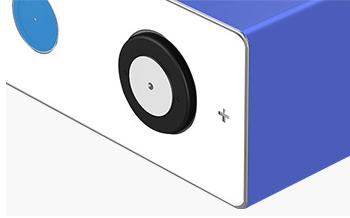

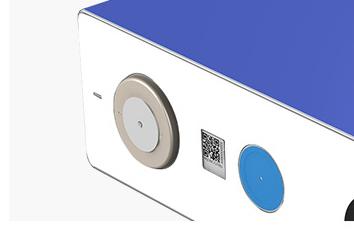

photos of battery appearance：
