Electric Motorcycle E-Scooter Battery 60V 30ah Li-ion Battery Pack with Case

Port:Shenzhen, China

Production Capacity:10000set/Week

Payment Terms:T/T, Western Union, Paypal

Model NO.:FB-6030

Rated Capacity:30ah

Standard Voltage:60V

Usage:Electric Bike

Electrolyte:Li-ion

Trademark:Delongtop

Transport Package:Export Carton

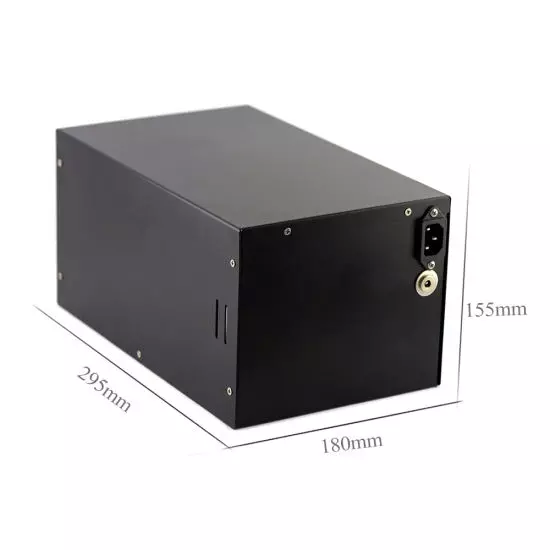

Specification:295*180*115mm

Origin:China

Model

60V30Ah

Voltage(cell)

3.7V

Size (D×W×H)

295*180*155mm

Nominal Voltage

60V

Nominal Capacity

300Ah

Internal Resistance

≤420mΩ

End of charge Voltage

67.2V

End of charge Current

200mA

End of discharge Voltage

55V

Charge Method

0.2C (0.5A) CC/CV

Max.Continuouscharge currnt

5A

Nominal Discharge Current

30A

Max. Pluse Discharge Current

80A/10S

Weight

10.5kg

Operating Temp.(Charge)

0~45ºC

Discharge Temp.

-10~55ºC

Storage Temp.(60-80% SOC Storage)

-10~45ºC

Capacity @ 1C rate 0.2C

≥ 30Ah

Cycle Life

500 times(Cycle @RT,1C rate,100%D\OD)

Main applications:

Electric tools;scooter,motorcycle,boat
Electric Vehicle;
Electronic Toys
Golf Car, etc


Features:

1) Environmental friendly

 2) High density of energy

 3) Light weight
 4) Low self-discharge
 5) Low internal resistance
 6) Long cycle life, chargeable up to 500 or 1000 times

 7) No memory effect

 8) Doesn’t contain Mercury, No fire, No explosion, No leakage

 9) Very good and quick charge, capability can be charged to 90% within 10 min.

10) Thickness can be adjusted while width and height keep the same



Advantage:

1.High Energy Density.

2. High Output Voltage.

3. Excellent Security.

4. Long Cycle Life: More than 500 repeated charge/discharge cycles.

5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell

6. Environmental-friendly: No Pb, Cd added

7.Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload;

8.Injection Technology to make battery more stable;

9.With short-circuit production function, safe and reliable;

10.Factory mastered technology and competitive price;
