Port:Shenzhen, China
Production Capacity:3000PCS/Day
Payment Terms:L/C, T/T, Western Union, Paypal
Model NO.:FB-4812
Rated Capacity:20ah
Standard Voltage:48V
Usage:E-Bike
Electrolyte:Li-ion

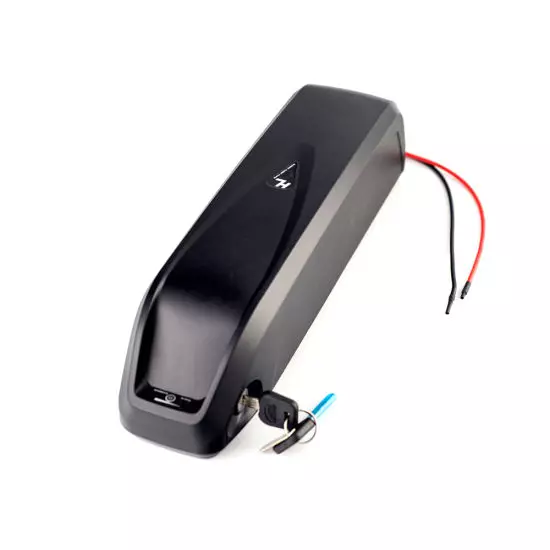

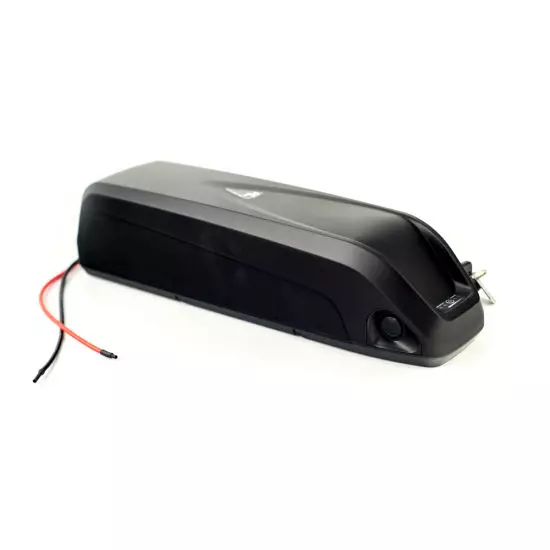

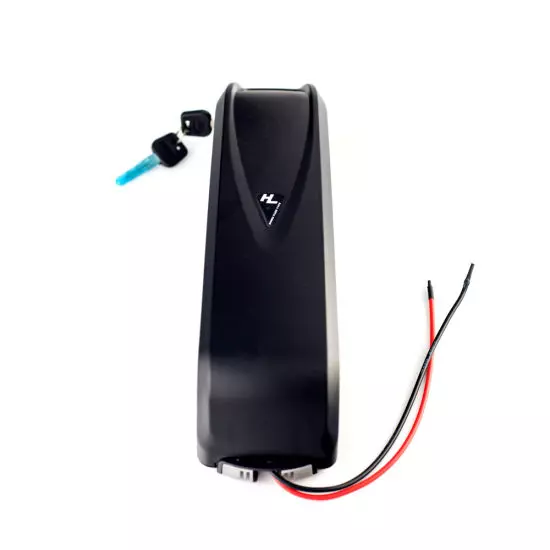

Product Name:48V 12ah Hailong Type E-Bike Battery Pack
Nominal Voltage:48V
Nominal Capacity:12ah
Battery Type:Lithium Battery
Warranty:13 Months
Cycle Life:1000 Times
Weight:5kg
Available Color:Black,Silver
Trademark:Del
Transport Package:Standard Export Package
Specification:5kg
Origin:Guangdong
Type:Lithium-Ion Battery Pack
Connection Mode:13s8p
Rechargeable:Chargeable
Discharge Rate:High Discharge Rate
Size:Large
Accessories Type:Battery
Recommend to use for 48V 200W, 48V 250W, 48V 350W, 48V 500W, 48V 750W, 48V 1000W Motor.

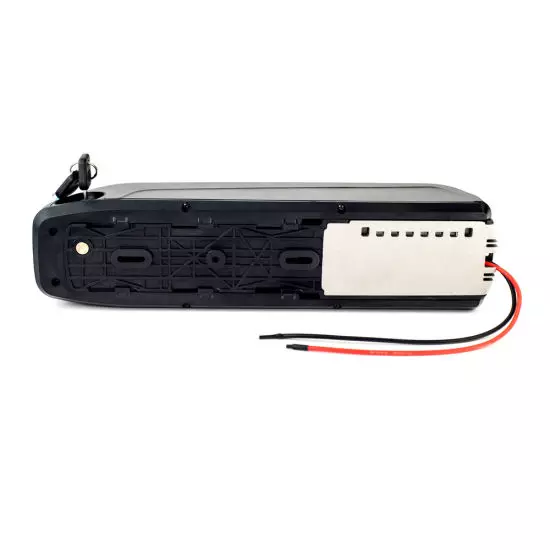

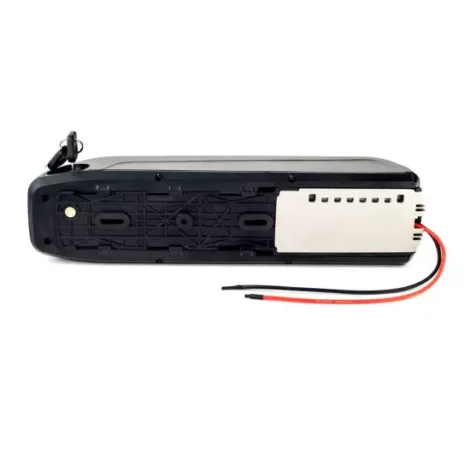

The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.
We provide costomized service!
OEM and ODM welcome!
| Item | Specification | |
| Product Name | Europe Hotsale Down Tube 48v Hailong Battery Pack 12ah 13ah 14.5ah 17ah 17.5ah Lithium Battery With USB Port | |
| Nominal Voltage | 48V | |
| Nominal Capacity | 12Ah/ can customized | |
| Continuous discharge current | 30A(max) | |
| Burst Discharge Current | 40A(adjustable) | |
| Power | 500-1500W | |
| Over-charged Protection Voltage | 4.25±0.025V/Cell(adjustable) | |
| Over -discharged Protection Voltage | 2.50±0.10V/Cell(adjustable) | |
| Charge mode | CCCV | |
| Max charge Voltage | 42V | |
| Charging Current | 2.0-4.0A | |
| Charging Temperature | 0~45ºC,45~85%RH | |
| Discharging Temperature | -20~55ºC,45~85%RH | |
| Circle life | >500 times | |
| Storage Environment | One Month | -20~+55ºC,45~85%RH |
| Three Month | -20~+45ºC,45~85%RH | |
| One Year | -5~+20ºC,45~85%RH | |
| Dimension | high | reference sample |
| length | reference sample | |
| thickness | reference sample | |
| Weight | <5.0 KG | |
