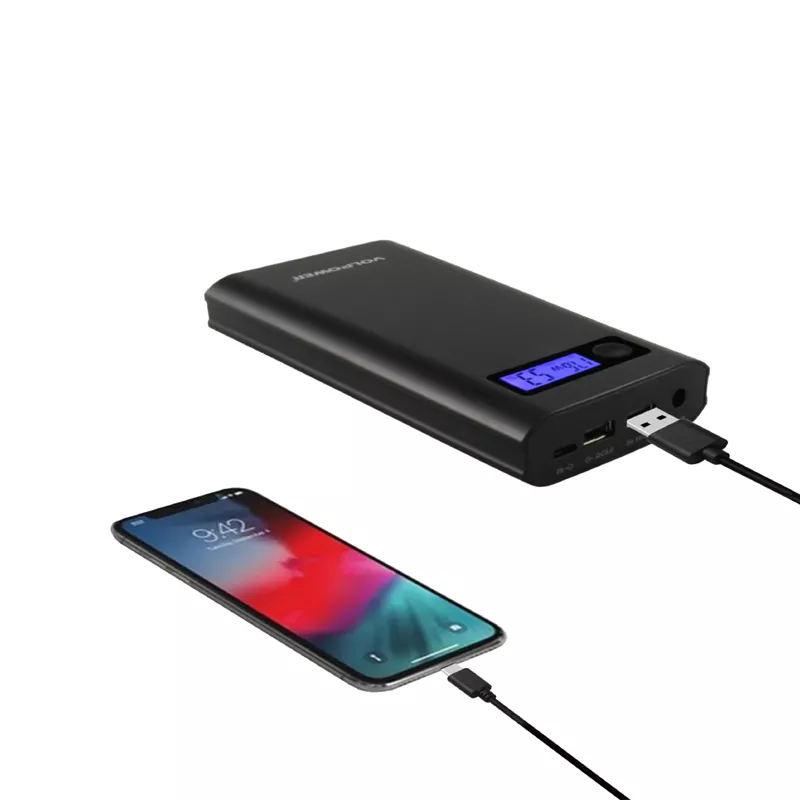

Application: Laptop /jump starter / tablet /mobile phone /and other all kinds of 5v 12v 16.5v 19v 20v 24v products.
Features:

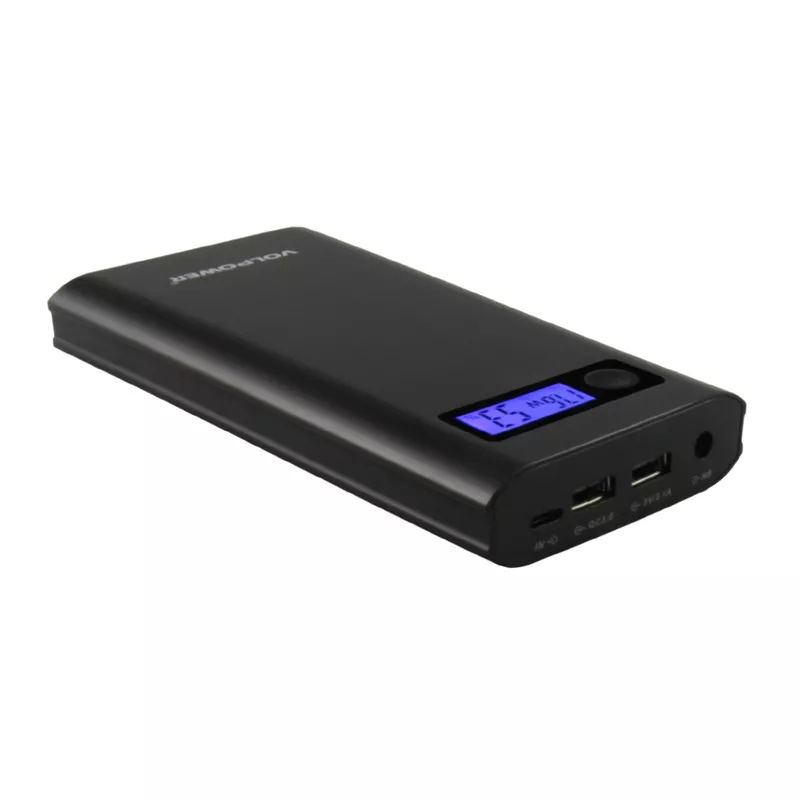

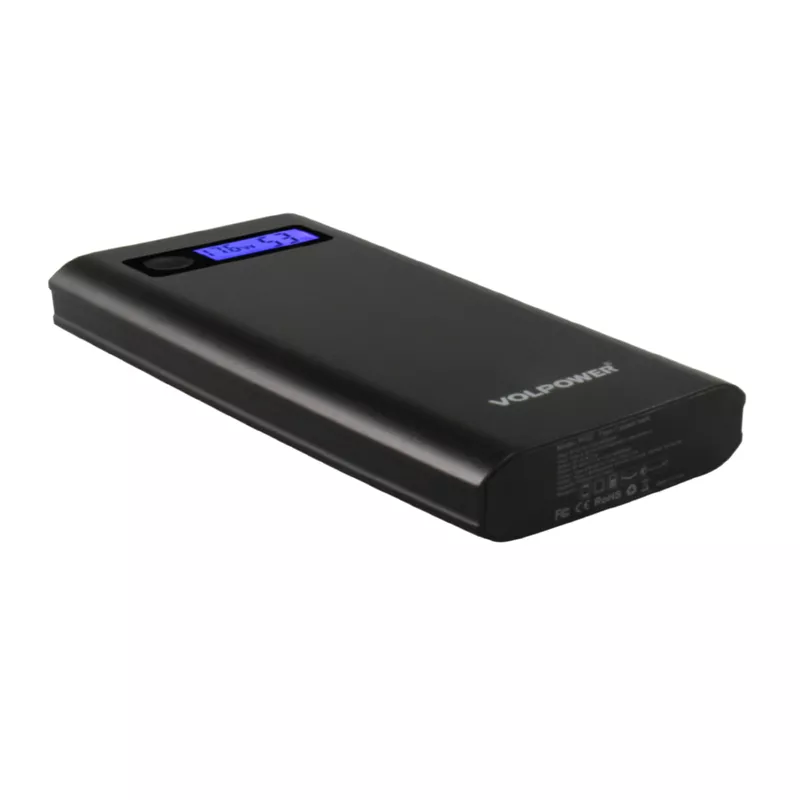

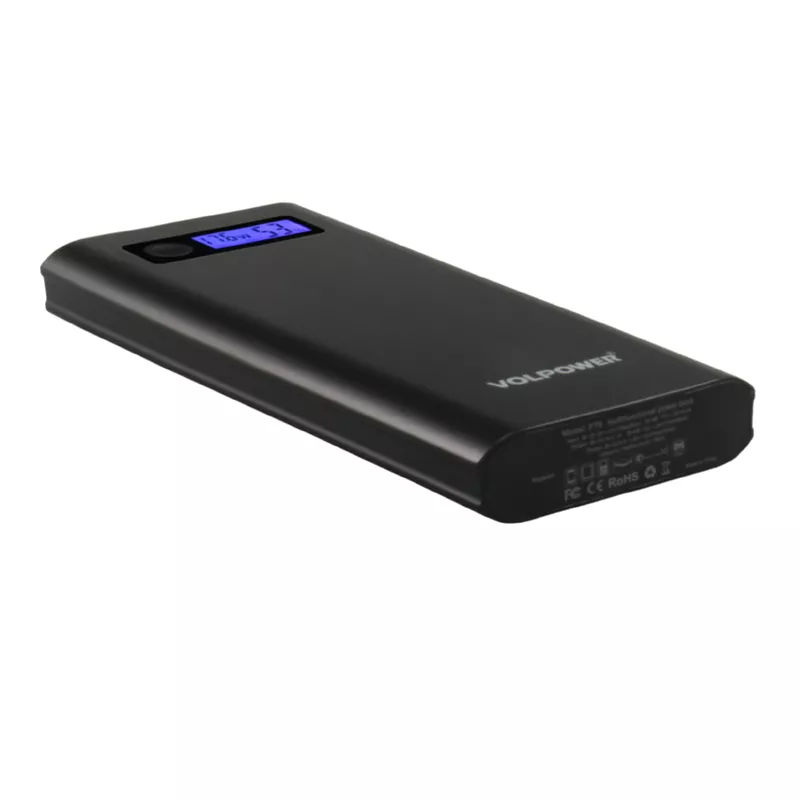

(1).Our power bank P76 is a Multifunctional power bank
(2). in high efficiency 93%-97% , high performance .
(3).in good protection “OC” “OV” “OT” “UV” ,”Short circuit protection ” etc .
(4).In AA class batteries ,with BMS intelligent battery mangement system
(5).Approved CE FCC ROHS / ISO Certifications
(6).LCD Display to show the real Voltage (V) , rest capacity , etc
(7)Approved CE FCC ROHS Certificates
Specifications:
| Model No. | P76 |
| Optional Capacity | 15600mAh(57.7WH)/ 20100mah 73WH |
| Size | 168.5* 80* 23.2(MM) |
| N.W | About 495g |
| Cell type | lithium battery ICR18650 |
| Input | TYPE C:5V~12V/18W(MAX) |
| NB:13V-20V /3A(MAX) | |
| Output | USB 1:5V/2.1A(MAX) |
| USB 2:QC3.0 3.8V~12V/18W(MAX) | |
| NB:12V-24V/75W(MAX)(Continue working about 55W) | |
| Charge and discharge | yes |
| Circuit protection | Over voltage protection, over current protection, |
| under-voltage protection, over temperature protection, | |
| short circuit protection | |
| Conversion efficiency | 5V/2A≈93% 9V/2A≈95% 12V/2A≈96% |
| Full Charging time(input) | USB charging: about 8.5 hours(need 2.1Aadapter) |
| NB port car charger charging: About 2.5 hours | |
| Cycle times | ≥500times |
| Charge temperature range | 0o℃ ~+50℃ |
| Discharge temperature range | -10o℃~+65℃ |
| Storage temperature range | 0o℃ ~45℃,within 30 days |
| Long-term Storage temperature range | 0℃ ~40℃,within 180 days |
| Storage humidity | 45% ~85%RH |
| Long-term storage time | Advise charging it if it is not used within 90 days |
