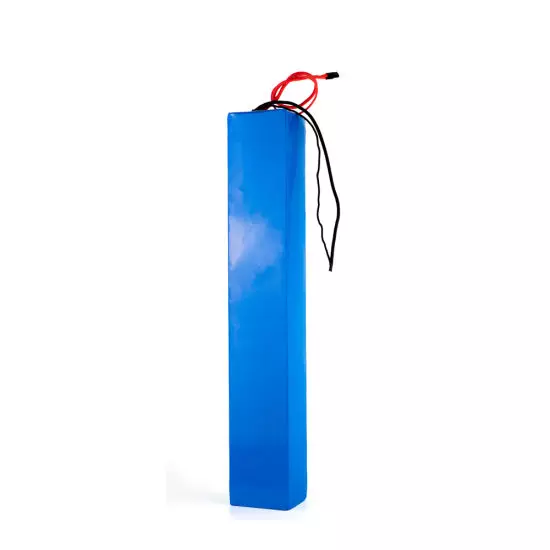

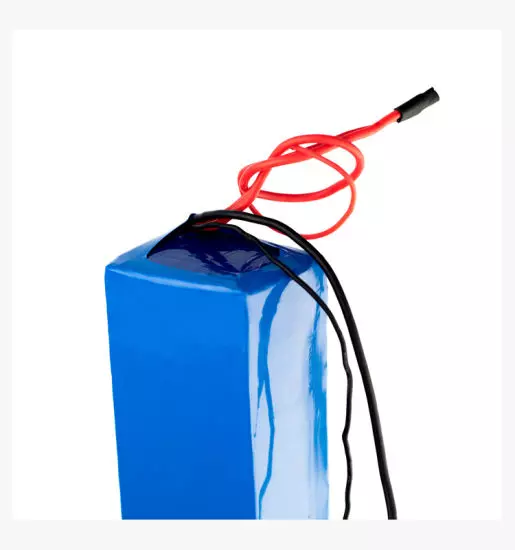

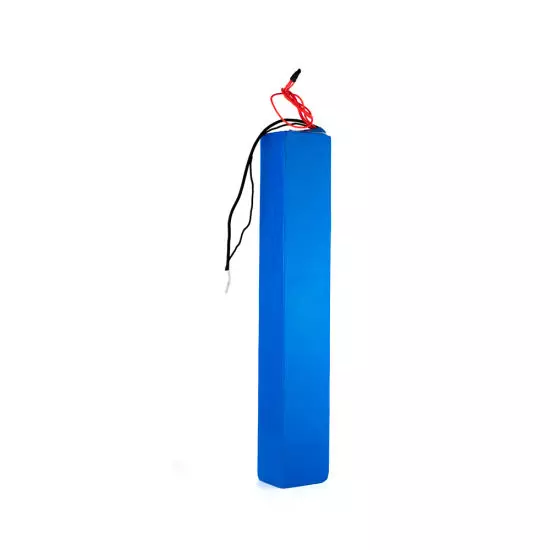

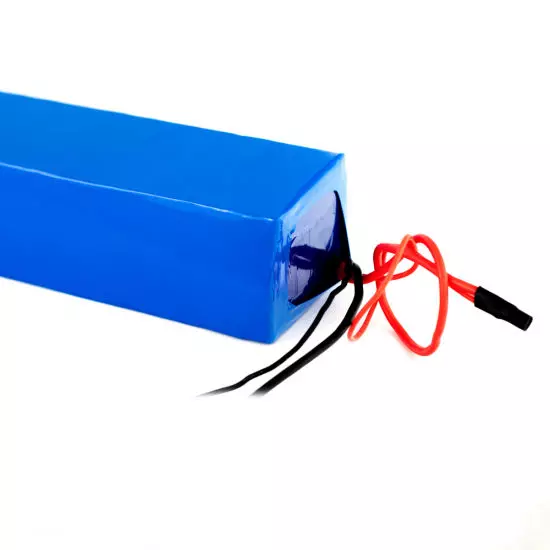

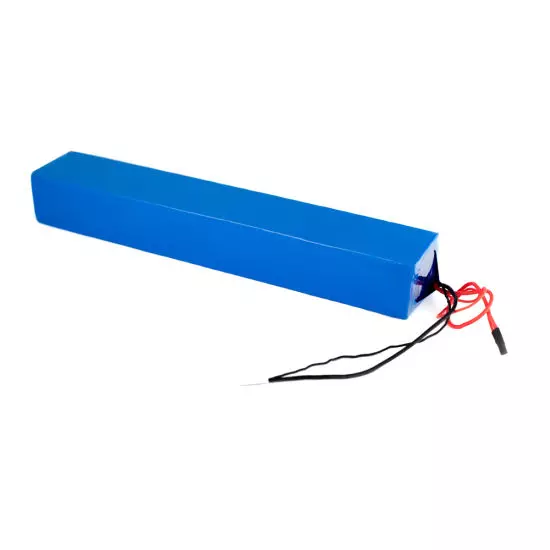

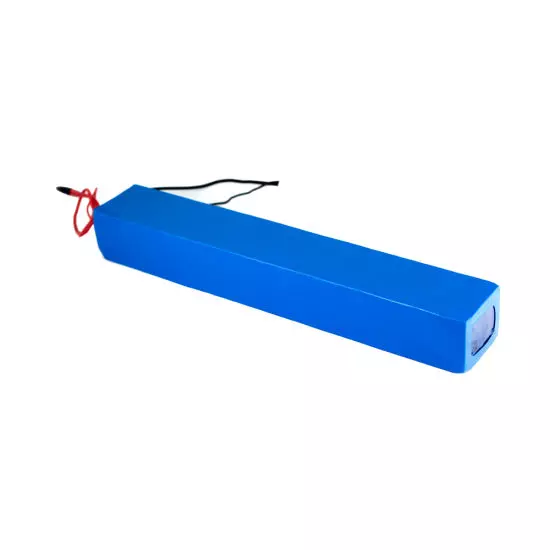

Customized 48v 10ah lithium ion battery pack with BMS
| Product model | FB-4810 |
| Nominal voltage | 48V |
| Charging voltage | 54.6V |
| Nominal capacity | 10Ah |
| Battery configation | 13S4P |
| Continuous discharge current | 20A |
| Max continuous discharge current | 30A |
| Dimension | 430*75*58mm |
| Net weight | 3.5KG |
| Battery type | Grade A 18650 lithium ion battery cell |
| Lifecycle | 500 times |
| Working voltage | 54.6v~39v |
| Charging cut off voltage | 54.6v±0.5v |
| Discharge cut off voltage | 39v±0.5v |
| Warranty | 12 months |
| Output port | plug or wires |
| Charging method | CC/CV |
Applications:
1. Electric vehicles : ebike, electric golf trolley, electric scooter, skating board, two wheeler, etc.
2. Telephone switchboard, electric equipments, power instruments and meters.
3. Uninterrupted power source (UPS) for computer, Emergency Application, Medic devices.
4. Power transmission and transformer station, switchcontrol, and accident lighting.
5. Fire fighting, safety device, and alarm monitoring.
6. Automatic office system.
7. Radio communication system.
8. Emergency lighting and car/ship starting system.
9. Portable electric appliances and mining system.
10. Traffic and navigation signal lamp
Battery features:
1. High operation voltage.
2. High energy density.
3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking
experiment, with acupuncture, smash, drop, and so on.
