| Nominal Capacity: | 280Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.39±0.05mΩ | Operating Votage: | 2.8V-4.0V |
| Dimension: | 207*174*72 mm | Battery Weight: | 5.34±0.30Kg |
Product Description

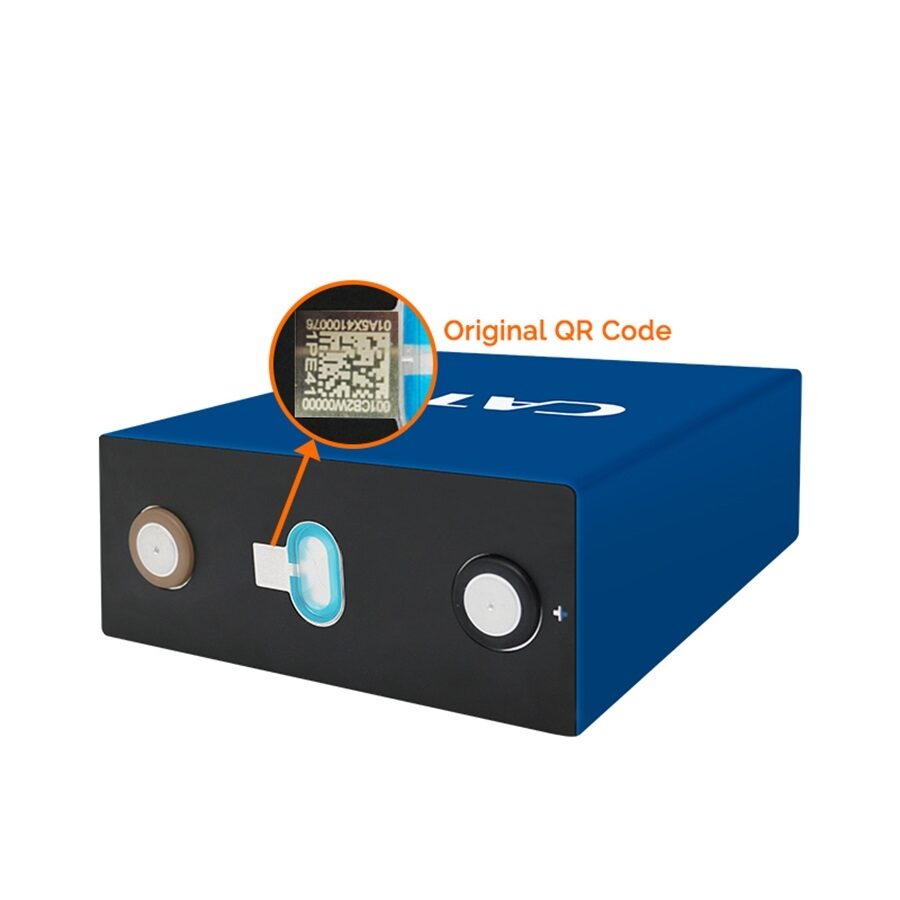

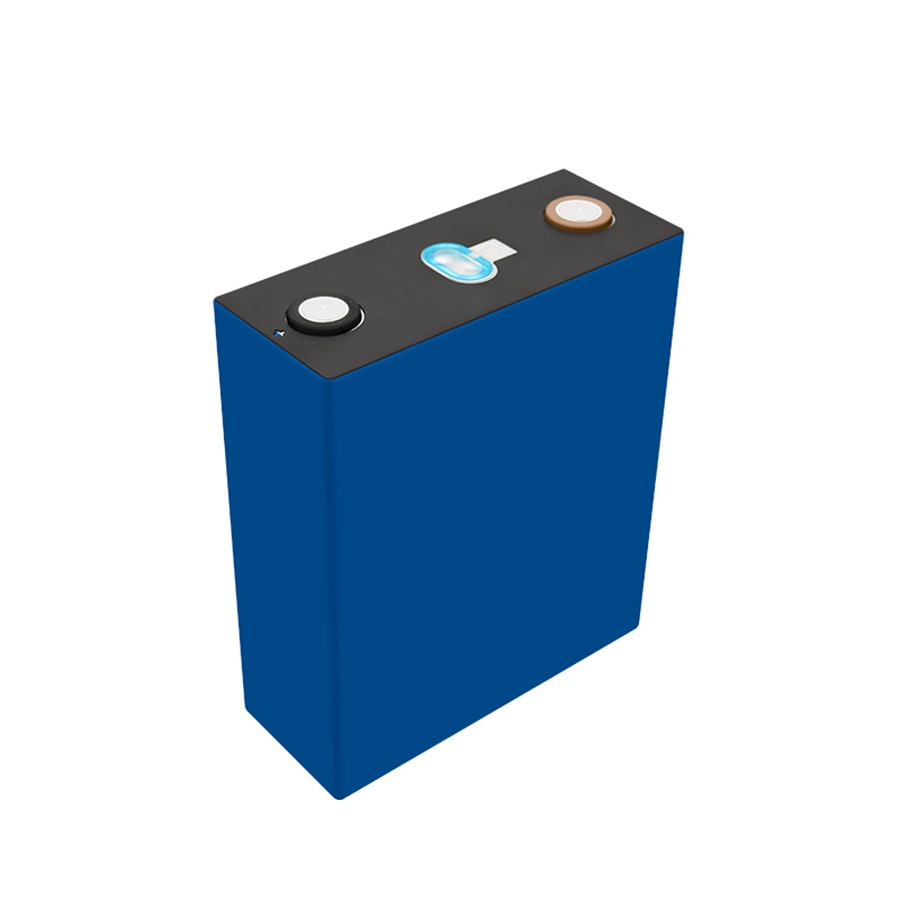

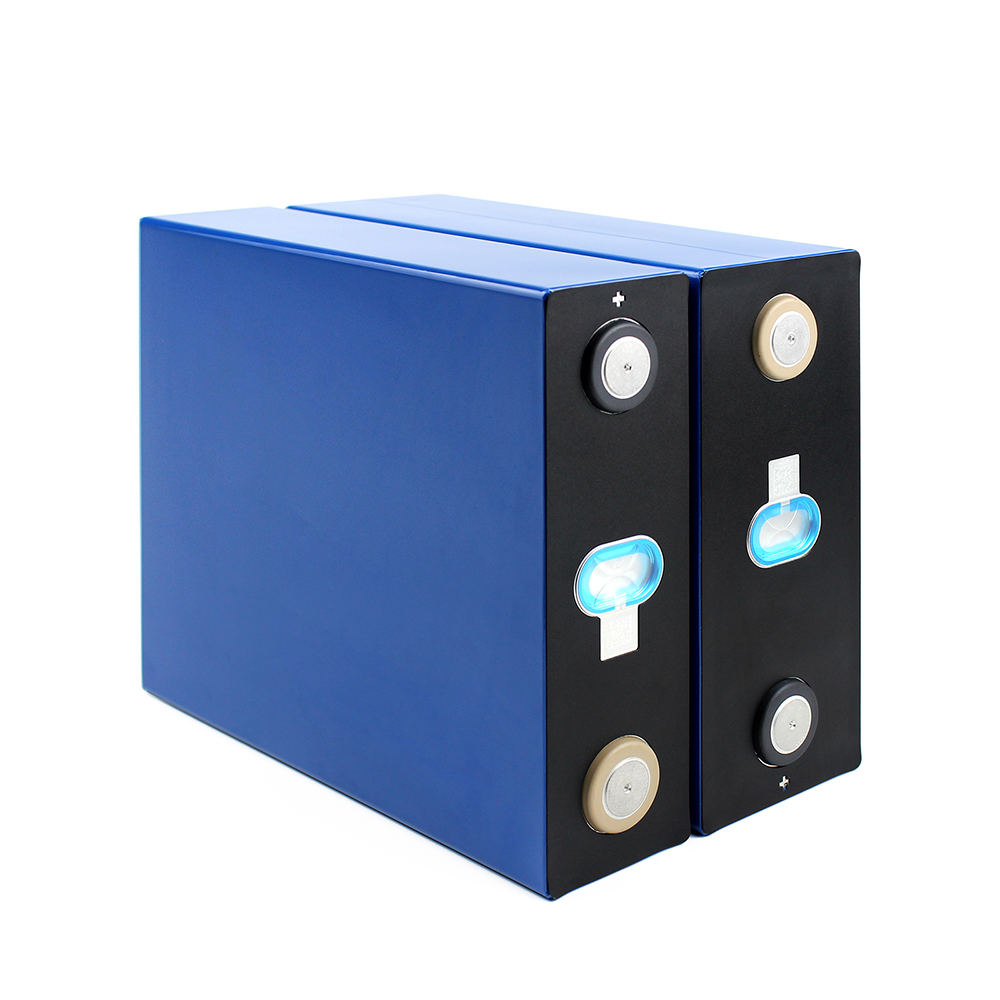

CATL 3.2V 280Ah LiFePO4 Prismatic Battery Cell
Nominal Voltage: 3.2V
Nominal Capacity: 280Ah
Internal Resistance ≤0.18mΩ
Operating Voltage: 2.5V~3.65V

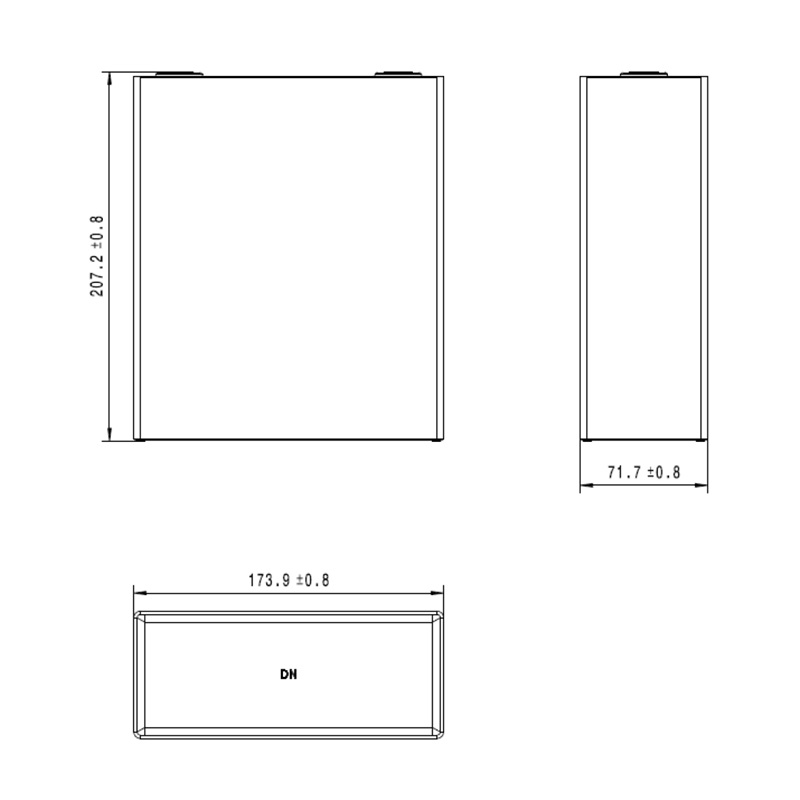

Dimension: 207*174*72 mm
Weight: 5.34±0.30Kg
Cyle Life: ≥6000Cycles
Item | Parameter | |
Nominal Capacity | 280Ah | |
Nominal Voltage | 3.2 V | |
Internal Resistance | ≤0.18mΩ | |
Charging (CC-CV) | Continuous Charging Current | 1C |
Maximum Charging Current | 3C | |
Charging Upper Limit Voltage | 3.65V | |
Discharging | Continuous Discharging Current | 1C |
Maximum Discharging Current | 3C | |
Discharging Cut-off Voltage | 2.5V | |
Recommended SOC Usage Window | SOC: 10%~90% | |
Operation Thermal Ambient | Charging | 0°C ~ 65°C |
Discharging | -35°C ~ 65°C | |
Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 65°C |
Long term (within 1 year) | -20°C ~ 55°C | |
Storage Humidity | < 70% | |
Battery Weight | Around 5.34kg | |
Shell Material | Aluminum | |
Cell Dimensions | 207*174*72 mm | |
Details
CATL 3.2V 280Ah lithium iron phosphate LiFePO4 battery is a new model with an aluminum case produced by CATL, a leading lithium battery supplier from China; this battery cell has a super long cycle life of more than 12000times, have a stable performance used for ESS(energy storage system). All the cells we provide are brand new grade A with test report and all kinds of certifications.
