| Nominal Capacity: | 271Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.39±0.05mΩ | Operating Votage: | 2.8V-4.0V |
| Dimension: | 207.3*71.6*173.6mm | Battery Weight: | 5.74kg |

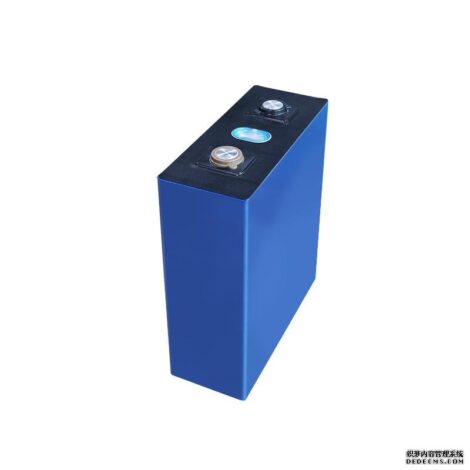

CATL 3.2V 271AH Lithium Iron Phosphate LiFePO4 Prismatic Battery Cell
Capacity: 271Ah
Voltage nominal: 3.2V
Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage:2.0V~3.65V
Internal Resistance:0.14±0.05mΩ
Dimensions: 207.3*71.6*173.6mm
Weight: ≤5.74Kg
Item | Parameters | |
Nominal Capacity | 271Ah | |
Minimum Capacity | 271 Ah | |
Operating Voltage | 2.5~3.65V 2.0~3.65V | |
Internal Resistance(1KHz) | 0.14±0.05mΩ | |
Self-discharge Rate(monthly) | ≤3.5% | |
Standard Charge/ discharge Current | 0.5C | |
Max. Continuous Charge/ discharge Current | 1C | |
Max. pulse discharge current (short pulse) | 3C | |
Standard Charge Voltage | 3.65V | |
Discharge Cut-off Voltage | 2.5V 2.0V | |
Operating Temperature | Charge | 0~+60℃ |
Discharge | -30~+60℃ | |
Storage Temperature | ≤1 month | -20~+45℃ |
≥6 months | -20~+35℃ | |
Dimensions | 207.3*71.6*173.6mm | |
Weight | ≤5.74Kg | |
Details
Now we provide the specially customized 271Ah 3.2V CATL LiFePO4 Battery cell with screws for easy connection. It has long cycle life, high energy density and a wide operating temperature range.
