| Nominal Capacity: | 240Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.39±0.05mΩ | Operating Votage: | 2.8V-4.0V |
| Dimension: | 71.3*173.9*207mm | Battery Weight: | 5.1kg |

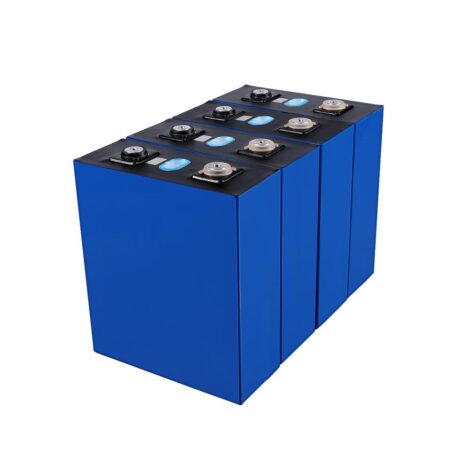

CATL LFP 6LH3L7 3.2V 240AH LiFePO4 Battery Prismatic Cell
Capacity: 240Ah
Voltage nominal: 3.2V
Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage:2.5V~3.65V
Internal Resistance:<=0.15mΩ
Dimensions: 71.3*173.9*207mm
Weight: 5.1Kg±10g
CATL 240Ah LFP cells can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.
Features:
1- prismatic aluminum shell lifepo4 cells from CATL
2- Support continuous discharge rate of 2C and charge rate of 1C
3- good cell consistency
4- widely applied for special electric vehicles, energy storage and telecommunication, etc
5- long cycle of 3000+ cycles
Item | Parameters | |
Nominal Capacity | 240Ah | |
Nominal Voltage | 3.2V | |
Internal Resistance | ≤0.15mΩ | |
Standard Charge Current | 120A | |
Charge Voltage | 3.65V | |
Discharge Cut-off Voltage | 2.5V | |
Standard Discharge Current | 120A | |
Max. Continuous Discharge Current | 240A | |
Weight | 5.1Kg±0.2kg | |
Operating Temperature | Charge | 0~+60℃ |
Discharge | -30~+60℃ | |
Storage Temperature | ≤1 month | -20~+45℃ |
≥6 months | -20~+35℃ | |
Dimensions | 71.3*173.9*207mm | |
