| Nominal Capacity: | 202Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.39±0.05mΩ | Operating Votage: | 2.8V-4.0V |
| Dimension: | 207.3*53.7*173.6mm | Battery Weight: | 4.12Kg±10g |
Product Description

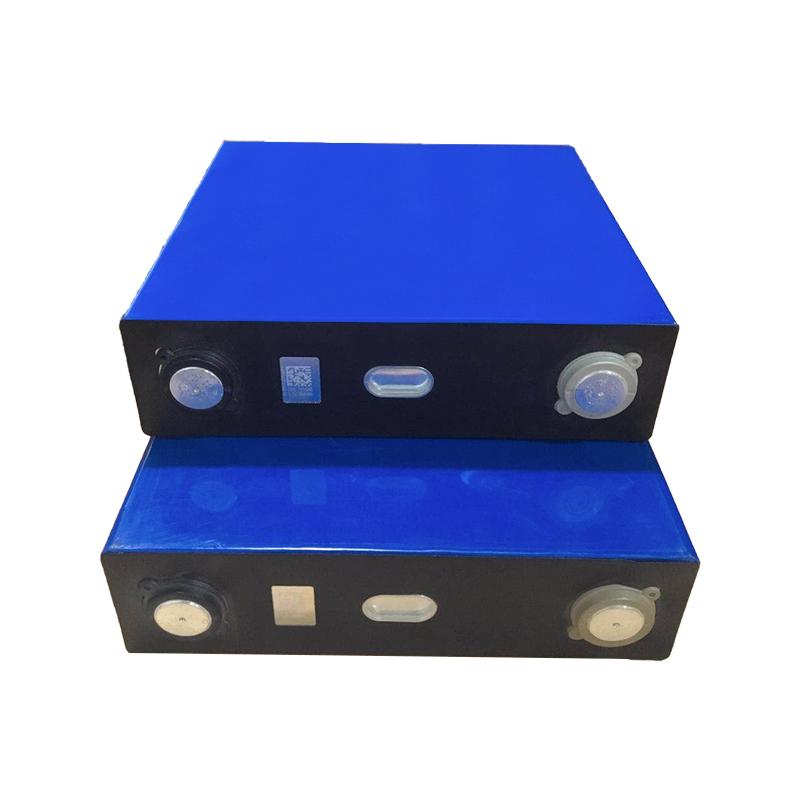

CATL 3.2V 202AH MFH3L8 Lithium LiFePO4 Battery Cell
Capacity: 202Ah
Voltage nominal: 3.2V
Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage:2.0V~3.65V
Internal Resistance:0.16±0.05mΩ
Dimensions: 207.3*53.7*173.6mm
Weight: 4.12Kg±10g
Item | Parameters | |
Nominal Capacity | 202Ah | |
Minimum Capacity | 202 Ah | |
Operating Voltage | 2.5~3.65V 2.0~3.65V | |
Internal Resistance(1KHz) | 0.16±0.05mΩ | |
Self-discharge Rate(monthly) | ≤3.5% | |
Standard Charge/discharge Current | 0.5C | |
Max. Continuous Charge/discharge Current | 1C | |
Max. pulse discharge current (short pulse) | 3C | |
Standard Charge Voltage | 3.65V | |
Discharge Cut-off Voltage | 2.5V 2.0V | |
Operating Temperature | Charge | 0~+60℃ |
Discharge | -30~+60℃ | |
Storage Temperature | ≤1 month | -20~+45℃ |
≥6 months | -20~+35℃ | |
Dimensions | 207.3*53.7*173.6mm | |
Weight | 4.12Kg±10g | |
