| Nominal Capacity: | 161Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.4Ω | Operating Votage: | 2.5V-3.65V |
| Dimension: | 280*82*62mm | Battery Weight: | Around 3.1kg |

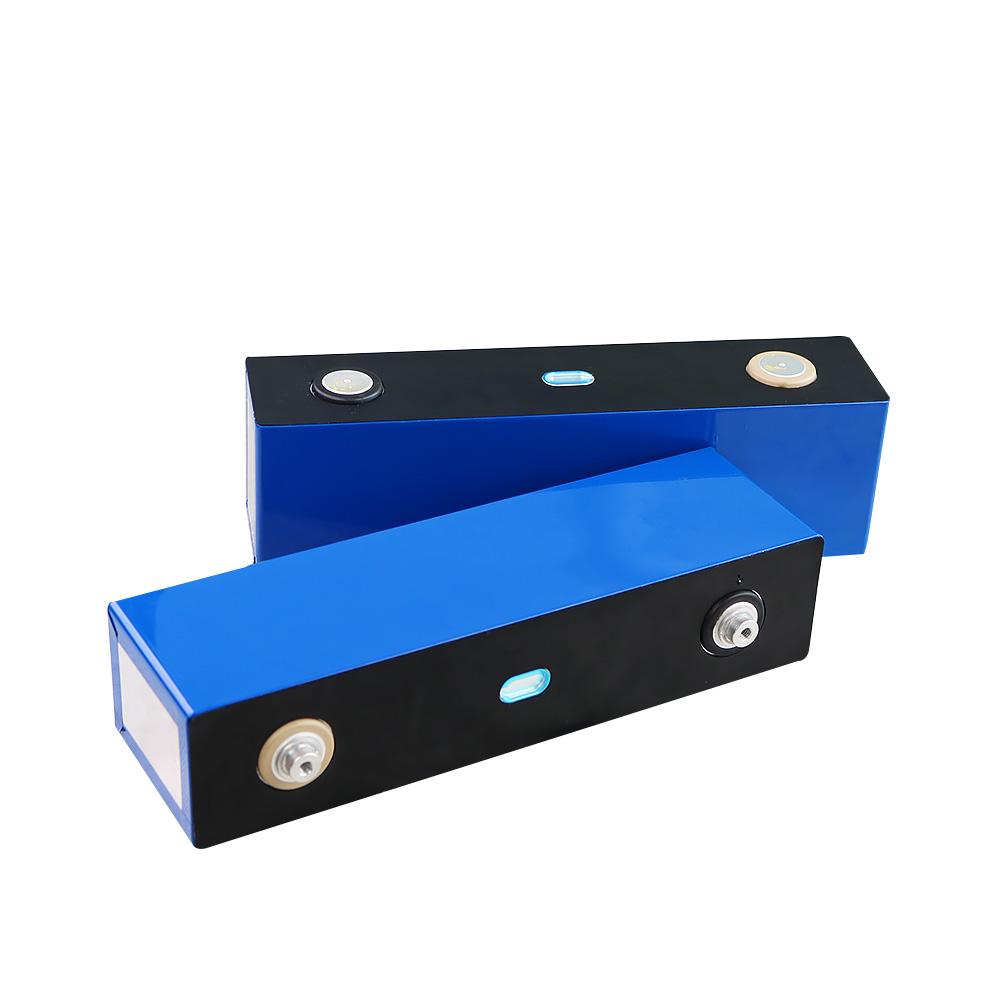

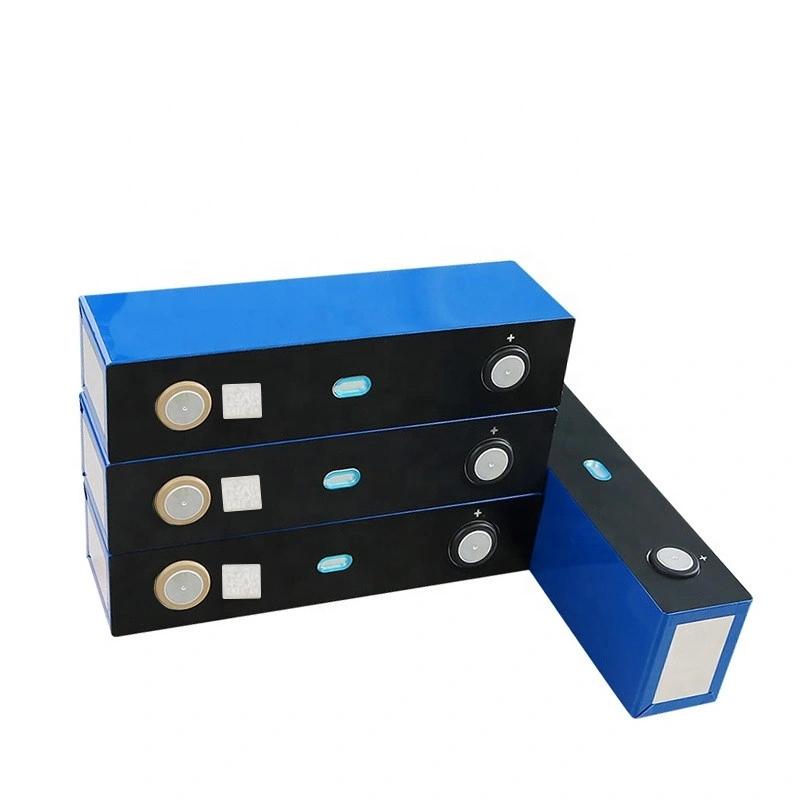

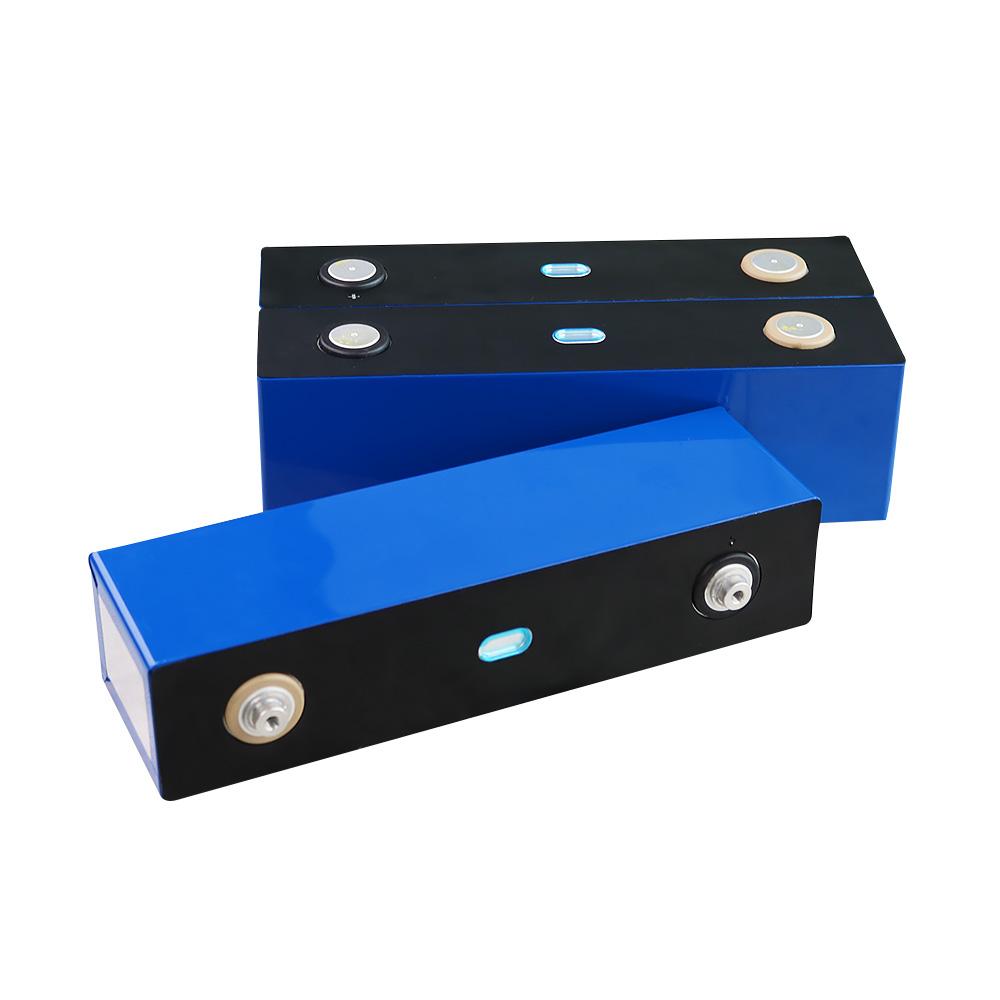

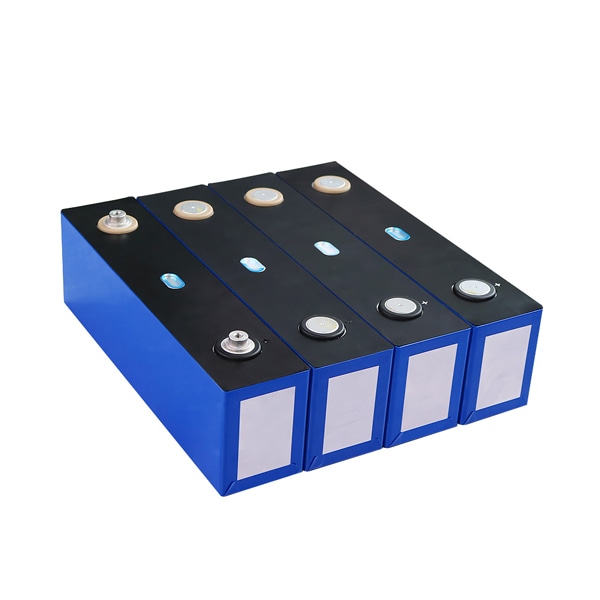

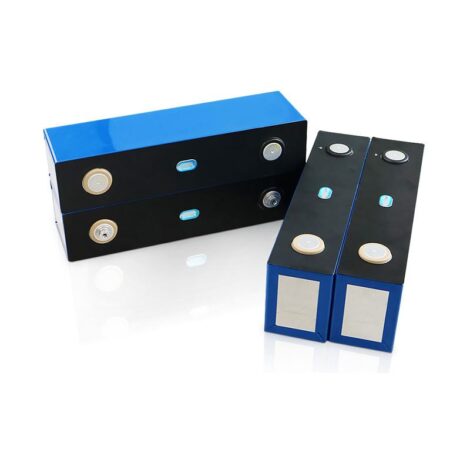

CATL 3.2V 161Ah Rechargeable Prismatic 3.2v 160ah Lifepo4 Battery Cell Lithium Battery
Product Features:
* 100% pre-tested before leaving the factory
* Specialized manufacturer with more than 10-years experience
* Excellent customer service and technical support
* Strict quality control system and professional R&D department.
*High quality products with favorable price.
No | Name | technical parameters | |
1 | T | 62.0±0.5mm | |
2 | W | 280.0±0.5mm | |
3 | L | 82.0±0.5mm | |
4 | L1 | 3.0±0.5 mm | |
5 | L2 | 24.0±1mm | |
6 | L3 | 14.0±0.5mm | |
7 | L4 | 196.0±0.5mm | |
8 | Φ1 | 20.0±0.5mm | |
9 | Φ2 | 30 0±0 5mm | |
10 | Stud Height | 14.0±0.1mm | |
No | Item | Parameter Specification | |||
1 | Nominal Capacity | 161Ah | |||
2 | Nominal Voltage | 3.2 V | |||
3 | Internal Resistance | ≤0.4mΩ | |||
5 |
Charging(CC-CV) | Continuous Charging Current | 1C | ||
Maximum Charging Current | 3C | ||||
Charging Upper Limit Voltage | 3.65V | ||||
6 |
Discharging | Continuous Discharging Current | 1C | ||
Maximum Discharging Current | 3C | ||||
Discharging Cut-off Voltage | 2.5V | ||||
8 | Recommended SOC Usage Windom | SOC: 10%~90% | |||
9 |
Operation Thermal Ambient | Charging | 0°C ~ 55°C | ||
Discharging | -20°C ~ 55°C | ||||
10 |
Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 45°C | ||
Long term (within 1 year) | 0°C ~ 35°C | ||||
11 | Storage Humidity | < 70% | |||
12 | Battery Weight | Around 3.1kg | |||
13 | Shell Material | Aluminum | |||
14 | Cell Dimensions | 280*82*62mm | |||
