| Nominal Capacity: | 150ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.34±0.05mΩ | Operating Votage: | 2.5~3.65V |
| Dimension: | 200.33*207.2*33.4mm | Battery Weight: | 2.95±0.3Kg |
Product Description

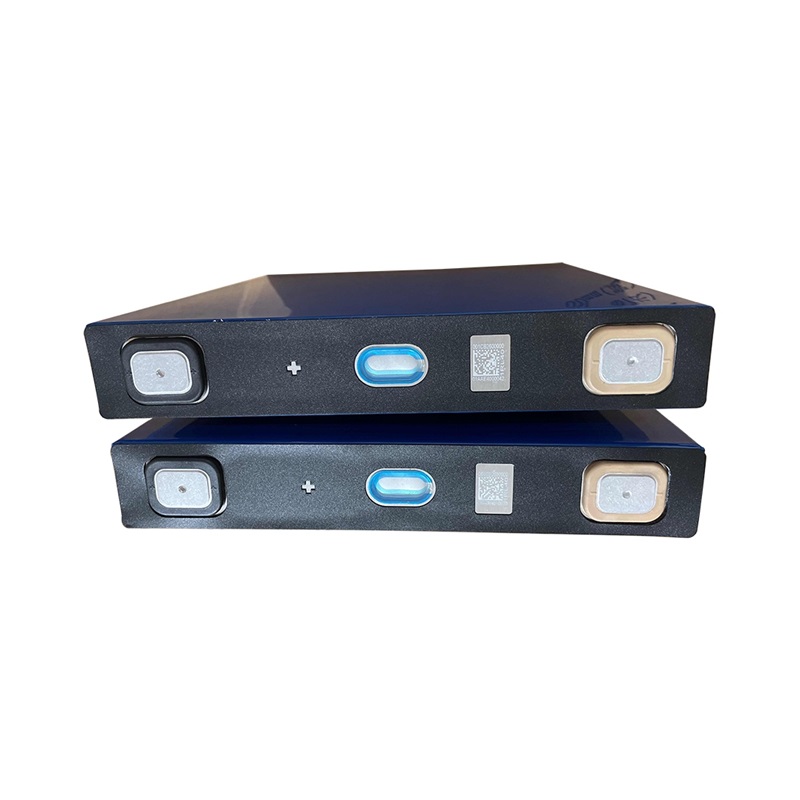

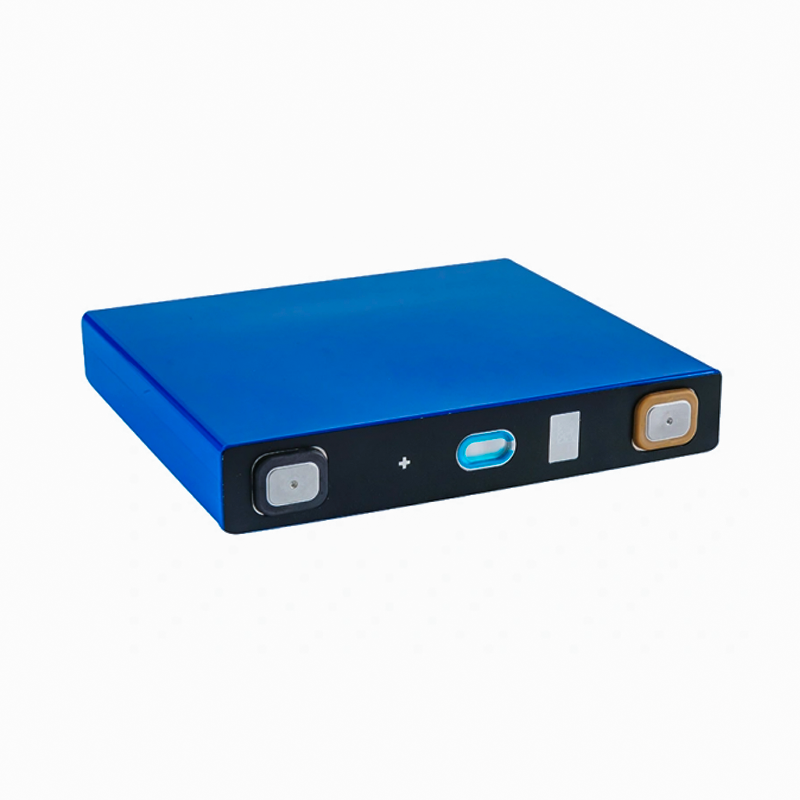

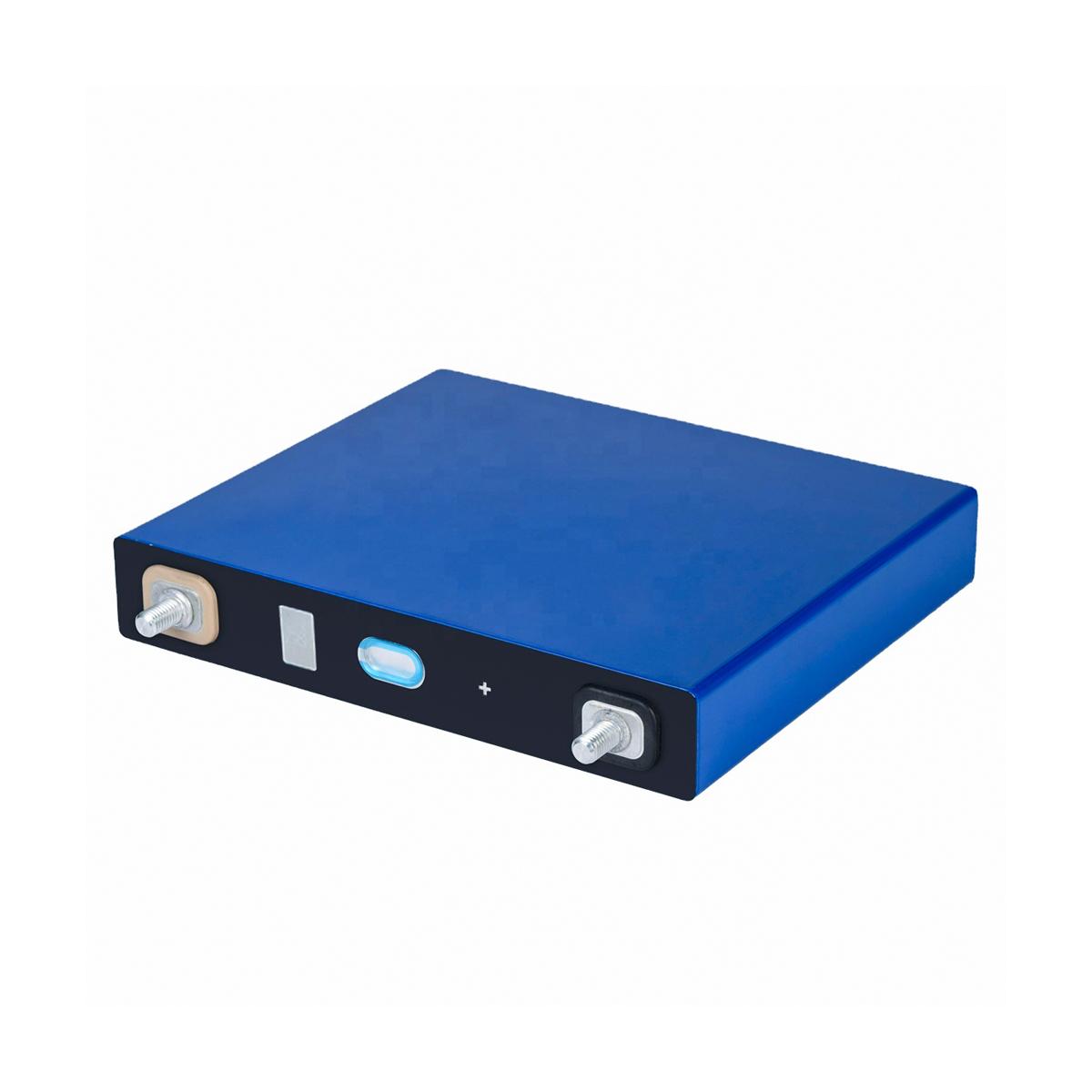

CATL LFP CB260 3.2V 150AH LiFePO4 Battery Prismatic Cell
Nominal Capacity: 150Ah
Voltage nominal: 3.2V
Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage:2.5V~3.65V
Internal Resistance:0.34±0.05mΩ

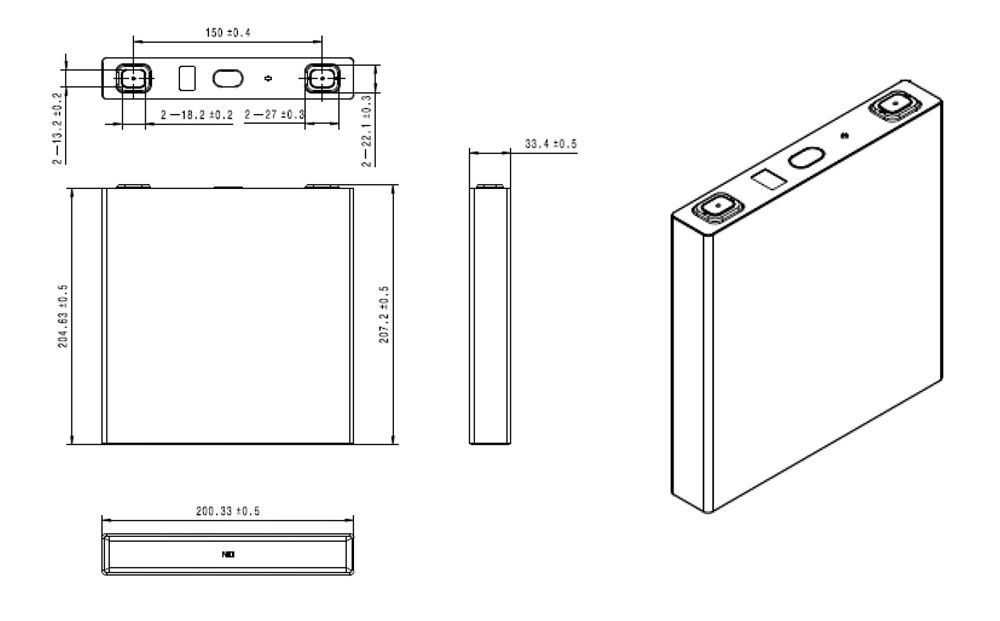

Dimensions: 200.33*207.2*33.4mm
Weight: 2.95±0.3Kg
CATL 150Ah LFP cells can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.
Features:
1- prismatic aluminum shell lifepo4 cells from CATL
2- Support continuous discharge rate of 1C and charge rate of 1C
3- good cell consistency
4- widely applied for special electric vehicles, energy storage and telecommunication, etc
5- long cycle of 3500+ cycles
Parameters:
Item | Specification |
Nominal Capacity | 2600mAh (0.2C, 2.75V discharge) |
Minimum Capacity | 2550mAh(0.2C, 2.75V discharge) |
Charging Voltage | 4.2 ±0.05 V |
Nominal Voltage | 3.7V |
Charging Method | CC-CV (constant voltage with limited current) |
Charging Current | Standard charge: 1300mA Rapid charge : 2600mA |
Charging Time | Standard charge : 3hours Rapid charge : 2.5hours |
Max. Charge Current | 2600mA(ambient temperature 25℃) |
Max. Discharge Current | 5200mA(ambient temperature 25℃) |
Discharge Cut-off Voltage | 2.75V |
Cell Weight | 47.0g max |
Cell Dimension | Height : 65.00mm max Diameter : 18.40mm max |
Operating Temperature | Charge : 0 to 45℃ Discharge: -20 to 60℃ |
Storage Temperature | 3 months :-20~45℃(1*) 1 month : -20~60℃(1*) |
