| Nominal Capacity: | 120Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.39±0.05mΩ | Operating Votage: | 2.8V-4.0V |
| Dimension: | 174*48*171mm | Battery Weight: | 2.84±0.30Kg |
Product Description

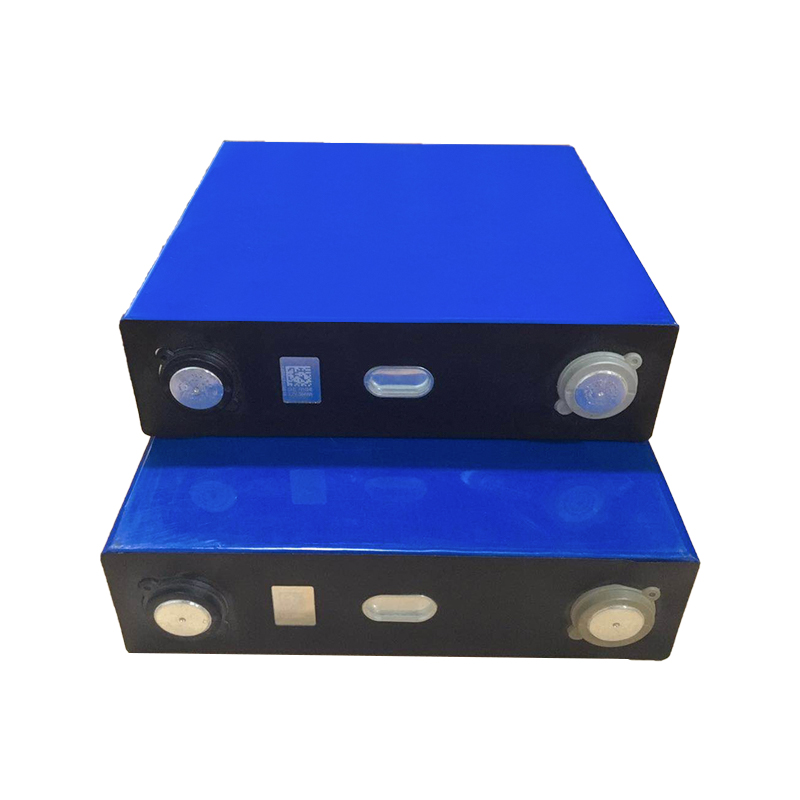

3.2V 120Ah CATL LiFePO4 Prismatic Battery Cell
Module:LFP48H4G6
Nominal Voltage:3.2V
Nominal Capacity:120Ah
Internal Resistance:≤0.5mΩ

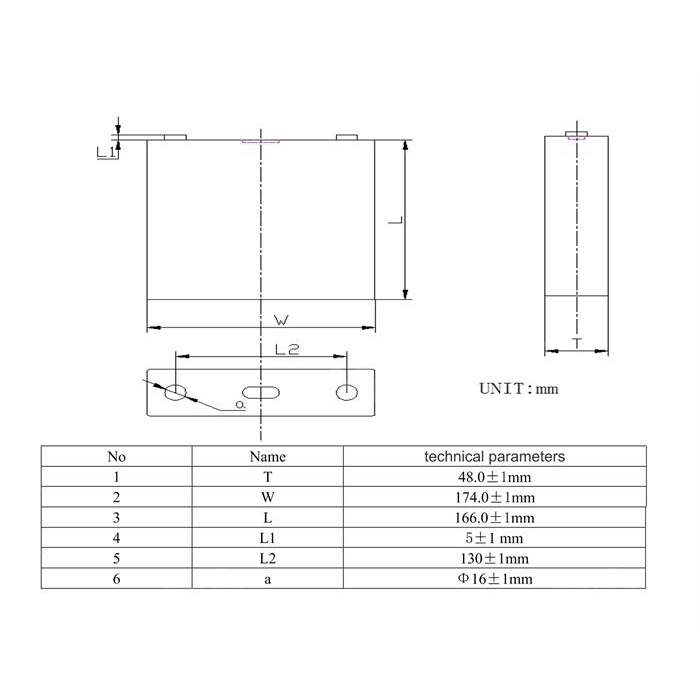

Dimension: 174*48*171mm
Weight:2.84Kg
Details
Item | Parameters | |
Nominal Capacity | 120Ah | |
Nominal Voltage | 3.2V | |
Internal Resistance | ≤0.5mΩ | |
Discharge Cut-off Voltage | 2.5V | |
Standard Charge Current | 24A | |
Charge Voltage | 3.65V | |
Max. Charge Voltage | 3.70V | |
Fast Charge Current | 120A | |
Max. Charge Current | 180A | |
Max. Discharge Current | 240A | |
Weight | 2.84Kg | |
Operating Temperature | Charge | 0~45℃ |
Discharge | -20~60℃ | |
Storage Temperature | ≤1 month | -20~45℃ |
≥6 months | -20~35℃ | |
CATL LFP48H4G6 120Ah Battery Cell is one of most popular LiFePO4 Battery cell with capacity of 120AH.There are hundreds of batteries in stock.
