| Nominal Capacity: | 176Ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | 0.1~0.3mΩ | Operating Votage: | 2.5V~3.65V |
| Dimension: | 174×53.7x207mm | Battery Weight: |

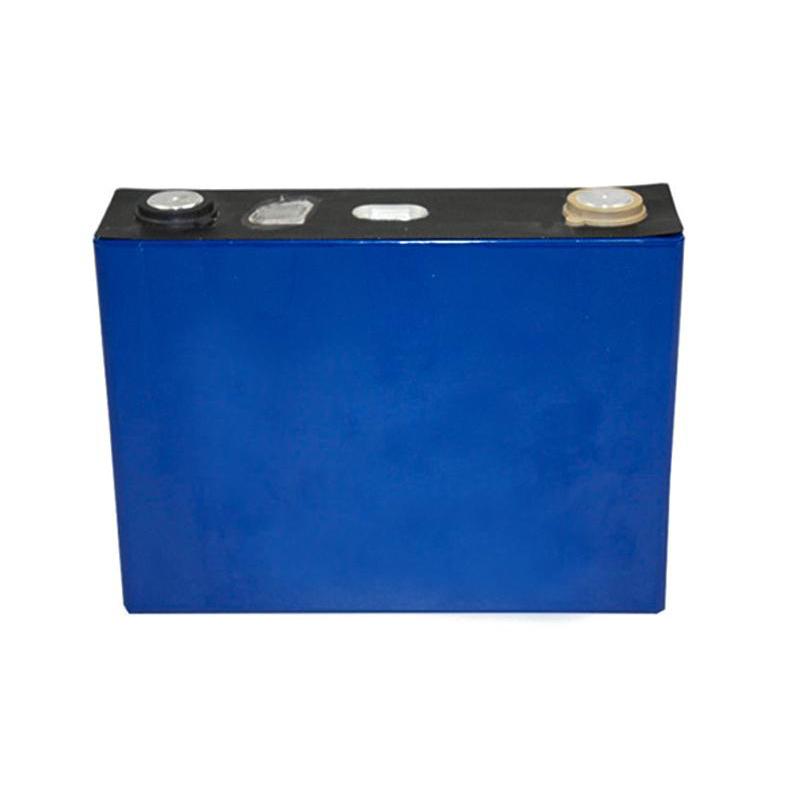

CALB L173F176 3.2V 176Ah LiFePO4 Lithium ion Battery
Features
-Qualified for RoHS & CCC winth high safely
-More than 2000 cycles under the designed working condition
-Anti-explosion safely valve applied
-Ceramic membrane technology applied to enhance safety
-High energy density:144wh/kg
-High charge/discharge rates
CALB (China Aviation Lithium Battery) is a well known and respected manufactor of LiFePO4 cells,We can now supply three new models that were produced by CALB,
They are both high quality prismatic lithium ion batteries have the shell of aluminum,they have high-rate charging and discharging performance,high energy density, long cycle life and a wide working temperature range.CALB 68Ah 80Ah 176Ah LiFePO4 Lithium Battery can be widely used in RV/solar system/ yacht/golf carts/ energy storage and solar system.
Parameters
No | Item | Parameter Specification | |
1 | Battery Module | L173F176 | |
2 | Nominal Capacity | 176Ah | |
3 | Minimum Capacity | 176Ah | |
4 | Nominal Voltage | 3.2 V | |
5 | Internal Resistance | 0.1~0.3mΩ | |
6 | Charging(CC-CV) | Maximum Charging Current | 176A |
Charging Upper Limit Voltage | 3.65V | ||
7 | Discharging | Maximum Discharging Current | 352A |
Discharging Cut-off Voltage | 2.5V | ||
8 | Charging Time | Standard Charging | 4h |
Quick-acting Charging | 1h | ||
9 | Recommended SOC Usage Windom | SOC: 10%~90% | |
10 | Operation Thermal Ambient | Charging | -5°C ~ 55°C |
Discharging | -30°C ~ 60°C | ||
11 | Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 45°C |
Long term (within 1 year) | -20°C ~ 25°C | ||
12 | Storage Humidity | < 70% | |
13 | Battery Weight | 3.9±0.3kg | |
14 | Battery Dimension | 174×53.7x207mm | |
15 | Shell Material | Aluminium | |
