| Nominal Capacity: | 100Ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | 0.2~0.5mΩ | Operating Votage: | 2.5V~3.65V |

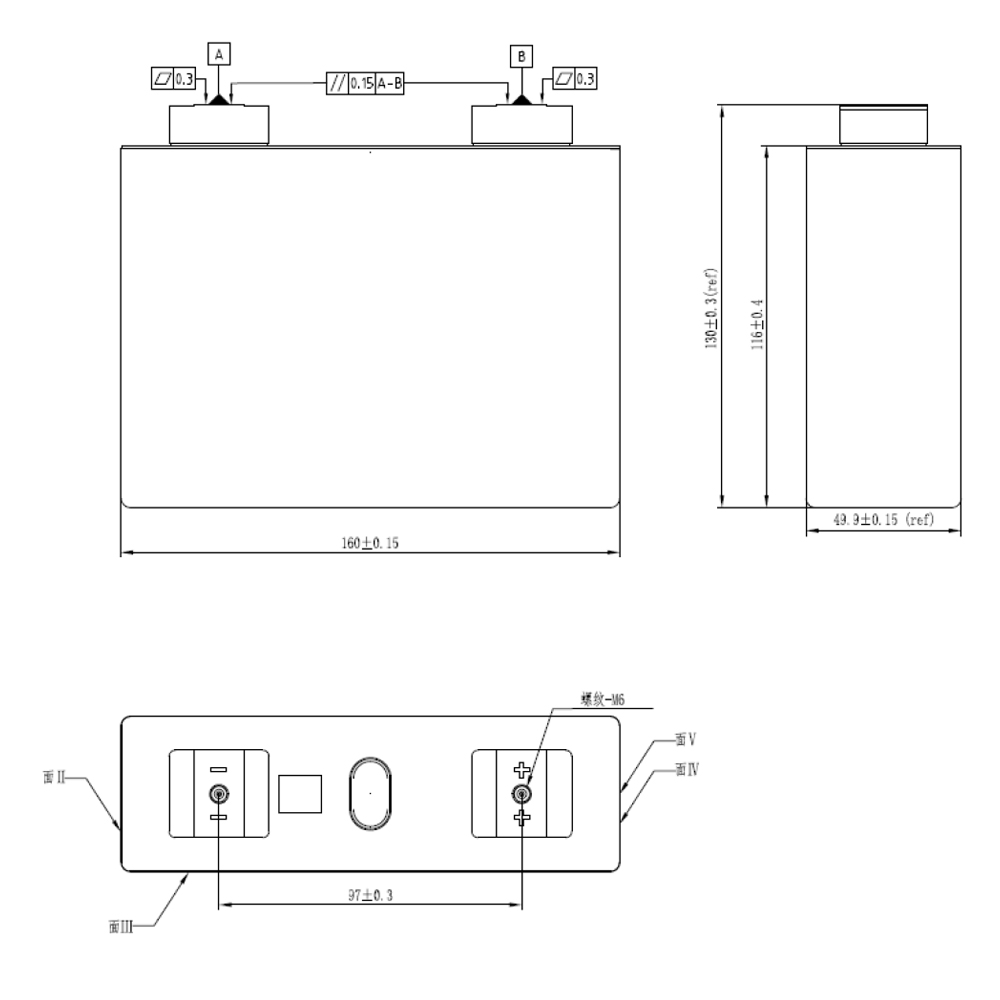

| Dimension: | 160*49.9*129.5mm | Battery Weight: | 2.0±0.1kg |

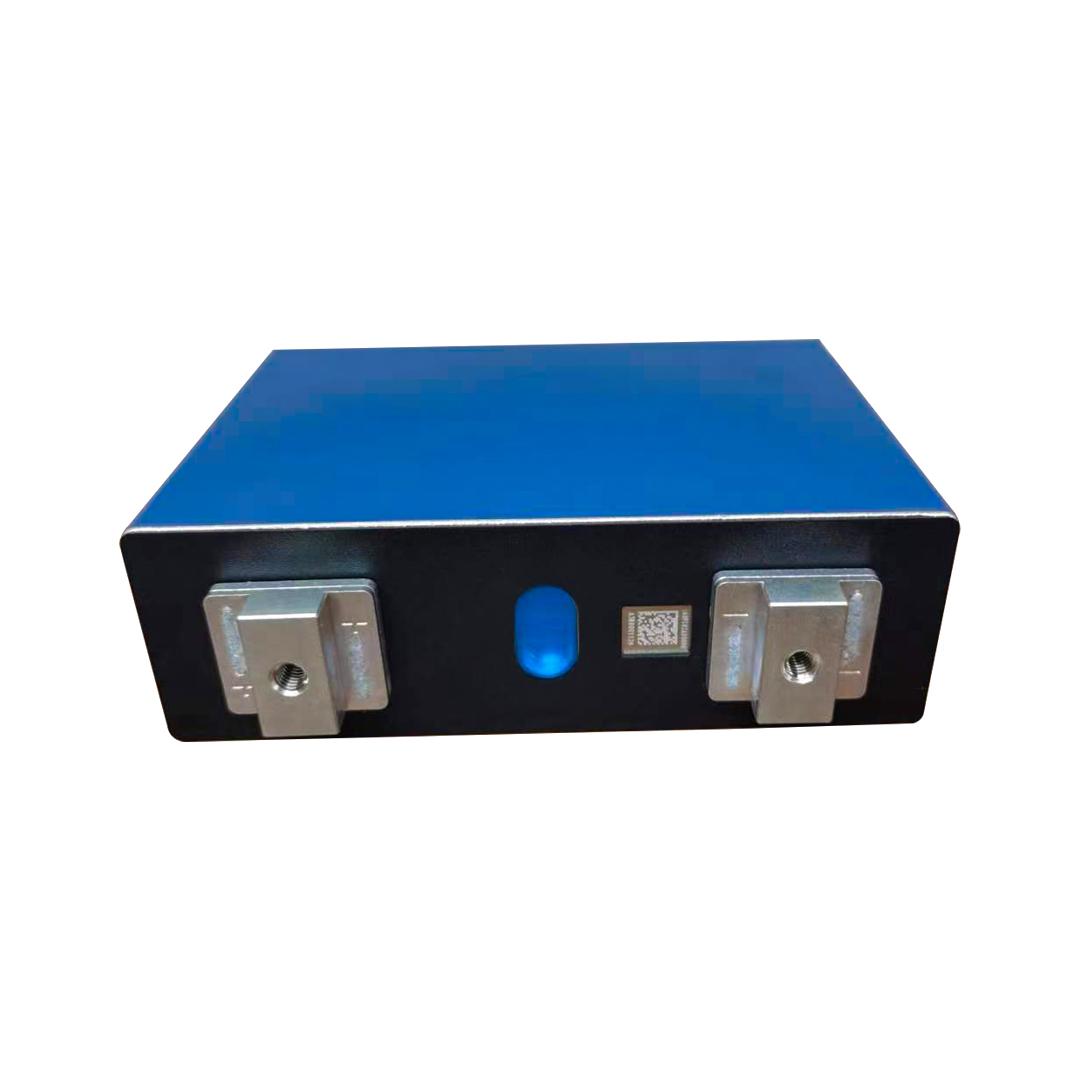

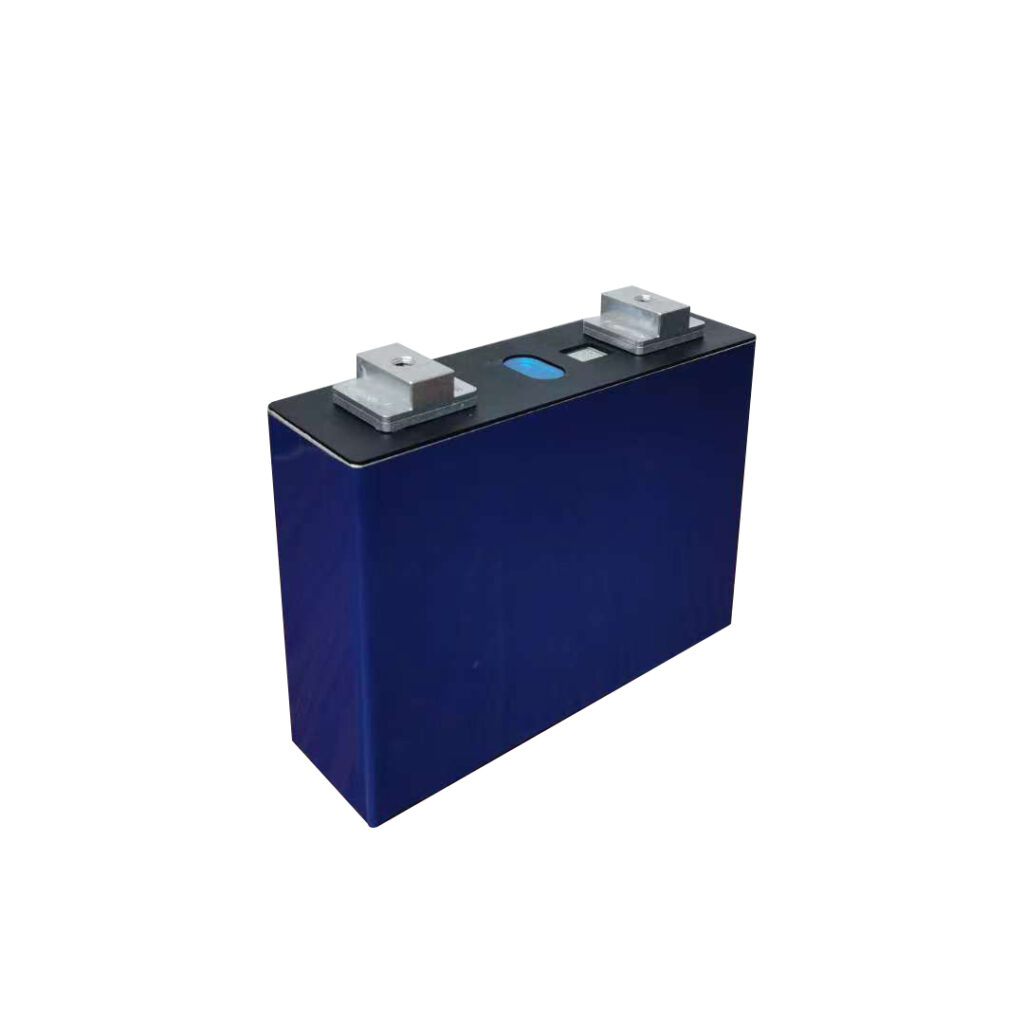

CALB L160F100 3.2V 100Ah LiFePO4 Prismatic Battery Cells
-Qualified for RoHS & CCC winth high safely
-More than 3500 cycles under the designed working condition
-Anti-explosion safely valve applied
-Ceramic membrane technology applied to enhance safety
-High energy density:160wh/kg
-High charge/discharge rates
Brand new CALB prismatic LiFePO4 battery cell with Aluminum shell, supports welded or bolted connections, long cycle life, high energy density and wide operating temperature range, suitable for energy storage, solar system, EV, RV, yacht, etc.
Parameters
Items | Parameter | |
Module | L160F100B | |
Nominal Voltage | 3.2V | |
Nominal Capacity | 100Ah | |
Dimension | 160*49.9*129.5mm | |
Internal Resistance | 0.2~0.5mΩ | |
Charge | Charge Voltage | 3.65V |
End Of Discharge Voltage | 2.5V | |
Standard Charge Current | 50A(0.5C) | |
Max. Charge Current | 100A(1C) | |
Discharge | Standard Discharge Current | 50A(0.5C) |
Max. Continuous Discharge | 100A(1C) | |
Max. Pulse Discharge | 300A(3C) | |
Operating | Charging Temperature | -5~60°C |
Discharging Temperature | -20~60°C | |
Weight | 2.0±0.1kg | |
Shell Material | Aluminium | |
