| Nominal Capacity: | 400Ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | 0.1~0.5mΩ | Operating Votage: | 2.5V~3.65V |
| Dimension: | 450*71*287mm | Battery Weight: | 14kg±0.15kg |
Product Description

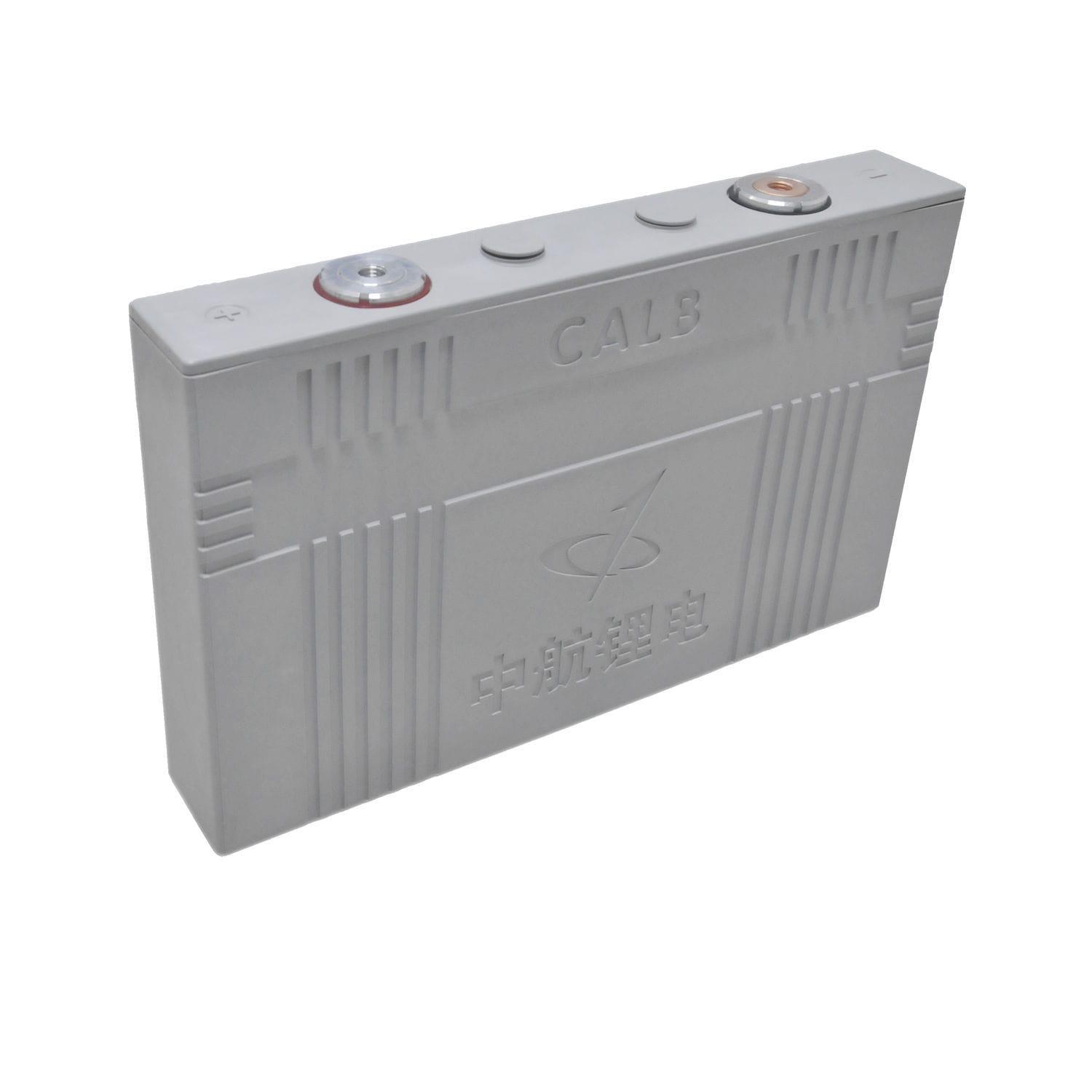

CALB CA400 3.2V 400Ah LiFePO4 Lihtium ion Battery
Features
-UN38.3, MSDS, RoHS, CE certification
-Long cycle Life
-Using ceramic membrane for battery safety
-Flame-resistant shell
-Suitable for large-scale back-up power
-High Energy Density
-Overcharge/OverDischarge, Shor Circuit,
Nail Pen-etration, Cushing and Drop Test.
Please read USER MANUAL before use.
Parameters
Model | CALB-CA400 | |
Nominal Capacity | 400Ah | |

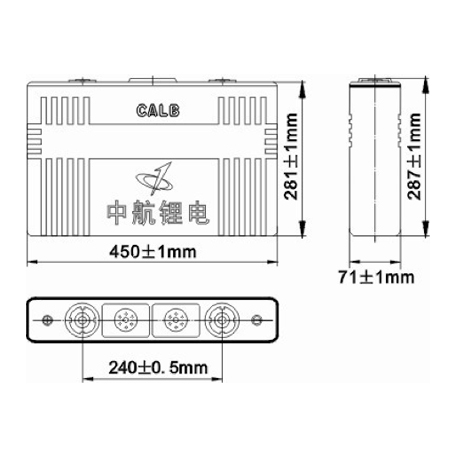

Size | 450*71*287mm | |
Operation Voltage | Charge | 3.65V |
Discharge | 2.5V | |
Internal Resistance | 0.1~0.5mΩ | |
Charging Time | Standard Charge | ~4h |
Fast Charge | ~1h | |
Standard Charge/Discharge | 100A(0.5CA) | |
Shell Material | Plastic | |
Operating Temperature | Charge | 0~45℃ |
Discharge | -20~55℃ | |
Recommended SOC Window | SOC:10%~90% | |
Weight | 14kg±0.15kg | |
