Product Description
Product Name | Solar laptop power bank 50000mah |
Capacity | 46800mah / 60300mah |
Size | 230*161*26mm |
N.W | About 1.7KG |
Battery Type | 18650 lithium batteries |
Input | Mic USB：5V/2.1A（MAX） NB：14-20V /3A（MAX）EC5：12V/60W(MAX) |
Output | USB 1：5V/2.1A EC5:12V/10A USB 2：QC2.0 5V/2.1A 9V/2A 12V/1.5A(MAX) NB：12V/5A 15V/4.3A 16.5V/3.9A 19V/3.4A 20V/3.2A 24V/2.7A (Continue working about 50W) |
Circuit protection | Over voltage protection, over current protection, under-voltage protection, over temperature protection, short circuit protection |
Conversion efficiency | 5V/2A≈93% 9V/2A≈95% 12V/2A≈97% |
Full Charging time(input) | USB charging：need fast charge adapter 46800mAh(173WH) about 25 hours 60300mAh(223WH) about 32 hours NB port car charger charging 46800mAh(173WH) about 7 hours 60300mAh(223WH) about 9 hours |
Cycle times | ≥500times |
Charge temperature range | 0℃ ~+50℃ |
Discharge temperature range | -10℃~+65℃ |
Storage temperature range | 0℃ ~45℃,within 30 days |
Long-term Storage temperature range | 0℃ ~40℃,within 180 days |
Storage humidity | 45% ~85%RH |
Long-term storage time | Advise charging it if it is not used within 90 days |
Certificates | CE FCC ROHS MSDS UN38.3 |
Warranty | 12 months |
Support Solar panel charge | Yes , advise use 50W solar panel |
With LCD display | Yes , can show the capacity %; Working power (W) ; Voltage etc |
Product performance description
产品性能介绍说明
P180 Optional capacity : 46800mah / 60300mah
Which can support DC output 12v 15v 16.5v 19v 20v 24v devices ; 5V devices charging , also can support solar panel input charge .
2*USB ports
1Micro USB port
1 DC port support input and output
1EC5 port support input and output

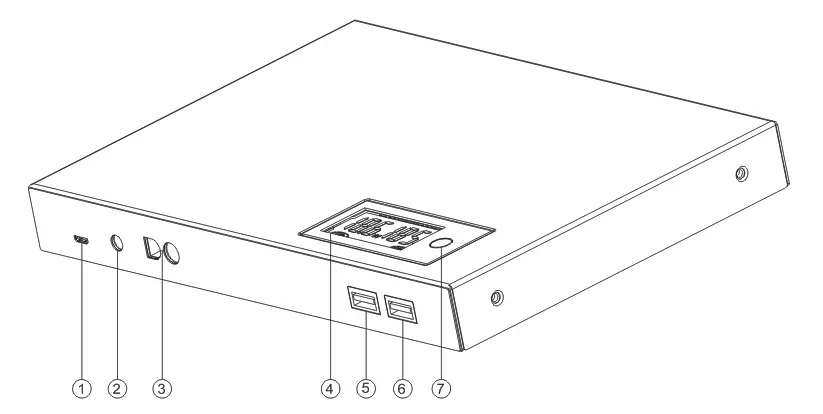

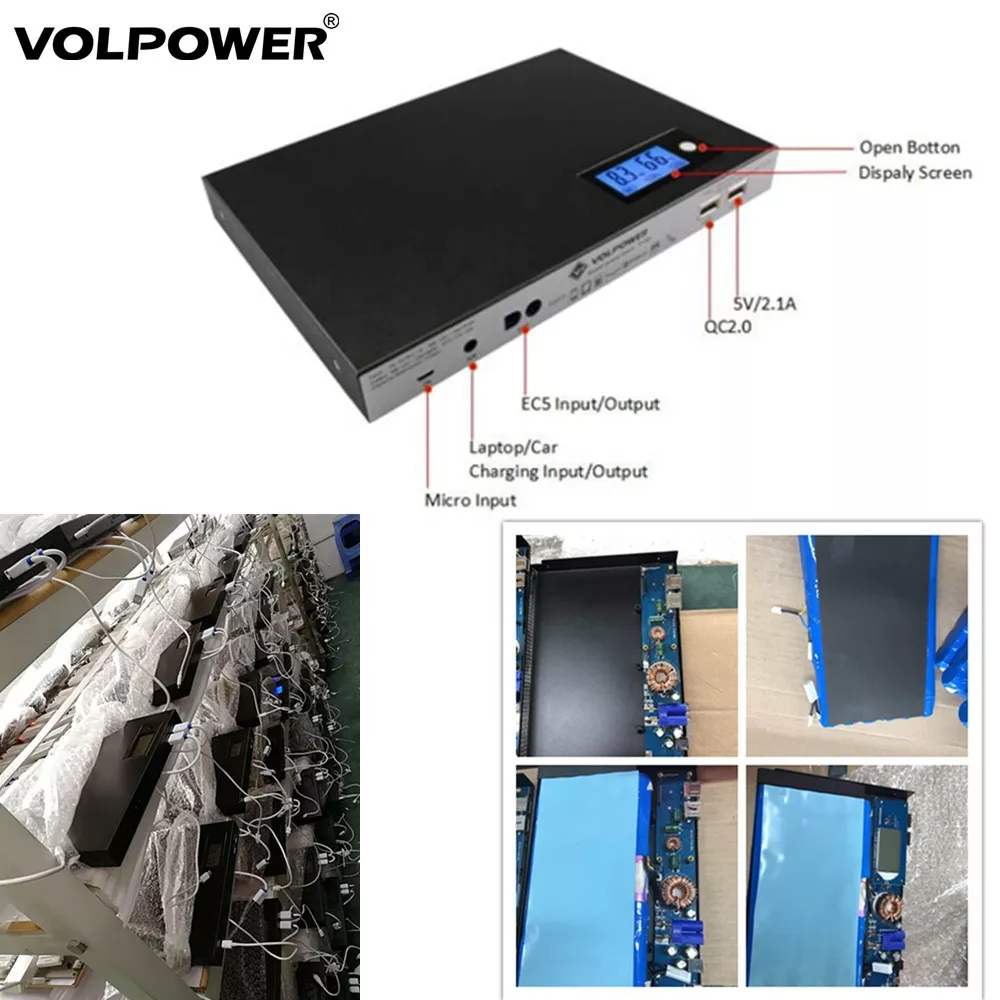

P180 Ports instruction :
①IN port: 5V/2.1A Input port
②NB port: charge notebook,car charge input/output car start port.
③EC5 port :12V/50W Solar panel input ,12V/10A output port
④Display screen:Display voltage, battery capacity percentage,etc.
⑤USB 1 port: QC2.0 quick charging output
⑥USB 2 port: 5V/2.1A output
⑦Key: Voltage selection, on/off key
②NB port: charge notebook,car charge input/output car start port.
③EC5 port :12V/50W Solar panel input ,12V/10A output port
④Display screen:Display voltage, battery capacity percentage,etc.
⑤USB 1 port: QC2.0 quick charging output
⑥USB 2 port: 5V/2.1A output
⑦Key: Voltage selection, on/off key

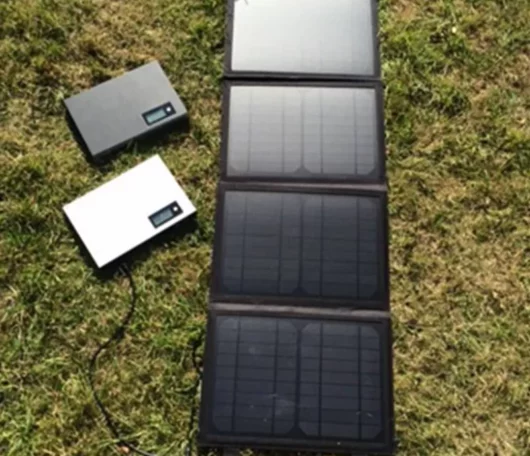

P180 support Solar panel charge
Input :13v-20V
Advise use 50W solar panel charge it
Product performance description
产品性能介绍说明
P180 Optional capacity : 46800mah / 60300mah
Which can support DC output 12v 15v 16.5v 19v 20v 24v devices ; 5V devices charging , also can support solar panel input charge .
2*USB ports
1Micro USB port
1 DC port support input and output
1EC5 port support input and output
P180 Ports instruction :
①IN port: 5V/2.1A Input port
②NB port: charge notebook,car charge input/output car start port.
③EC5 port :12V/50W Solar panel input ,12V/10A output port
④Display screen:Display voltage, battery capacity percentage,etc.
⑤USB 1 port: QC2.0 quick charging output
⑥USB 2 port: 5V/2.1A output
⑦Key: Voltage selection, on/off key
②NB port: charge notebook,car charge input/output car start port.
③EC5 port :12V/50W Solar panel input ,12V/10A output port
④Display screen:Display voltage, battery capacity percentage,etc.
⑤USB 1 port: QC2.0 quick charging output
⑥USB 2 port: 5V/2.1A output
⑦Key: Voltage selection, on/off key
-
P180 support Solar panel charge
Input :13v-20V
Advise use 50W solar panel charge it
