Description

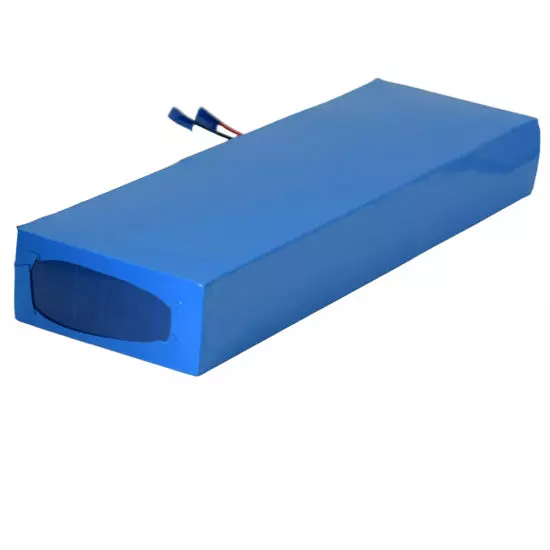

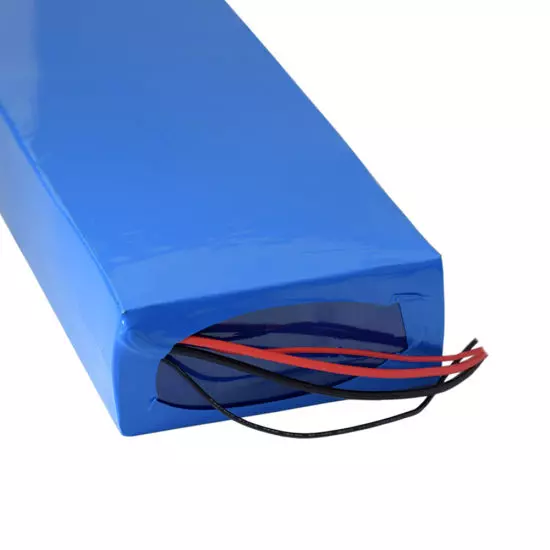

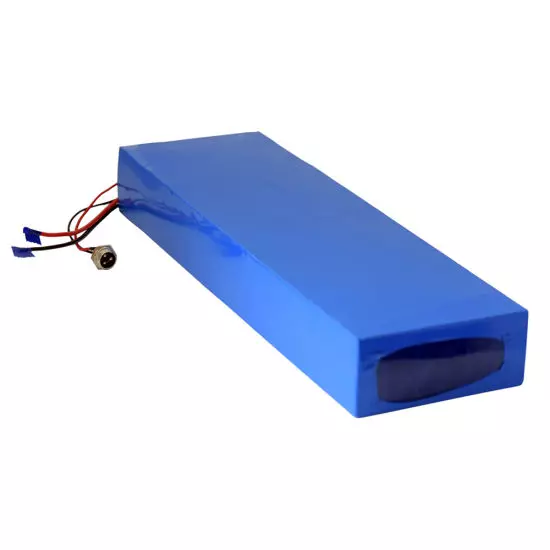

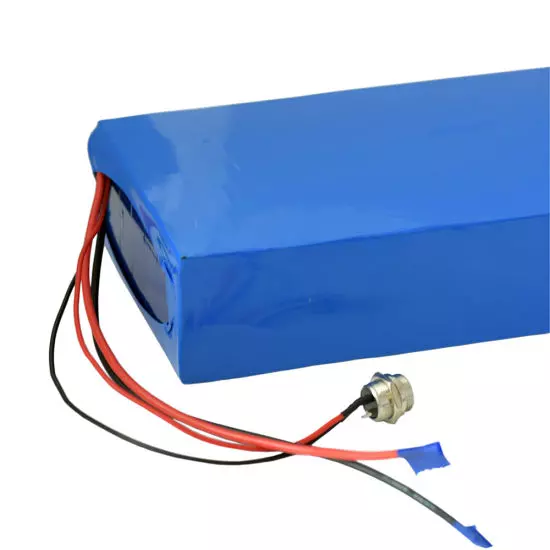

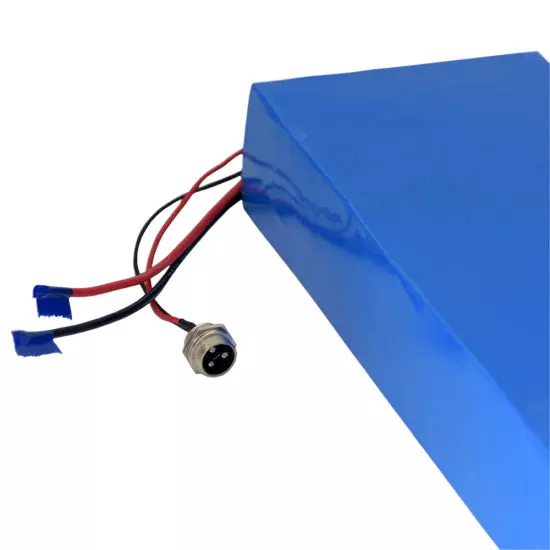

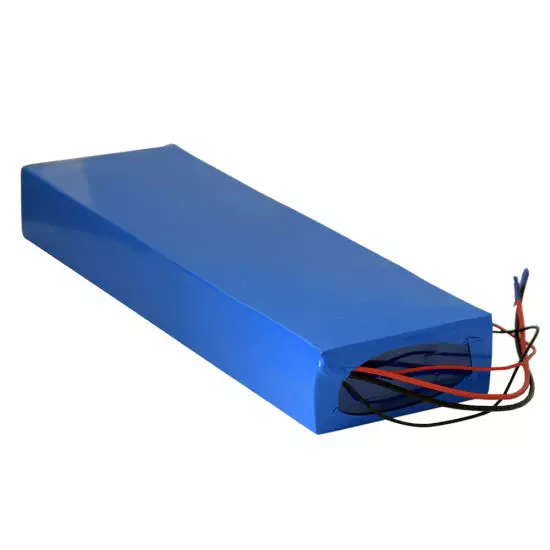

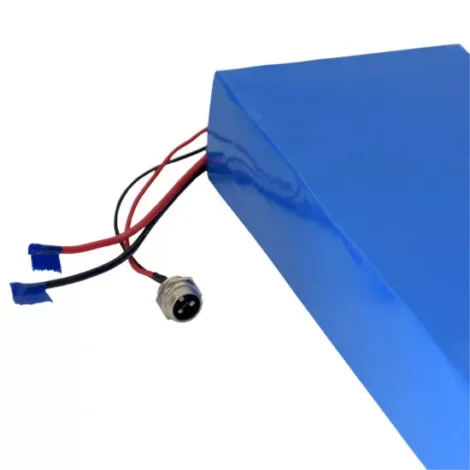

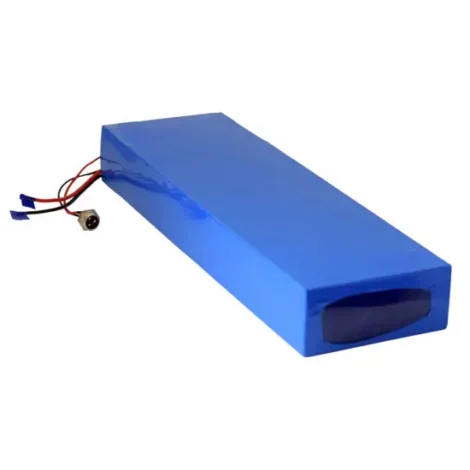

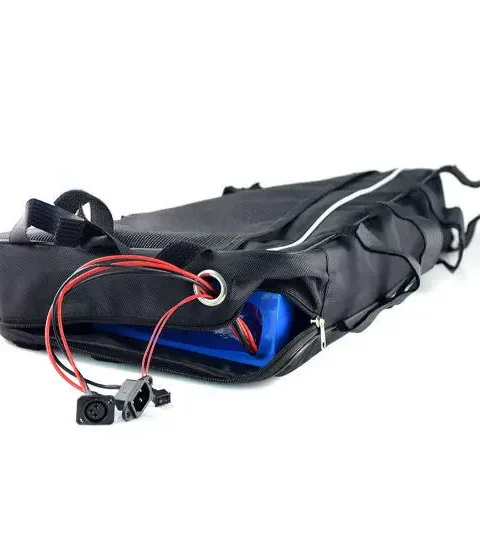

59.2V 24Ah 18650 rechargeable lithium ion battery pack for electric scootor

Specification:

ModelDL-5924
Nominal voltage59.2V
Charge voltage67.2V
Nominal capacity24Ah
Battery typeLG 3000mAh 18650 battery cell
Battery configation 16S8P
Dimension435*140*60mm
Net weight6.5KG
Continuous discharge current20A
Max discharge current30-40A
Lifecycle500 times
BMS functionover-charge,over-discharge,over-current,short circuit
Standard charge current5A
Discharge cut off voltage44V
Charge time6-7 hours with 67.2V 4A charger
Self-discharge rate≤3% per Month

Safety performance:

ItemTest nameResult
1over-chargeNo fire,no explosion
2over-dischargeNo fire,no explosion
3short circuitNo fire,no explosion
4Drop testNo fire,no explosion,no leakage
5Hot ovenNo fire,no explosion
6CrushNo fire,no explosion
7Needle punctureNo fire,no explosion

Features:

1.Long life, large capacity and good shock resistance

2.Low self-discharge and good discharge performance at low temperature

3.Strong charging acceptance and quick-charging capability

4.Strong over-discharge resistance and charge retention

5.Maintenance-free and no acid or water for maintenance in usage

6.Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

10.Most safe no explosion no fire
