| Nominal Capacity: | 100Ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 48V | |
| Dimension: | 440*400*177mm | Battery Weight: | Around 46.3kg |
Product Description

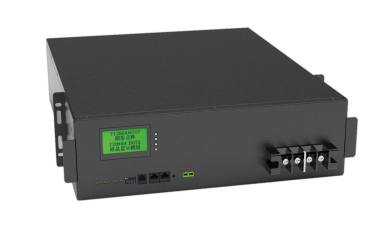

48V100AH communication base station, data base station lithium battery (3U) Lifepo4 battery pack
Dimension：
No | Item | Parameter Specification |
1 | Nominal Capacity | 100Ah |
2 | Nominal Voltage | 48V |
3 | Maximum charging current | 1C |
4 | Continuous maximum output current | 1C |
5 | Single cell voltage | 3.2V |
6 | Single battery capacity | 50Ah |
7 | Number of cells | 30pcs |
8 | Cycle life | ≥3000 |
9 | System undervoltage protection point | 40.5V |
10 | Sleeping cell voltage | 3.15V |
11 | Charge overcurrent primary protection | 110A |
12 | Discharge overcurrent primary protection | 110A |
13 | Size | 440*400*177mm |
14 | Weight | Around 46.3kg |
