48V Triangle Shape Battery Packs for Electric Bike

Port:Shenzhen, China

Production Capacity:3000PCS/Day

Payment Terms:L/C, T/T, Western Union, Paypal

Model NO.:FB-T48

Rated Capacity:20ah

Standard Voltage:48V

Usage:E-Bike/Scooter/Motor

Electrolyte:Li-ion

Battery Type:18650 Li-ion Battery Cells

Capacity:10 – 20ah

Nominal Voltage:48volts

Certification:Ce/Rosh/UL/MSDS/Un38.3

Cycle Life:800 Times

Warranty:12 Months

Apply:Electric Bike

Weight:4 Kg

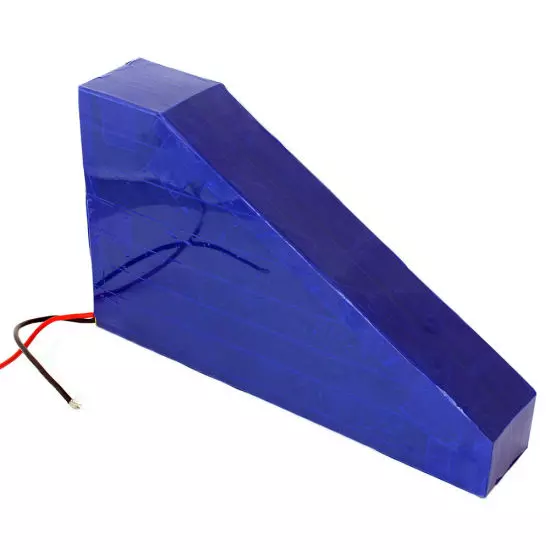

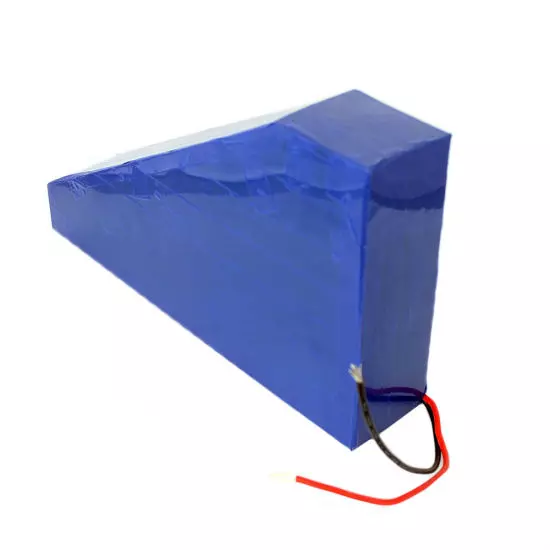

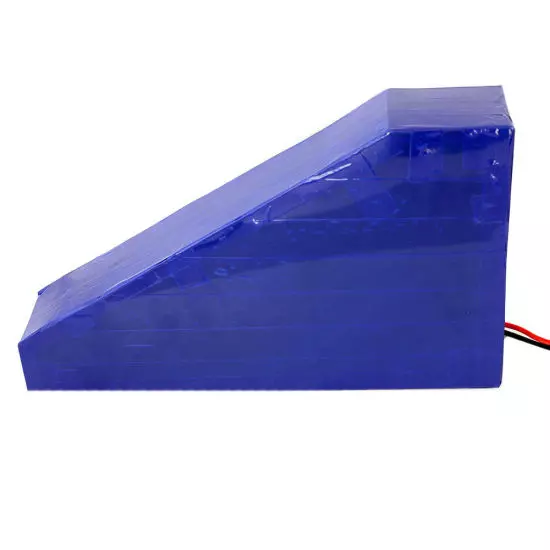

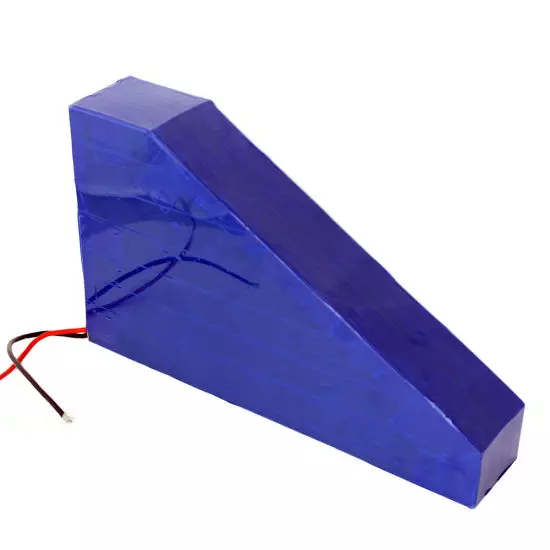

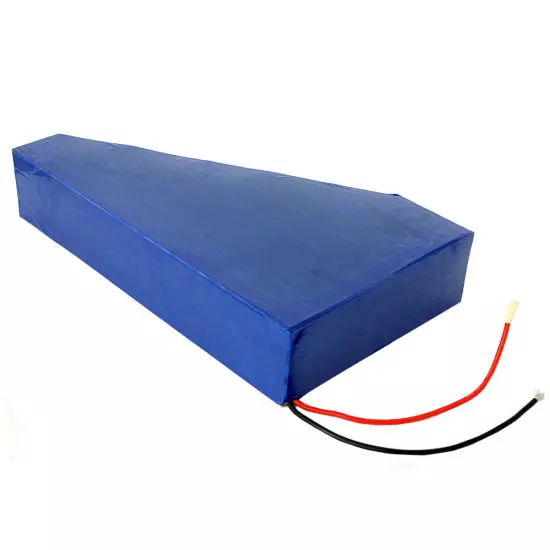

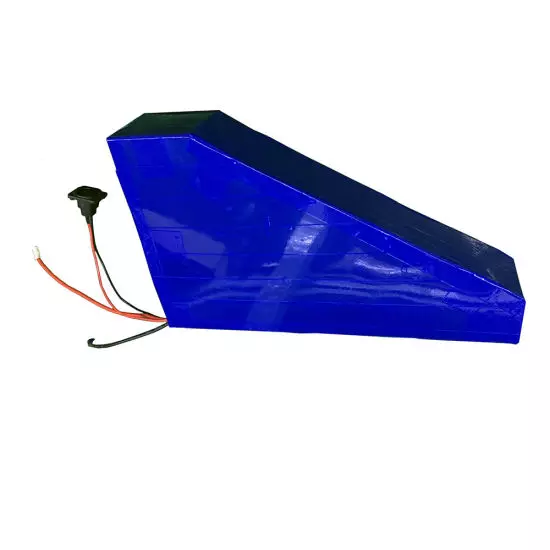

48V triangle shape battery packs for electric bike

Product specification

1. Basic characteristics
Weight		5.5kg
Size		3452057531375*48mm
Model		FB-T48
PCB Safety Function	Cell balancing, Over-discharge, Over current protection, Over-charge, Temperature protection, Secondary protection.
working temperature	Charge temperature	0°C ~ 45°C
working temperature	Discharge temperature	-10°C ~ 60°C
2. Technical Data
Rated Voltage		48V
Rated Capacity		20.3Ah
Charge & Discharge	Way of charge	CC/CV(Constant Current / Constant Voltage)
	Standard Charge Current	4A or customized
	Max Charge Current	10A or customized
	Max Charge Voltage	54.6V
	Continuous Discharge Current	20A or customized
	Peak Discharge Current	40A or customized
	Discharge Cut-off Voltage	39V

Our products are customized, so the main data can be changed by customer’s requirements.

1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
