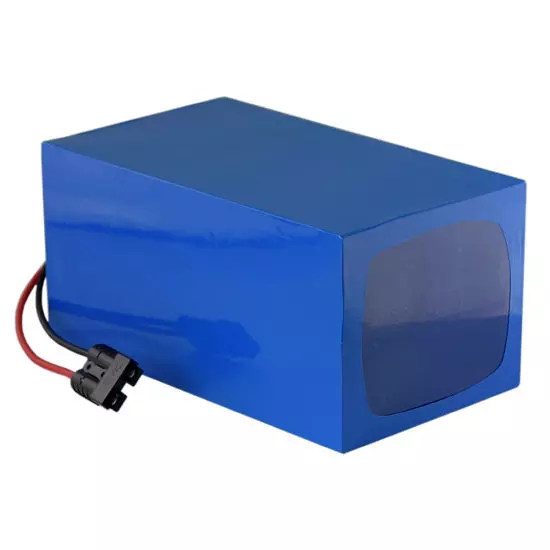

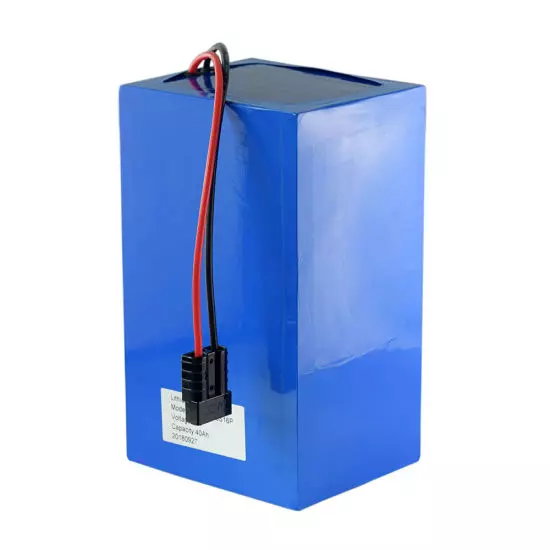

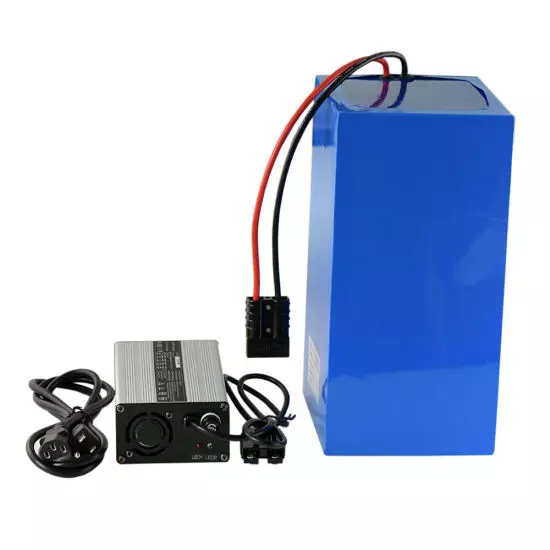

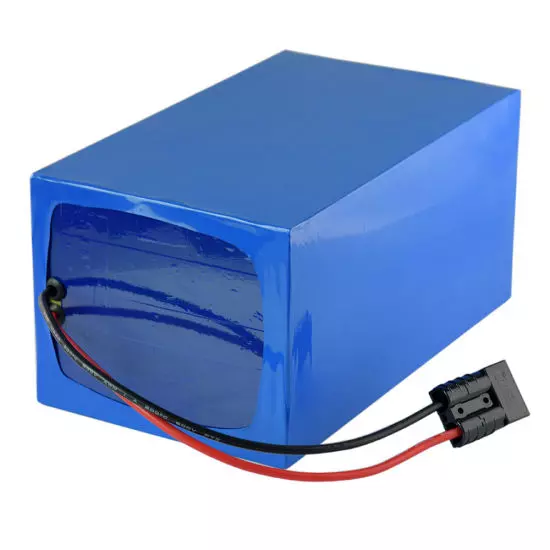

48V 40ah Lithium Ion Battery Pack

Port:Shenzhen, China

Production Capacity:10, 000 Packs/Week

Payment Terms:L/C, T/T, Paypal, Money Gram

Model NO.:FB-4840/13S16P

Rated Capacity:40ah

Standard Voltage:48V

Usage:Electric Bike,Electric Scootor

Electrolyte:Li-ion

Product Name:48V 40ah Lithium Ion Battery Pack

Battery Type:18650 Lithium Battery Cell

Charge Voltage:54.6V

Standard Charge Current:8A

Continuous Discharge Current:35A

Battery Configation:13s16p

Discharge Cut off Voltage:36.4V

Net Weight:10.82kg

48V 40ah Lithium Ion Battery Pack

Product parameters:

ModelFB-4840/13S16P
Nominal voltage48V
Charge voltage54.6V
Nominal capacity40Ah
Standard charge current8A
Continuous discharge current30A
Momentary discharge current90A
Battery type18650 lithium battery cell
Battery configation13S16P
Net weight10.82KG
Dimension280*170*140mm
ConnectorAnderson 50A power connector
BMS protectionover-charge,over-discharge,over-current,short circuit
Warranty12 months
Lifecycle500 times
Charge tempearature0°C ~45°C
Discharge temperature-20°C ~60°C
Charge methodCC/CV
Discharge cut off voltage36.4V
Fit motor1000W,1200W


Advantages:

•  High operation voltage.

•   High energy density.

•   Long cycle life, more than 500 charge/discharge cycles ( 80% capacity remained ).

•   Low self-discharge, less than 3% monthly.

•   Wide temperature range, operation from :-20°C~+60°C

•   Be charged & discharged at anytime because of non-memory.

•  Environmentally friendly

•   High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on.

Main applications:

1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Portable equipment
