| Nominal Capacity: | 40ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | ≤0.8mΩ | Operating Votage: | 2.5~3.65V |
| Dimension: | 186x116x46(mm) | Battery Weight: | 1.5Kg±0.1Kg |

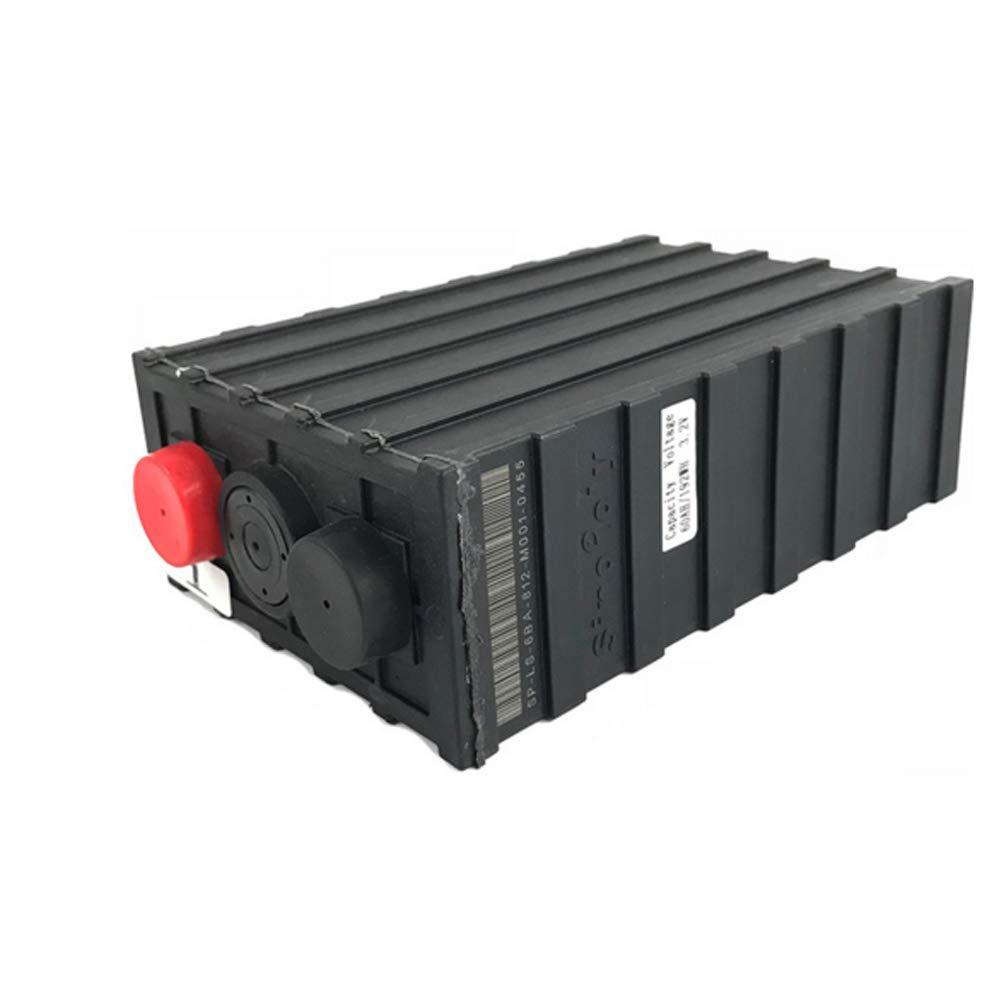

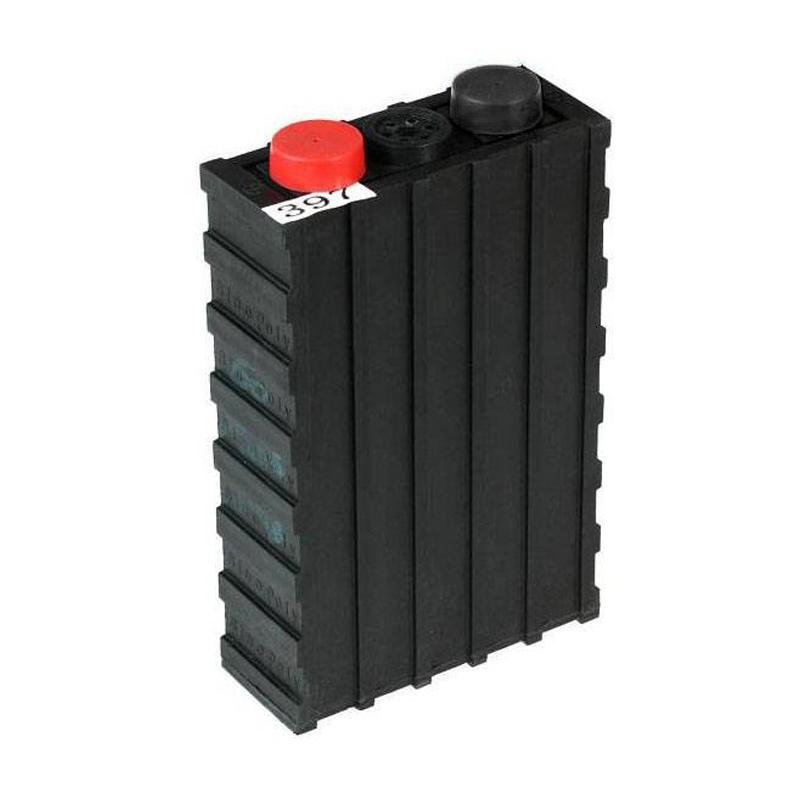

40Ah Sinopoly Battery:
Sinopoly Battery is a high power LiFePO4 Battery produced by Sinopoly Battery Limited.there are 2 facoties located in Liaoyang and Tianjian. Liaoyang factory mainly produce 40Ah, 60Ah and 200Ah Sinopoly battery cells, Tianjin Factory mainly produce 100AH Battery.
Sinopoly battery in business of research and production of 40AH,60AH,100AH and 200AH large capacity LiFePO4 battery cells, design and integration of electric energy storage systems, technical consultation and services. Sinopoly batteries are widely used in transportation, power, industrial, communication and other fields. The group has world-class lithium battery production bases, institute for technology innovation and center of engineering and technology. Sinopoly has obtained more than 70 patents, various quality management system certifications (such as ISO9001, ISO14001, TS16949) and product quality certifications (such as PONY, UN38.3, ROHS, CE, UL, QC / T743-2006).Sinopoly battery are popular in United Kingdom, Germany, Italy, United States, Australia, New Zealand, Malaysia and other international markets.With big investment in research in lithium technology, Sinopoly become a top leader in LiFePO4 battery industry and pioneer of innovator.
Specification:
Item | specification | |
Product Model | SP-LFP-40AHA(A) | |
Nominal Capacity | 40Ah | |
Nominal Voltage | 3.2V | |
Weight | 1.5Kg±0.1Kg | |
Internal Impedance | ≤0.8mΩ | |
Cycle Life | ≥2000Times | |
Self-discharge rate | ≤5% | |

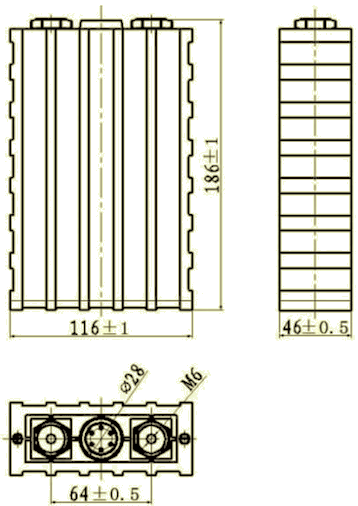

Dimension | Height | 186±1mm |
Width | 116±1mm | |
Thickness | 46±0.5mm | |
Charge | Standard Current | 13A |
Max. Current | 80A | |
Limited Voltage | 3.65V | |
Discharge | Cut-off Current | 0.8A |
Standard Current | 13A | |
Max. Current | 120A | |
Cut-off Voltage | 2.5V | |
Operation Temperature | Charge | 0℃~45℃ |
Discharge | -20℃~55℃ | |
Storage Temperature | -10℃~45℃ | |
Storage Humidity | 25%~85% | |
